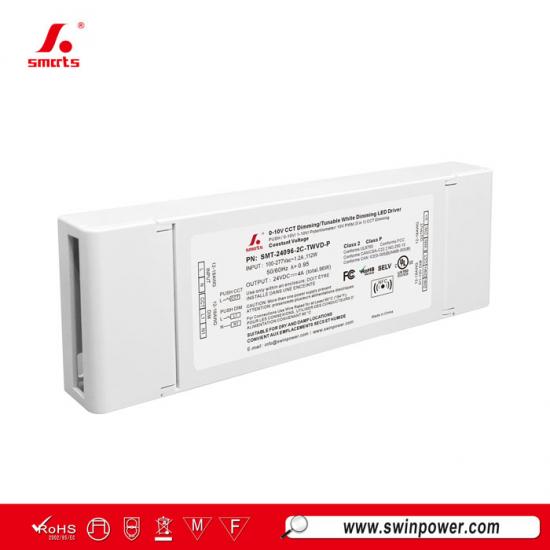

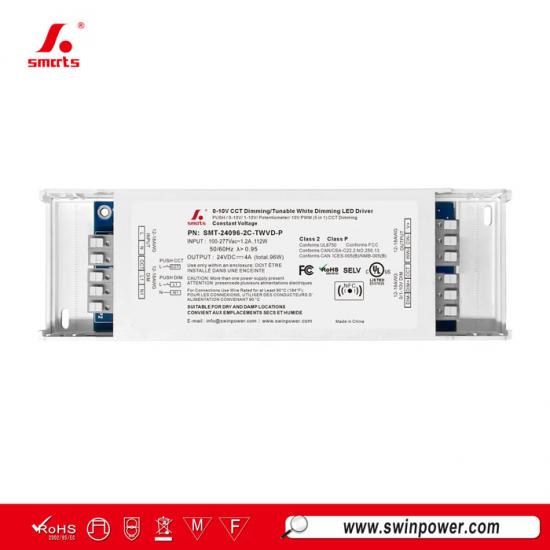

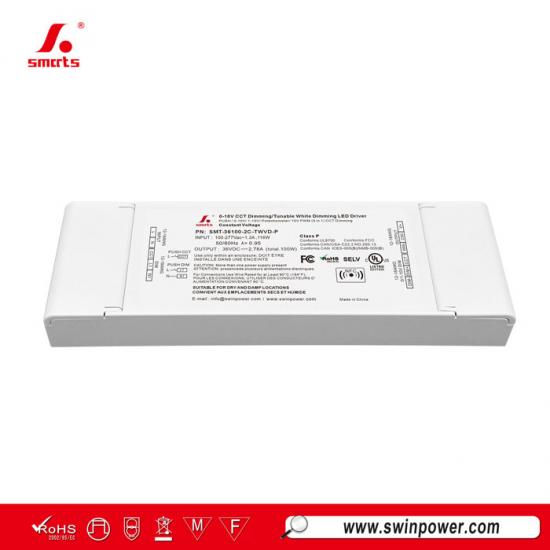

24v 96W constant Dual 0-10V Signal voltage dimmable led driver with pwm dimming
Smartspower's new 0-10V dimmable LED driver features a dual-signal design. It has a built-in NFC smart programming module and allows for fine-tuning of the output voltage. The dimming range is smooth and stable from 0-100% without flickering. It complies with global safety lighting regulations.
Specification
| Model | SMT-24096-2C-TWVD-P | SMT-48096-2C-TWVD-P | |
| Certificate | UL / cUL / FCC / Class P / Class 2 / SELV / ROHS / REACH | ||
| Output | Rated Voltage | 24V | 48V |
| DC Voltage | 24-26V adjust by NFC | 48-50V adjust by NFC | |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ≤0.5% | ||
| Rated current | 4.0A | 2A | |
| Rated power | 96W | ||
| Load Regulation | ≤1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 50 / 60Hz | ||
| Power Factor (Typ.) @ full load | >0.95 | ||
| THD(Typ.) @ full load | ≤15% | ||
| Efficiency @ full load | 88%@120VAC 89%@230VAC 90%@277VAC | ||
| AC Current (Max.) | 1.2A | ||
| Inrush Current (Typ.) | 28A, 320us@50% 120VAC 90A, 76us@50% 230VAC 58A, 260us@50% 277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Load | 105%~120% Hiccup mode,recovers automatically after fault condition is removed. | ||
| Over temperature | Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 -90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes | ||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No. 250.13 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | ||
| EMC Immunity | FCC/ICES do not request this test. | ||
| EMC Emission | FCC CFR Title 47 Part 15 Subpart B:2020; ICES-005 Issue 5 | ||
| Others | Net Weight | 0.45KG | |
| Dimension | 220*70.5*26.5mm(L*W*H) | ||
| Packing | 355*250*170mm 10pcs/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||
| 2. Under low input voltage, derating output is required to ensure a long life. | |||
|
|
 |
 |
 |
Mechanical Specification
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 10 |
| 13A | 13 | |
| 16A | 16 | |
| 20A | 20 | |
| 25A | 25 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 7 |
| 13A | 10 | |
| 16A | 12 | |
| 20A | 15 | |
| 25A | 19 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic
curve.
| American wire gauge | |
| SP9 | |
| Input wires | DG202 terminals 5P |
| Output wires | DG202 terminals 6P |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Dimming Connecting Diagram
■ Derating Curve (output load vsTEMP.):
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver’s life.
NFC function:
 |
 |
 |
 |
Adjust output voltage slightly by NFC:
The output voltage can be read and written by a mobile with ProNFC APP or NFC handheld device (NFC read & write device: NFC-RW)
by close to the NFC signal area of the Dimmable LED driver.
| NFC voltage regulation level | ||||||||||
| level 1 | level 2 | level 3 | level 4 | level 5 | level 6 | level 7 | level 8 | level 9 | level 10 | |
| 12V | 12.0V | 12.2V | 12.3V | 12.5V | 12.6V | 12.8V | 13V | 13.1V | 13.3V | 13.5V |
| 24V | 24.0V | 24.2V | 24.4V | 24.7V | 24.9V | 25.1V | 25.3V | 25.6V | 25.8V | 26.0V |
| 48V | 48.0V | 48.2V | 48.4V | 48.7V | 48.9V | 49.1V | 49.3V | 49.6V | 49.8V | 50.0V |
The address can be read and written by a mobile with Set NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the Dimmable LED
driver.
Related Products
|

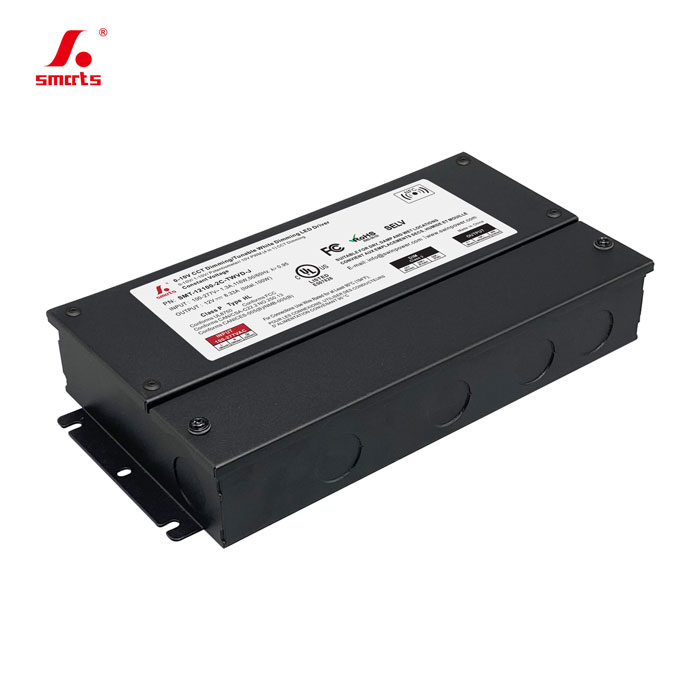

This 96W constant voltage 0-10V dual-signal dimmable LED power supply features an integrated design with a junction box, a metal casing for excellent heat dissipation, and complies with global safety lighting regulations. It comes with an extra-long 7-year warranty.
