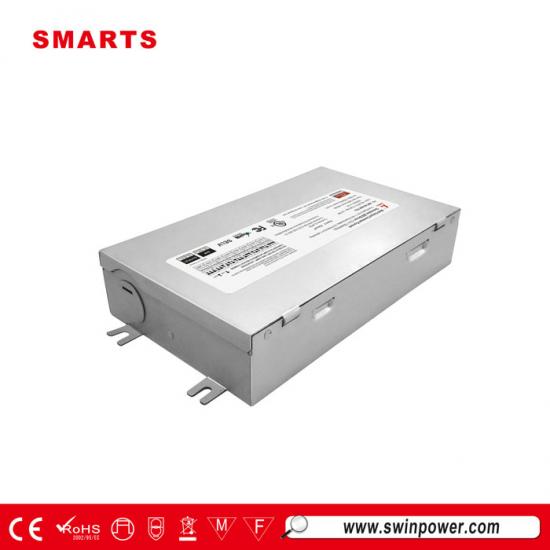

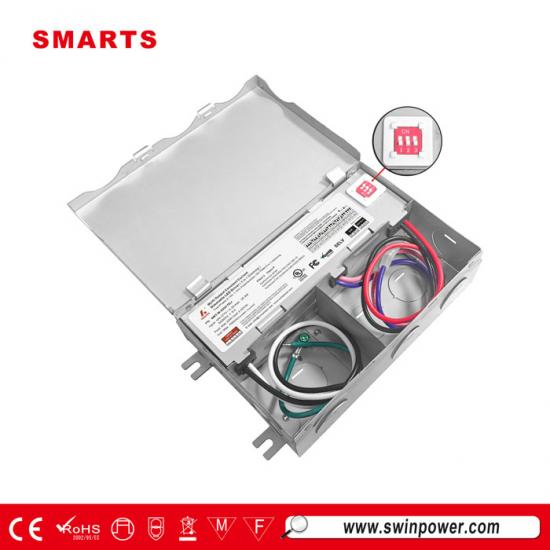

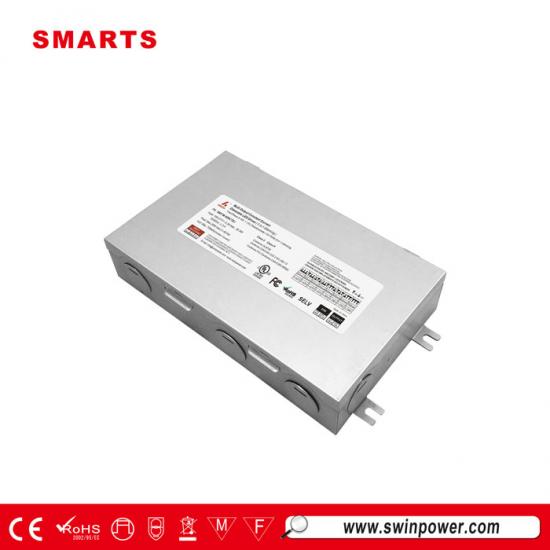

20w 250ma-700ma DIP switch adjustable constant current 5 in 1 dimmable led driver

20w 250ma-700ma DIP switch adjustable constant current 5 in 1 dimmable led driver

Multi-output current Selectable 5 in 1 dimmable 20W LED driver has built-in DIP switch adjustable, adopts PWM output mode, dimming without flicker throughout the whole process, and the dimming range is between 0-100%. It is suitable for home lighting projects in small spaces.

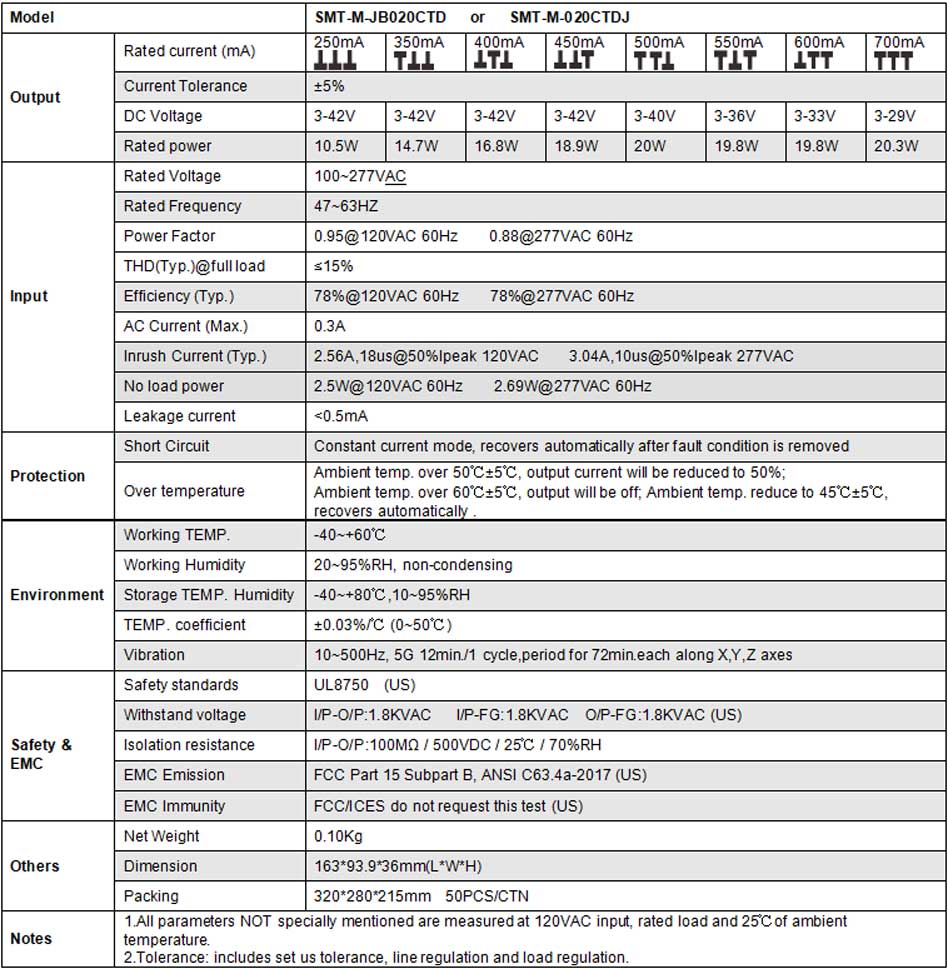

  Specification

  Mechanical Specification

Input terminals "Black" and "White" to connect to AC L and N.

Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)

Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

 Dimming Operation

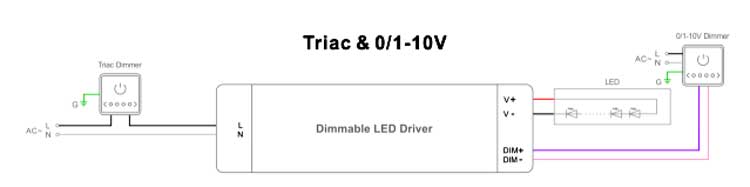

Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;

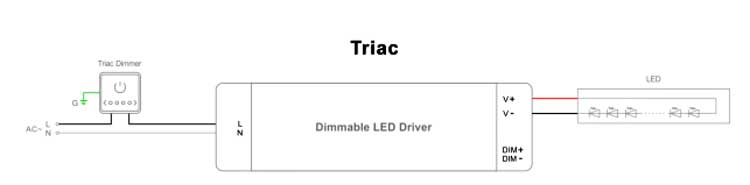

Using one dimming ---TRIAC/Phase cut dimming

1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer or lighting system.

2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.

3. Min. loading is about 10%

4. Please try to use dimmers with power at least 2 times as the output power of the driver.

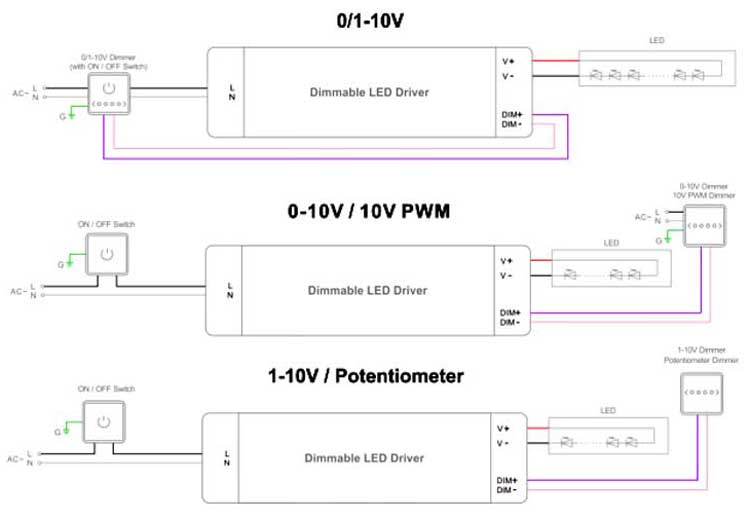

Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
