waterproof 12vdc 150 watt constant voltage dali led drivers
Features
·Output constant Voltage
·Range: 100-130VAC/170-265VAC
·Built-in active PFC function, PF>0.90
·Working Efficiency >88%
·Protections: short circuit/over load/ over current/ over temperature
·Cooling by free air convection
·IP67 design for indoor and outdoor installation .
·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
·Dimming range from 0.1% to 100%
·3 years warranty
·Suitable for intelligent LED lighting
·Compliance to worldwide safety regulations for lighting
·Suitable for dry locations
Specification
Model
SMT-012-150VM
SMT-024-150VM
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Rated current
0 - 12.5A
0 - 6.25A
Rated power
150W
150W
Input
Voltage Range
100-130VAC/170-265VAC
Frequency Range
47 - 63HZ
Power Factor
PF≧0.90/120VAC PF≧0.90/230VAC PF≧0.90/265VAC（Full loading）
Full Load Efficiency(Typ.)
>88%
>88%
AC Current(Max.)
1.72A
0.86A
Leakage current
<0.5mA
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed.
Over Load
≤120%
Over Circuit
≤1.2*Iout
Protection Class:
Ⅰ
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environment
Working TEMP.
-40 - +60℃
Working Humidity
20 - 95%RH,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
Safety & EMC
Safety standards
EN61347-1 EN61347-2-13 IP66
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015,EN61000-3-2 (≥60%load)
EMC Immunity
EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
Others
Weight
1.6Kg
Size
256*78*47mm（L*W*H）
packing
305*295*210mm/10pcs/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load
and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

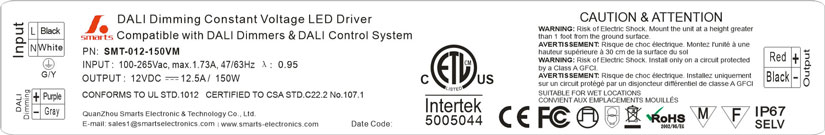

label
Mechanical Specification
Input Rubber cable H05RN-F 3G 1.0mm²,the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
Signal Rubber cable H05RN-F 2*0.75mm²,Blue and White is DA1, DA2 (No polar). Connected to the BUS of the DALI Master.
Output rubber cable :1 group of H05RN-F 2*1.5mm² for SMT-012-150VM; 2 group of 2*1.5mm² for SMT-012-150VM, Red is output ( V+) Positive,Black is output (V-) negative. Connected to LED Lamps.
Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
l To extend their life, please refer to the Derating Curve and derate according to the temperature.
