Black Case Dali dimmable led driver 150w 12V 24V LED transformer with 5 years warranty

Black Case Dali dimmable led driver 150w 12V 24V LED transformer with 5 years warranty

dimmable led driver 150w is devide 12v Dali dimmable constant voltage led driver and 24v Dali dimmable constant voltage led driver.we give 5 years warranty,Longer warranty period than ES 150w led driver.

 Feature

1. Output constant Voltage
2. Range: 100-265VAC
3. Built-in active PFC function, PF>0.90
4. Working Efficiency >88%
5. Protections: short circuit/over load/ over current/ over temperature
6. Cooling by free air convection
7. IP67 design for indoor and outdoor installation .
8. Dimming function: Built in DALI interface dimming function conform   to DALI Protocol IEC62386
9. Dimming range from 0.1% to 100%
10. 5 years warranty
11. Suitable for intelligent LED lighting
12. Compliance to worldwide safety regulations for lighting
13. Suitable for dry locations

 Specification

Model		SMT-012-150VM	SMT-024-150VM
Output	DC Voltage	12V	24V
	Voltage Tolerance	±0.5V
	Rated current	0 - 12.5A	0 - 6.25A
	Rated power	150W	150W
Input	Voltage Range	100-130VAC/170-265VAC
	Frequency Range	47 - 63HZ
	Power Factor	PF≧0.90/120VAC  PF≧0.90/230VAC PF≧0.90/265VAC（Full loading）
	Full Load Efficiency(Typ.)	>88%	>88%
	AC Current(Max.)	1.72A	0.86A
	Leakage current	<0.5mA
Protection	Short Circuit	Protection type: Hiccup mode, recovers automatically after fault condition is removed.
	Over Load	≤120%
	Over Circuit	≤1.2*Iout
	Protection Class:	Ⅰ
	Over temperature	100℃±10℃ shut down o/p voltage, re-power on to recover
Environment	Working TEMP.	-40 - +60℃
	Working Humidity	20 - 95%RH,non-condensing
	Storage TEM.,Humidity	-40 - +80℃，10 - 95%RH
	TEMP.coefficient	±0.03%/℃（0 - 50℃）
	Vibration	10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
Safety & EMC	Safety standards	EN61347-1 EN61347-2-13 IP66
	Withstand voltage	I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
	EMC Emission	EN55015,EN61000-3-2 (≥60%load)
	EMC Immunity	EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
Others	Weight	1.6Kg
	Size	256*78*47mm（L*W*H）
	packing	305*295*210mm/10pcs/CTN
	Notes	1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load     and 25℃of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final  equipment manufactures must be-qualify EMC Directive on the complete installation again.
Label

 Problem Analysis

Question:

What is the wire gauge that fits into the ETL Triac Dimmable LED Driver?

Answer:

 14-26 AWG

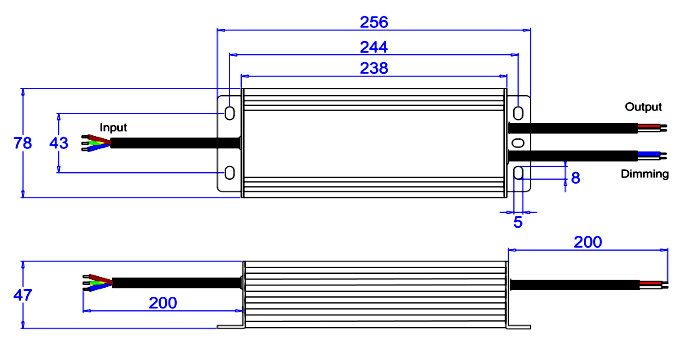

 Mechanical Specification

※Input Rubber cable H05RN-F 3G 1.0mm²,the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)

※Signal Rubber cable H05RN-F 2*0.75mm²,Blue and White is DA1, DA2 (No polar). Connected to the BUS of the DALI Master.

※Output rubber cable :1 group of H05RN-F 2*1.5mm² for KV-24150-DA; 2 group of 2*1.5mm² for KV-12150-DA, Red is output ( V+) Positive,Black is output (V-) negative. Connected to LED Lamps.

Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

 Connecting diagram options

Reference 1:

l Please refer to Diagram 1. Connect the Dali signal line to the Dali bus of the controller (the Dali Master).

After Dali Master scanning and address assignment, the driver can be successfully dimmed.

l Notice:In the market, some DALI controllers has bus-powered functions .If not,please add an extra power supply.(DALI Power).

l Any incorrect connecting of signal line and output line would damage the master.

l Please refer to Diagram 2. Connect the Dali signal line to the Dali controller.

l Please refer to Diagram 3 Connect the Dali signal line to the Dali dimmers.

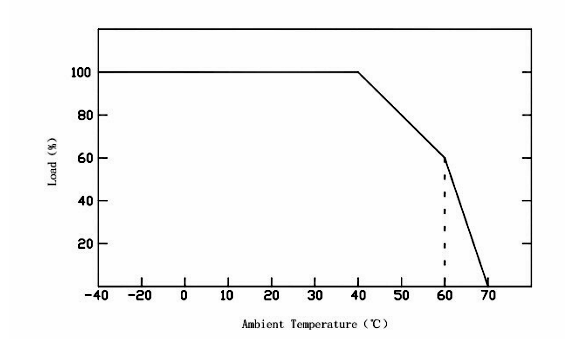

 Derating Curve

l To extend their life, please refer to the Derating Curve and derate according to the temperature.

 Instruction

1) This driver should be installed by qualified and professional person;

2) Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation.

3) Ensure that wiring is correct before test in order to avoid light and power supply damage;

4) If driver Cannot work normally, don’t maintain privately and contact us by email: sales1@smartselectronics.com

phone call: +86-595-27256889 / +86-13489577737
