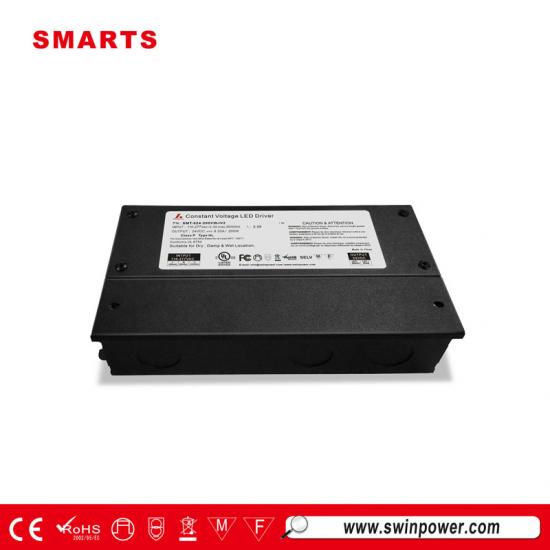

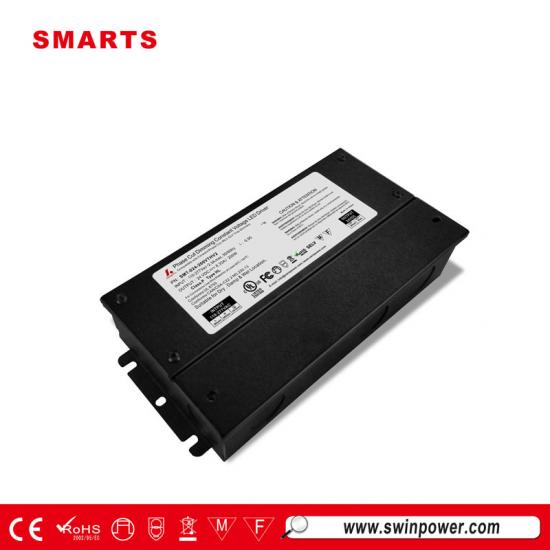

UL FCC listed AC 120v DC 24v 200w triac dimmable led driver for strip
SMT-024-200VTHV2 is 200w led driver 24v triac dimmable. It is dry, damp, wet location type for indoor and outdoor projects. It is dimming well with lead edge and trailing edge ( MLV & ELV) dimmers. It have widely input voltage 110-277Vac, work for global market. For example, LED downlight with superior lighting, etc. High PF>0.95, high efficiency>88%. Long warranty years 7 years. PWM output can be customized to be 20KHz.
Specification of 200w led driver 24v :
|
Model |
SMT-012-200VTH (1.0 version) SMT-012-200VTHV2 (2.0 version) SMT-012-200VTHWV2 (3.0 version) |
SMT-024-200VTH(1.0 version) SMT-024-200VTHV2 (2.0 version) SMT-024-200VTHWV2 (3.0 version) |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|
|
|
Voltage Regulation |
±0.5% |
|
|
|
Voltage Tolerance |
±0.5V |
|
|
|
Load Regulation |
±2% ±1% |
±1% |
|
|
Rated current |
16.67A |
8.33A |
|
|
Rated power |
200W |
|
|
Input |
Voltage Range |
100-277VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor(Typ.)@ full load |
0.96@120VAC 0.97@277VAC |
0.97@120VAC 0.95@277VAC |
|
|
THD（Typ.）@ full load |
<20% |
|
|
|
Inrush Current （Typ.） |
15A, 50%, 1.4ms |
|
|
|
Full Load Efficiency（Typ.） |
>88% |
>88% |
|
|
AC Current（Typ.） |
2.3A@110VAC 1.74A |
|
|
|
Leakage current |
<0.50mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
|
Over load |
≤120% constant current limiting, auto-recovery |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
|
Over Current |
≤1.4*I out |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|
|
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≥50%load) |
|
|
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11（Surge 4KV） |
|
|
Others |
Weight |
1.8Kg |
|
|
|
Size |
1.0 version: 260*103*46mm (L*W*H); 2.0 ver.: 260*105*45mm (L*W*H);3.0 ver.: 260*125*45mm (L*W*H); |
|
|
|
packaging |
10PCS/CTN Carton size: 385*335*200mm |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation. |
||
Compatible Dimmer Type
SMT250-T2 is CE approved triac dimmer. It is trailing edge dimmer, compatible with triac dimmable led drivers. It is been installed in the inout side of triac dimmable drivers. It has three button, press in the middle key touch to turn on and turn off dimmer, and there are two key, press the right key to up the brightness and press the left key to down the brightness.
