Class P LED driver 60w Dimmable LED Driver 12v 24v

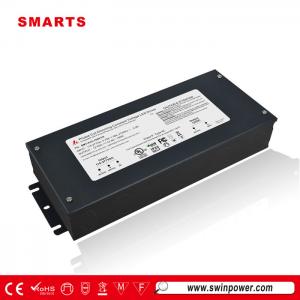

Smarts Electronics' SMT-012-060VTH 12v 60w dimmable led driver is the perfect choice for use in Schools, Hospitals, and Shopping Malls or for any commercial application that 277V is present. The led driver dimmable are paired with relative junction box. This unit can be operated with input current ranging from 100 to 277 VAC and will output 60 watt 12 Volt DC current at 5.0 amps. This led driver dimmable features an IP20 rated design, making it suitable for indoor use and includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.
Specifications
|
model |
SMT-012-060VTH |
SMT-024-060VTH |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
5.00A |
2.50A |
|
|
Load Regulation |
±1% |
||
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
|
Full Load Efficiency(Typ.) |
>83% |
>83% |
|
AC Current(Typ.) |
0.9A/110VAC |
||
|
Inrush Current (Typ.) |
14A, 50%, 780us |
||
|
Leakage current |
<0.50mA |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Over voltage |
<140VAC(90~135V) , <285VAC(170~277V) |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV) |
||
|
Others |
Weight |
About 1.1Kg |
|
|
Size |
188*92*26mm(L*W*H) |
||
|
packing |
10PCS/CTN(L*W*H) |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
 |
||
 |
 |
 |
 |
Features of 60w led driver
- Output constant voltage
- Input voltage range 100-277VAC
- Built-in PFC function / PF>0.97
- Efficiency >85% / Dimming range: 0~100%
- Protections:short circuit/over voltage/over heat
- PWM output, does not change the color index
- IP20 design for indoor installations
- Cooling by free air convection / Flicker-free
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lightings.
- Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
- 7 years warranty
Dimming Operation for 60 watt led driver
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer. Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Simple connection for Triac dimmable led driver
