Small Dimmable LED Driver 12V 150W Manufacturer
dimmable led driver 12v 150w with the Pulse-Width Modulation (PWM) dimming for smooth dimming. 12VDC Dimmable driver is compatible with wide range of dimmers. Compatible with Forward phase, Magnetic low voltage, ELV, Triac Dimmers (see compatibility list of dimmers).
Specifications
|
model |
SMT-012-150VTSW |
SMT-024-150VTSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
12.5A |
6.25A |
|
|
Rated power |
150W |
||
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.95/110V ; PF≧0.97/277V |
||
|
Full Load Efficiency（Typ.） |
>89% |
>91% |
|
|
AC Current（Typ.） |
1.90A/100VAC / 0.82A/277VAC |
||
|
Inrush Current（Typ.） |
59.2A/212us@50%Ipeak |
||
|
Leakage current |
<0.50mA/110VAC; ﹤0.13mA/277VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% Hiccup mode, recovers automatically after fault condition is removed. |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 |
|
|
Withstand voltage |
I/P-O/P: 3.75KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
0.75Kg |
|
|
Size |
368*32*23mm (L*W*H) |
||
|
packing |
50PCS/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |

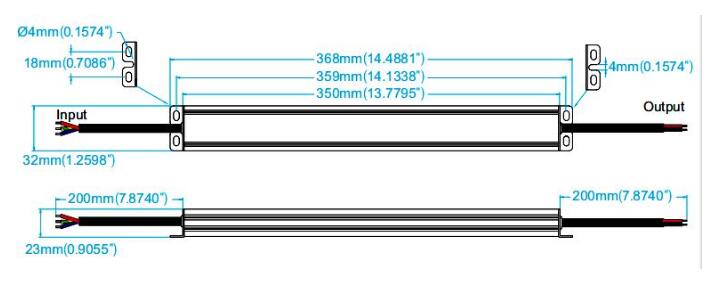

Mechanical Specification
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output: Red is（DIM+）,Black is（DIM-）
Dimming Operation
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
※ Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
Connecting Diagram
Compatible Dimmer Type
Select the model with the brightness appropriate for your lighting application. Armacost Lighting tape light kits with smallest dimmable led drivers from Smarts is your best selection when you are looking for led tape lights.
 |
|
Related Products
|
|
Mode：SMT-012-150VTHW intput voltage：100~277V AC Efficiency > 82% Size：256*78*47mm （L*W*H） Weight：1.5Kg/pcs |
|
|
|
