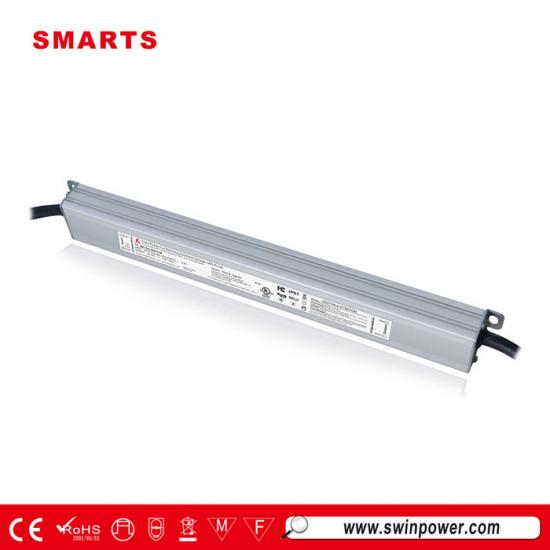

UL triac led driver 24 volt dc 60w led power supply for sale

A 24volt 60watt power supply has ul certification with 7 years warranty,The warranty period is longer than that of American led power supplies.It is work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers.
  • Brand:

    SMARTS
  • Item No.:

    SMT-024-060VTSW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    24V
  • Output Current:

    2.5A
  • Working Mode:

    Constant Voltage
  • Dimming mode:

    Triac dimmable
  • Size:

    300*32*20mm
  • Certification:

    UL
Products description

UL triac led driver 24 volt dc 60w led power supply for sale


A 24volt 60watt power supply has ul certification with 7 years warranty.  It is work with For CLIPSAL phase, Reverse phase, Triac, MLV, ELV Dimmers. The power led driver input voltage range:100-277VAC.


model

SMT-012-060VTSW

SMT-024-060VTSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

5.0Amp

2.5Amp

Rated power

60W

60W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

>83%

>84%

AC CurrentTyp.

0.5A/100VAC  /  0.13A/277VAC

Inrush CurrentTyp.

6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC

Leakage current

<0.74mA/110VAC; 0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P: 2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.45Kg

Size

300*32*20mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

  Label   60w led power supply


Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver



  Mechanical Specification


60w led power supply



※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

※Output: Red isDIM+,Black isDIM-



  Dimming Operation


※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

※Please try to use dimmers with power at least 1.5 times as the output power of the driver.



  Derating Curve


60w led power supply
