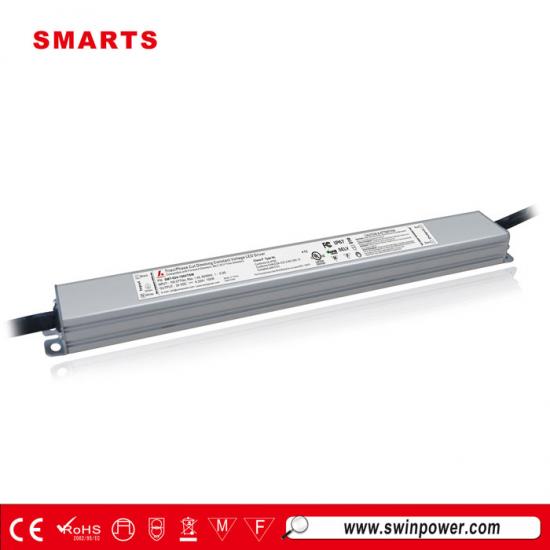

IP67 Weatherproof Slim 150W 24V Dimmable LED Driver Manufacturer
Smarts Electronics is an Slim Line seriers 24v led driver weatherproof manufacturer.We have a wide range of LED Power Supplies with dimming function which delivers smooth, stable, flicker-free dimming with soft start and desirable fade-on and fade-to-dark performance. LED Drivers are fully dimmable with any standard TRIAC dimmer switch.
Specifications
|
model |
SMT-012-150VTSW |
SMT-024-150VTSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
12.5A |
6.25A |
|
|
Rated power |
150W |
||
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.95/110V ; PF≧0.97/277V |
||
|
Full Load Efficiency（Typ.） |
>89% |
>91% |
|
|
AC Current（Typ.） |
1.90A/100VAC / 0.82A/277VAC |
||
|
Inrush Current（Typ.） |
59.2A/212us@50%Ipeak |
||
|
Leakage current |
<0.50mA/110VAC; ﹤0.13mA/277VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% Hiccup mode, recovers automatically after fault condition is removed. |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 |
|
|
Withstand voltage |
I/P-O/P: 3.75KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
0.75Kg |
|
|
Size |
368*32*23mm (L*W*H) |
||
|
packing |
50PCS/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |
Mechanical Specification
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output: Red is（DIM+）,Black is（DIM-）
Dimming Operation
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
※ Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
Connecting Diagram
Compatible Dimmer Type
LED Cabinet Lighting is quickly becoming a mandatory design feature in homes. LED lighting can be mounted under-cabinets, over cabinets, and inside of cabinets/drawers. LED cabinet lighting enhances the look and feel of any space. slim led driver box can work well with Linear LED Under Cabinet Lighting from glowbackledstore.
 |
|
Related Products
|
|
led strip driver accessories from SMARTS is the most versatile and efficient dimmable electronic driver for single color output LED strips. This driver has a high power factor of up to 0.99, a universal input and perfect compatibility with a wide range of dimmers for flicker free lighting.
Mode：SMT-012-150VTHV2 intput voltage：100~277V AC Efficiency > 82% Size：260*105*45mm （L*W*H） Weight：1.5Kg/pcs |
|
|
|
