12v 24v 20watt 30watt ac to dc dali dimmable led driver transformer

dali dimmable led driver 30w with DALI Dimmable function from Smarts Electronics are compatible with the widest range of LED arrays from 20w up to 200Watt. Dali drivers are divided in to categories constant current and constant voltage,SMT-012-030VM has advantages over osram 30w power supply in the certificate, complete certificate can meet the needs of major markets.
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-030VM
  • Input Voltage:

    100-265VAC
  • Output Voltage:

    12VDC
  • Output Current:

    0-2500mA
  • Working Mode:

    Constant Voltage type
  • Dimming mode:

    DALI Dimming
  • Size:

    140*45*28mm
  • Certification:

    CE,ETL ,FCC,RoHS
Products description

12v 24v 20watt 30watt ac to dc dali dimmable led driver transformer


DALI (Digital Addressable Lighting Interface) is internally recognized as the premier new lighting control interface and is cross-compatible across lighting components from different manufacturers. dimmable ac to dc dimmable led driver from Smarts Electronics offers flexibility in designing dimmable LED lights, this driver supports lighting applications up to 45watt, and  can be used under ambient temperature from -20℃ to +60℃.Can replace LE 16W LED Flush Mount Ceiling Light the driver


  Specifications


Model

SMT-012-030VM

SMT-024-030VM

SMT-036-030VM

SMT-048-030VM

output

DC Voltage

12V

24V

36V

48V

Voltage Tolerance

±0.5V

Rated current

0~2.5A

0~1.25A

0~0.833A

0~0.625A

Rated power

30W

input

Voltage Range

100~130VAC, 170~265VAC

Frequency Range

47~63HZ

Power Factor (Typ.)

PF≧0.90/110V  / PF≧0.90/220V

Efficiency(Typ.)

>88%

>88%

>88%

>88%

AC Current(Typ.)

         0.34A@110VAC





        0.17A@220VAC 0.15A

Leakage current

﹤0.40mA/110VAC / ﹤0.50mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Loading

≦120%

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH, non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes







Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015,EN61000-3-2,3 (≧50%loading)

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV)

Others

Net.Weight

0.55Kg

Size

180*60*34mm(L*W*H)

packing

355*215*215mm/20pcs/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load

and  25℃of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final  equipment manufactures must be-qualify EMC Directive on the complete installation again

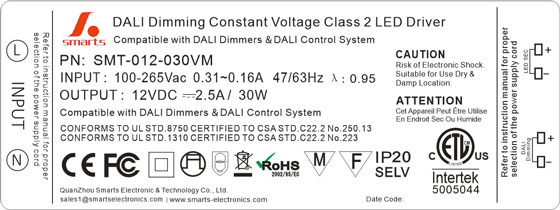

  Lbael   dali dimmable led driver

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

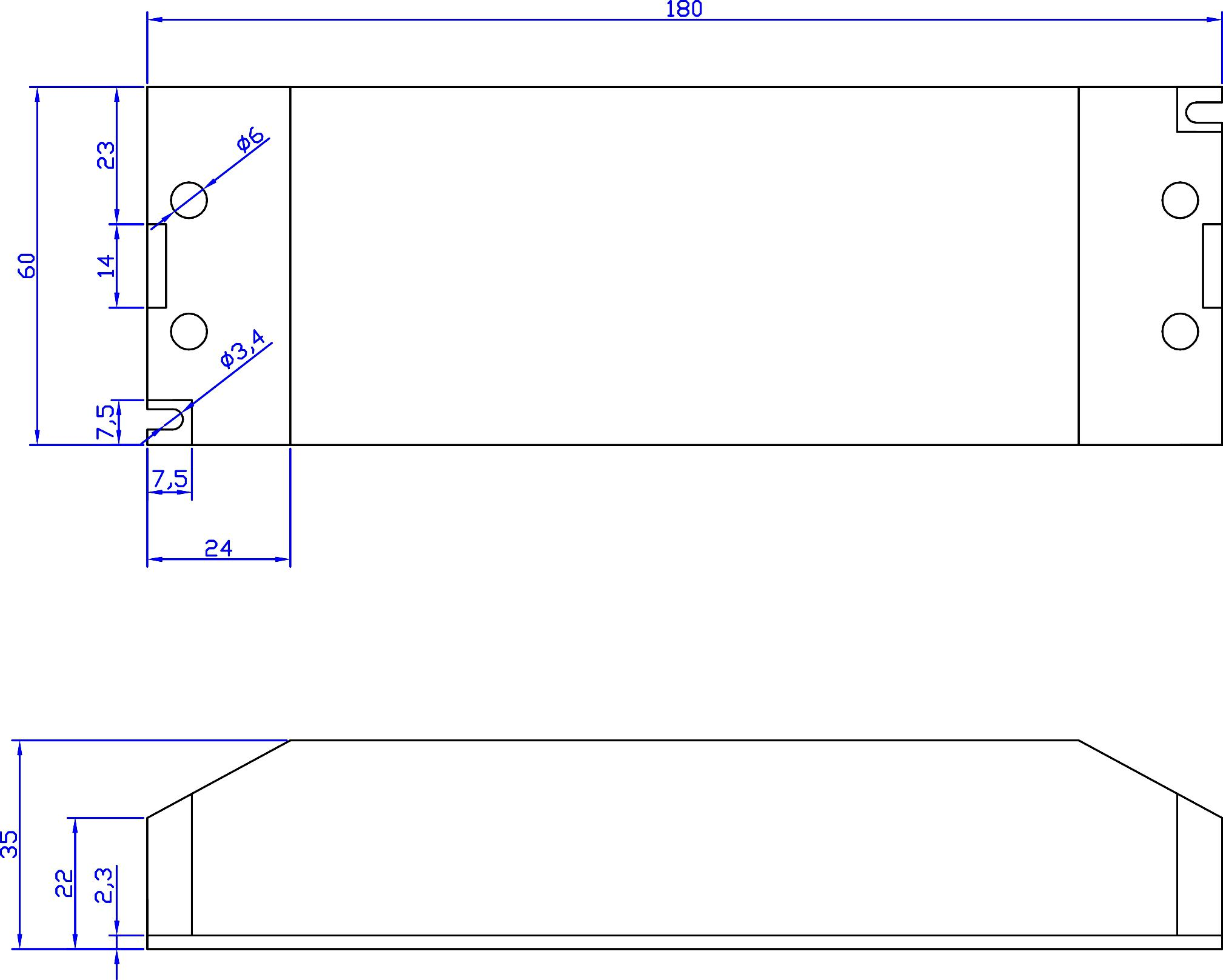

  Mechanical Specification


ac to dc dimmable led driver

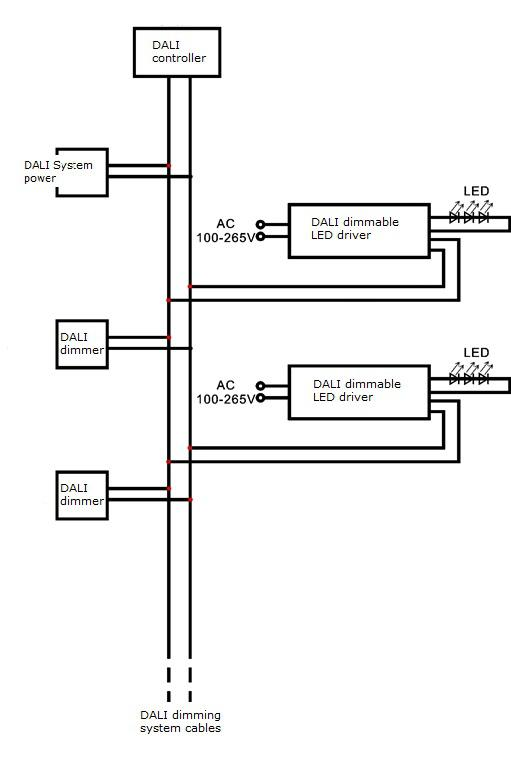

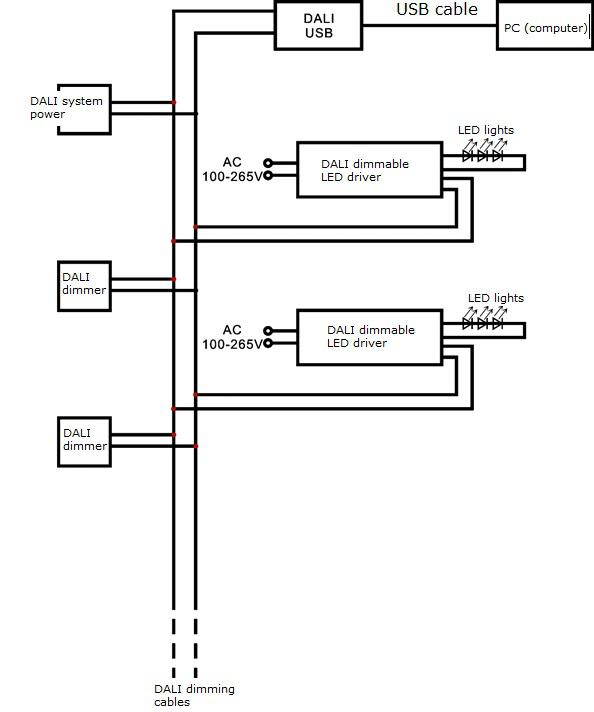

  Connection Diagram 1 for dimmable driver



ac to dc dimmable led driver


  Connection Diagram 2 for dimmable led driver 12v


ac to dc dimmable led driver

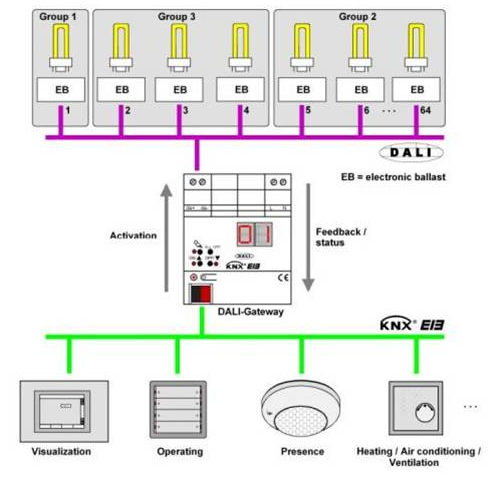

  Compatible Dimmer Type


SMARTS's DALI Dimmable dali led driver 24v have been tested for compatibility dozens of brands dimmer.such as KNX-DALI, Tridonic DALI lighting control system,Lutron, DALITEK.

dali led driver 24v
dali led driver 24v
