CE dali dimmable waterproof electronic led driver 12v 100w ip67

100W DALI dimming led driver, waterproof ip67 aluminum housing design enables him to be suitable for outdoor wet lighting projects, easy and fast installation, 5 year warranty
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-100VMH
  • Input Voltage:

    100-265Vac
  • Output Voltage:

    12VDC/24VDC
  • Working Mode:

    Constant voltage
  • Dimming mode:

    dali dimmable
  • Size:

    210*70*43mm
  • Certification:

    CE, Rohs
Products description

CE dali dimmable waterproof electronic led driver 12v 100w ip67

SMT-012-100VMH is a smarts power dali dimmable series 100W LED
driver, built-in PFC function, can achieve no flicker smooth dimming, but also short circuit, overload, overtemperature protection, can protect the lamp

  Specifications

Model SMT-012-100VMH SMT-024-100VMH
Output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Rated current 8.33A 4.16A
Rated power 100W
Load Regulation ±0.2%
Input Voltage Range 100-265VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.99 / 120VAC  PF≥0.98/ 230VAC  (Full loading)
THD(Typ.)@ full load <15%
Efficiency(Typ.)@ full load 87% 86%
AC Current(Max.) 1.16A 1.17A
Inrush Current (Typ.) 13.2A/120VAC  59A/230VAC
Leakage current <0.5mA
Protection Short Circuit constant current mode, recover automatically after fault condition is removed
Over Load ≤120% constant current limiting, recover automatically after fault condition is removed
Over temperature 100℃±10℃  Shut down o/p voltage, recovers automatically after temperature goes down
Protection Class
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20 - 95%RH ,non-condensing
Storage TEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1 EN61347-2-13 IP67
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55015   EN61000-3-2 ,EN61000-3-3
EMC Immunity EN61000-4-2,3,4,5,6 ,11,   EN61547
Others Weight 1.1Kg
Dimension 210*70*43mm(L*W*H)
packing 340*275*170mm/10pcs /CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


 Input & Output wiring

l Input terminal with Live Wire(L) , Neutral Wire (N)

l Output LED SEC (LED+), output negative (LED). Connected to LED Lamps

 Dimming wiring

Dimming wires are installed for Dimming terminals (No polar) and are connected to the DALI BUS when use DALI function .

wire (N) is connected to AC (N) while and wire (L) is connected to Push dim switch dimmer( L) when use Push function.

l Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.



Note:   Any other requests we can customize.

Suggested wire diameter: primary: 0.5-2.5mm2;  Secondary0.5-2.5mm2


  Dimming Operation


Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.


  Related Products

led power supply 12v 60w

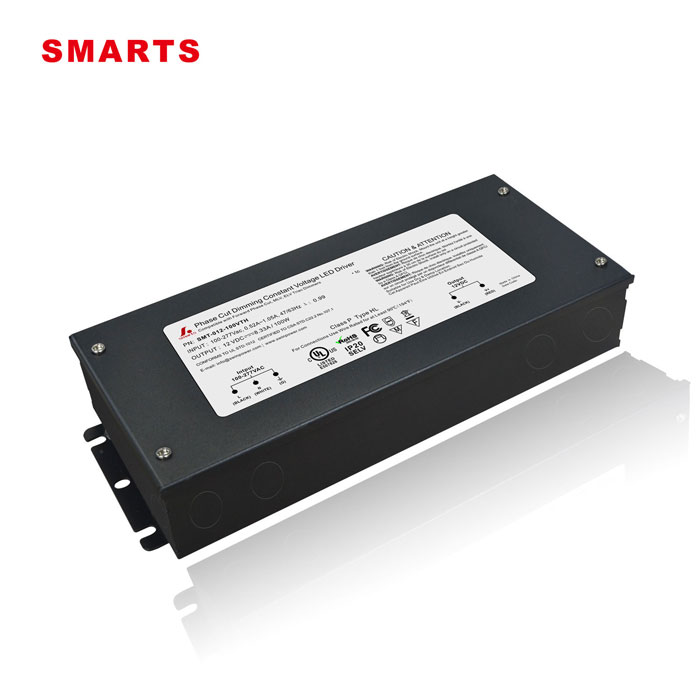

The 277vac is a UL-certified triac dimmable 100W led driver with integrated power and junction box design, making it a great choice for commercial and residential lighting projects
