CE listed triac dimmable 12v constant voltage LED driver for led strip

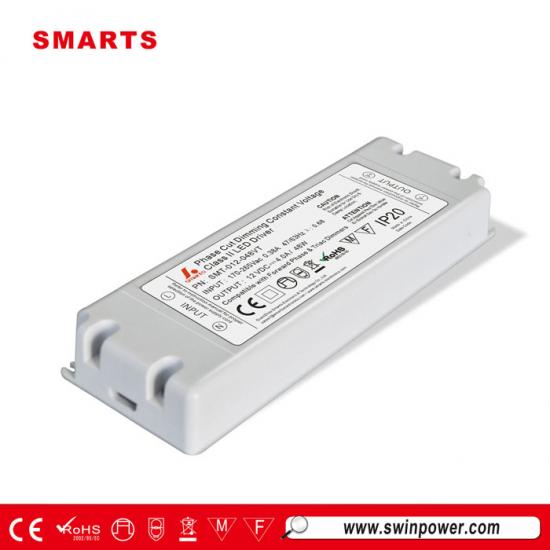

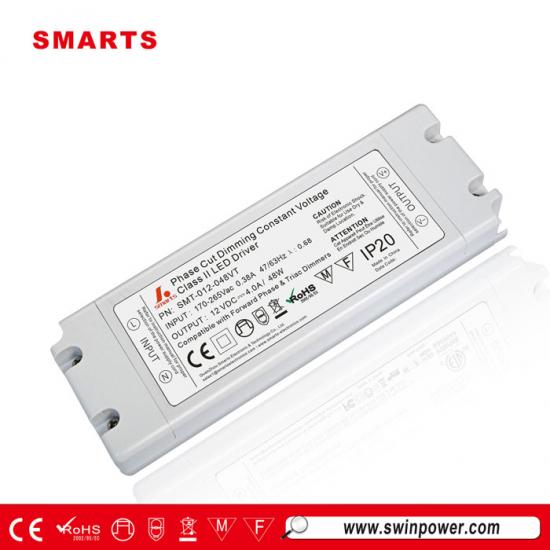

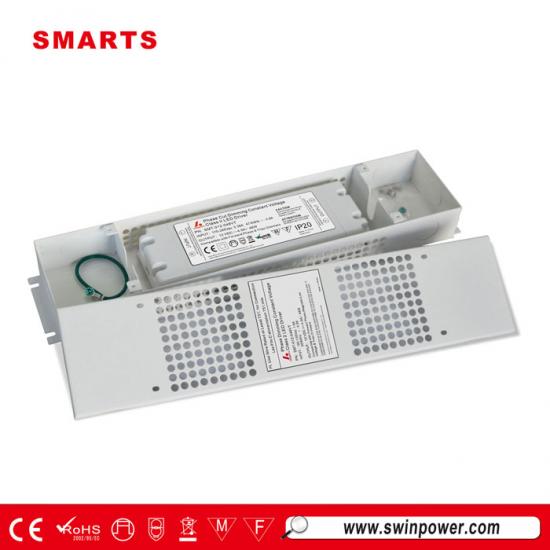

SMT-012-048VT is triac dimmable constant voltage LED driver. For lighting , led strip of Ushio, led minor lighting use. It can only for indoor use at dry location. It can dimming well with Lutron leading edge dimmers.
Features of triac dimmable constant voltage LED driver
|
|
Output constant voltage Universal AC input: 100-130VAC/170-265VAC Power Factor> 0.70 High efficiency> 84% Protection:short circuit/over loading/over current/ Over temperature Full protection plastic housing Easy installation Cooling by free air convection Compatible with Forward phase,Magnetic low voltage,Triac Dimmers Strong compatibility, flicker-free dimming, PWM output Suitable for LED lighting and moving sign applications and others Compliance to worldwide safety regulations for lighting |
Specification of triac dimmable constant voltage LED driver
Model |
SMT-012-048VT |
SMT-024-048VT |
|
Certificates |
ETL、CETL、CE、ROHS |
ETL、CETL、CE、ROHS |
|
output |
DC Voltage |
12V |
24V |
|
Voltage Tolerance |
±0.5V |
|
|
Rated current |
4.00A 1.25A |
2.00A |
|
Rated power |
48W |
|
input |
Voltage Range |
100~130VAC / 170~265VAC |
|
|
Frequency Range |
47~63HZ |
|
|
Power Factor (Typ.) |
PF≥0.70 |
|
|
Efficiency(Typ.) |
>84% |
>84% |
|
AC Current(Typ.) |
0.68A @120VAC 0.4A |
0.37A@220VAC |
|
Leakage current |
﹤0.70mA/110VAC , ﹤0.50mA/220VAC |
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
|
|
Over Current |
≤1.4*I output |
|
|
Over Loading |
≤120% |
|
|
Over temperature |
100℃±10℃ (The output voltage will turn off when the temperature is higher then100℃±10℃, after the temperature drop off ,it will recovery) automatic |
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH, non-condensing |
|
|
Storage TEMP. Humidity |
-40~+80℃,10~95%RH |
|
|
TEMP .coefficient |
±0.03%/℃(0~50℃) |
|
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
Safety& EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1500KVAC |
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
EMC EMISSION |
FCC Part 15 B |
|
others |
Net. Weight |
0.45Kg |
|
|
Size |
178*61*24mm(L*W*H) |
|
|
packing |
350*195*180mm 30PCS/CTN |
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC / 220VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3.Loading should be 5-100%. |
Dimming Operation
※The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Usually matching with leading edge Triac Dimmers( Can customized as a driver only matching trailing edge Triac Dimmers if needed).
※Please try to use dimmers with power at least 2.5 times as the output power of the driver.
※for Forward phase,Magnetic low voltage and Triac Dimmers
Warning
※Prevent to reverse polarity;
※Risk of Electric Shock. When used outdoors, install only on a circuit protected by a Class A GFCI;
※Risk of Fire. Installation involves special wiring methods to run wiring through a building structure. Consult a qualified electrician;
※Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface.
