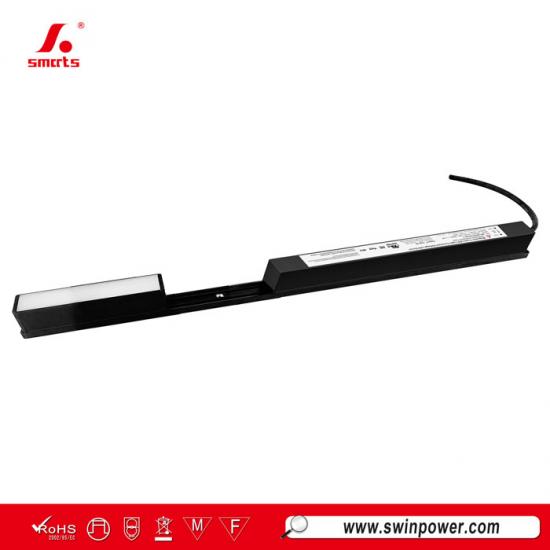

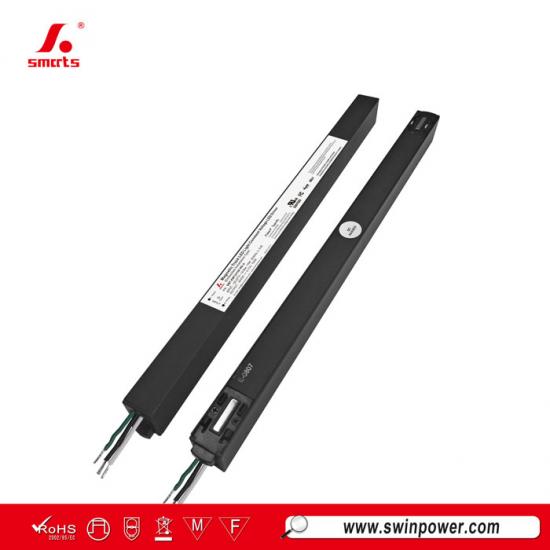

slim size 24v 100W triac dimmable led strip driver for Magnetic Track Installing
100-277VAC universal input voltage range, non-dimmable 100W LED driver, ultra-thin design, aluminum casing for excellent heat dissipation, features multiple protections against short circuit/overload/over-temperature, UL certified, mainly sold to North America.
Specification
| Model | SMT-EMT24100-ND-A | SMT-EMT48100-ND-A | |
| Certificate | UL/ SELV / FCC / RoHS / REACH | ||
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | ±1.5% | ±1% | |
| Voltage Regulation | ≤0.5% | ||
| Rated current | 4.17A | 2.08A | |
| Rated power | 100W | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 120-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load | 0.99@120VAC 0.95@277VAC | ||
| THD(Typ. ) @ full load | <20%@120VAC &277VAC | ||
| Efficiency(Typ.) @ full load |
≥88.5%@120VAC ≥91%@277VAC |
≥88.5%@120VAC ≥91%@277VAC |
|
| AC Current (Max.) | 1.2A | ||
| Inrush Current (Typ.) | 17A,810us@50%Ipeak110VAC;38A,148us@50%Ipeak277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over Load | ≤120% Constant current mode, recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Safety & EMC | Safety standards | UL8750 (US) | |
| Withstand voltage | I/P-0/P: 1.8KVAC I/P-F/G: 1.8KVAC O/P-F/G: 0.5KVAC (US) | ||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||
| EMC Emission | FCC Part 15 Subpart B (US) | ||
| Surge Immunity Test | Different mode: 2KV, Common mode:4KV | ||
| Others | Net Weight | 0.4KG | |
| Dimension | 355.5*20*24.2mm (L*W*H) | ||
| Packing | 50pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||
| 2. Under low input voltage, derating output is required to ensure a long life. | |||
|
|
 |
 |
 |
Mechanical Specification
| wire gauge | |
| MGQ201 | |
| Input wires | Black(L) White(N) Green(G)(3*18AWG) |
| Output | Embedding the track and through the guide rail driver output current |
| Dimming wire | Purple(D+) Pink(D-)(2*0.35mm²) |
| Remark: Please make sure your connection these correctly otherwise your product will not function correctly and could be damaged | |
Warm tips :
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customized.

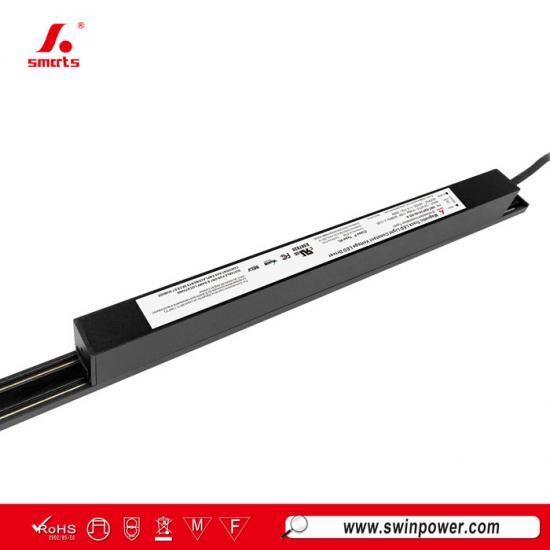

Compatible Track:

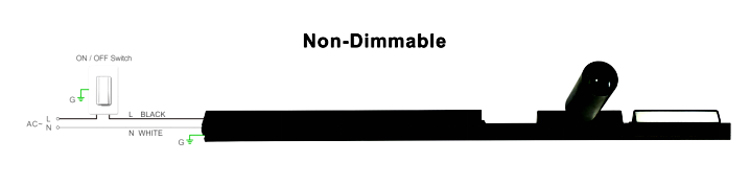

Dimming Connecting Diagram
Related Products
|

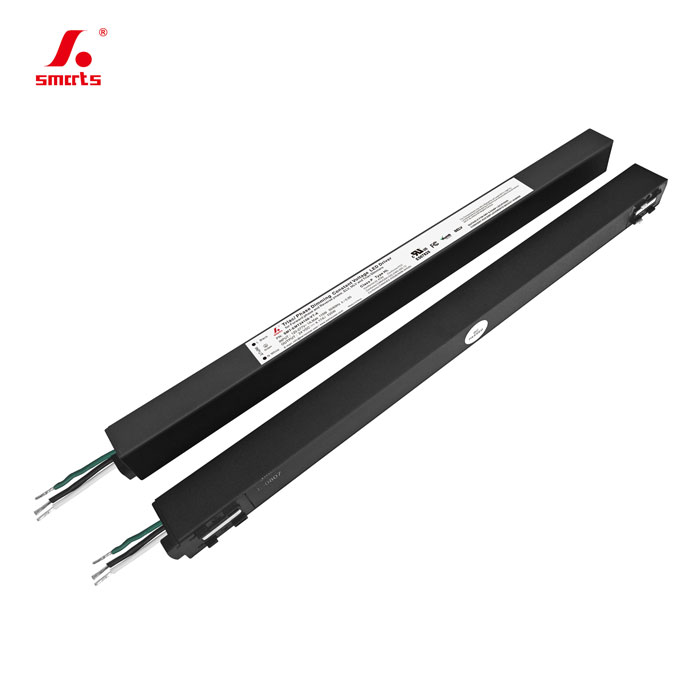

100-277VAC universal input voltage range, triac dimmable LED driver, ultra-thin design, aluminum casing for excellent heat dissipation, features multiple protections against short circuit, overload, and over-temperature, suitable for use with indoor magnetic track lighting systems.
