100-277vac Magnetic Track Installing triac & 0 10v dimmable 100W led driver for led lighting
Smartspower magnetic track light LED driver with 5-in-1 dimmable mode, featuring ultra-low load requirements and perfect operation at 15% load. Dimming modes include PWM and dropout. Complies with global safety lighting regulations. 7-year warranty.
Specification
| Model | SMT-IMT24100-VTD-A | SMT-IMT48100-VTD-A | |
| Certificate | UL/ SELV / FCC / RoHS / REACH | ||
| Output | DC Voltage | 24V | 48V |
| Voltage Tolerance | ±1.5% | ±1% | |
| Voltage Regulation | ≤0.5% | ||
| Rated current | 4.17A | 2.08A | |
| Rated power | 100W | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 110-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load | 0.99@120VAC 0.95@277VAC | ||
| THD(Typ. ) @ full load | <20%@120VAC &277VAC | ||
| Efficiency(Typ.) @ full load |
≥88.5%@120VAC ≥91%@277VAC |
≥88.5%@120VAC ≥91%@277VAC |
|
| AC Current (Max.) | 1.2A | ||
| Inrush Current (Typ.) | 17A,810us@50%Ipeak110VAC;38A,148us@50%Ipeak277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | |
| Over Load | ≤120% Constant current mode, recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Safety & EMC | Safety standards | UL8750 (US) | |
| Withstand voltage | I/P-0/P: 1.8KVAC I/P-F/G: 1.8KVAC O/P-F/G: 0.5KVAC(US) | ||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||
| EMC Emission | FCC Part 15 Subpart B (US) | ||
| Surge Immunity Test | Different mode: 2KV, Common mode:4KV | ||
| Others | Net Weight | 0.4KG | |
| Dimension | 309.5*22.4*44mm / 12.18*1.73*0.88 inch (L*W*H) | ||
| Packing | 20pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature. | ||
| 2. Under low input voltage, derating output is required to ensure a long life. | |||
|
|
 |
 |
 |

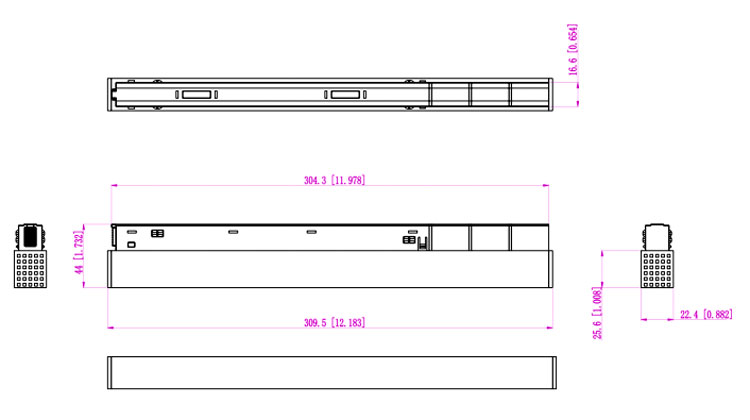

Mechanical Specification
| wire gauge | |
| MGQ201 | |
| Input wires | Black(L) White(N) Green(G)(3*18AWG) |
| Output | Embedding the track and through the guide rail driver output current |
| Dimming wire | Purple(D+) Pink(D-)(2*0.35mm²) |
| Remark: Please make sure your connection these correctly otherwise your product will not function correctly and could be damaged | |
Warm tips :
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customized.
Compatible Track:
Dimming Connecting Diagram
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the
other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
A phase /Triac dimmer or lighting system.
2. Working with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers or light system.
3. Min. loading is about 15%
4. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
