Slim type DALI led transformer led dimming driver 30w
The 30w led dimming driver is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Specification
model
SMT-012-030VMSPH
SMT-024-030VMSPH
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
2.5Amp
1.25Amp
Rated power
30W
30W
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
Input
Voltage Range
180-265VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.98@120VAC
0.98@120VAC
Full Load Efficiency（Typ.）
>81%
>81%
AC Current（Typ.）
0.38A@100VAC
THD(Typ. ) @ full load
10%@120VAC
10%@120VAC
Inrush Current（Typ.）
4.64A (twidth=460us) @120VAC ; 33.2A (twidth=116us) @230VAC ;
12.4A (twidth=430us) @277VAC ;
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Protection Class
II
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
Isolation resistance
I/P-O/P：100M Ohms/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Weight
0.20Kg
Size
260*30*18.5mm(L*W*H)
packing
330*275*130mm/50PCS/CTN G.W.:11KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Label
Mechanical Specification
Ø Input terminal with Live Wire(L) , Neutral Wire (N)
Ø Output LED SEC (LED+), output negative (LED). Connected to LED Lamps

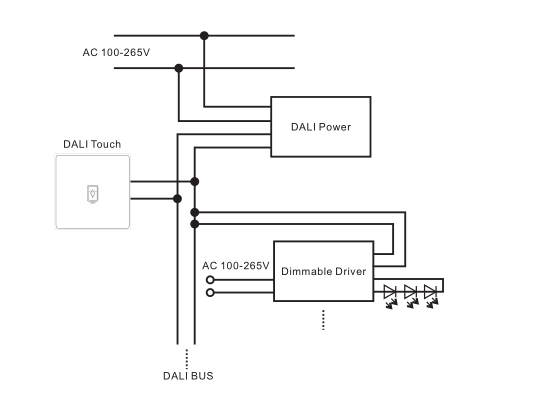

Compatible DALI Dimmer Type from Smarts
SMARTS's has released CE ROHS dali dimmer since 2019 in order to cater to some of the customers' need for the compatible between the dimmer and the led driver
