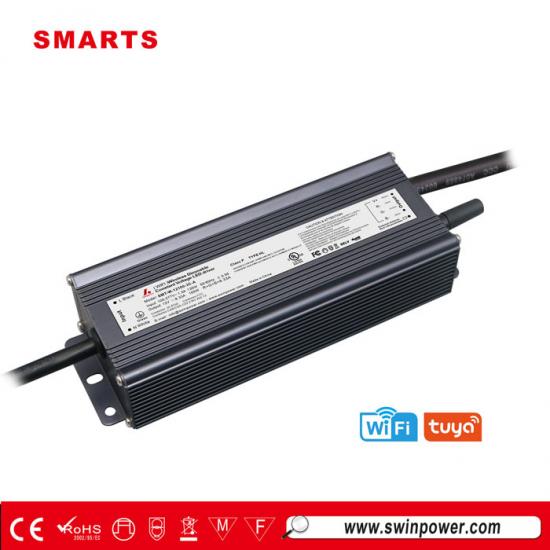

UL outdoor 100w waterproof power supply WIFI dimming strip light driver
Model SMT-W-12100-3C-A is a strip light driver 100W 12V, 3 channels for RGB dimming ( each channels 2.7amp max), 7 years warranty, aluminum IP67.
Specification:
model
SMT-W-12100-XC-A
SMT-W-24100-XC-A
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1+CH2+CH3+CH4+CH5=8.3A
CH1+CH2+CH3+CH4+CH5=4.17A
Load Regulation
±2%
Rated power
100W
100W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120V ;0.98@230V ;0.98@277V
0.99@120V ; 0.98@230V ;0.98@277V
Full Load Efficiency（Typ.）
85%@120V, 89%@230V ,89%@277V
88%@120V,92%@230V,92%@277V
AC Current（Typ.）
0.9A/110VAC
Inrush Current （Typ.）
20A,50% ,1.9ms@120V ;60A,50% 130us@230V ; 35A,50% 1.9ms@277V
Leakage current
<0.50mA
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% constant current mode,recovers automatically after fault condition is removed
Over voltage
≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Others
Weight
About 1.5Kg
Size
230*78*25mm (L*W*H)
packing
10PCS/CTN （L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”t wisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
 |
 |
 |
 |
Dimension:
Compatible LED light type
This dimmable power supply are available in WIFI dimming of DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW), work well with Govee LED Strip Lights.
