UL 0-10v dimmable led driver 12v 10A 120w

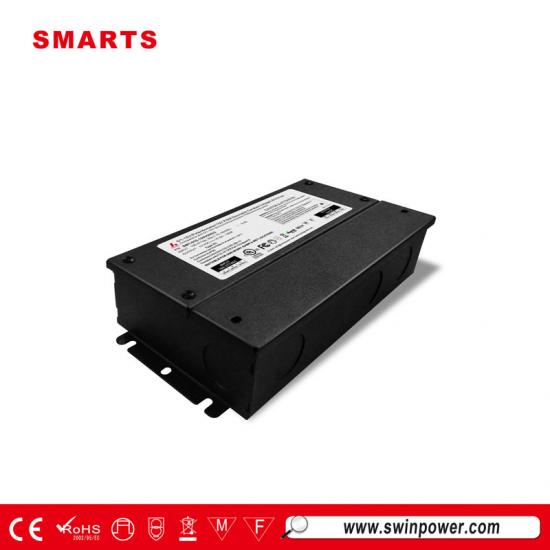

SMT-012-120VDHV2 is 0-10v dimmable led driver 12v. It is 0-10V driver with hardwire box integrated which can be used in wet, damp, dry location. High power factor>0.9, and high efficiency>88%, flicker free. It is compatible with litom's C-M191.
Specification:
|
model |
SMT-012-120VDH (1.0 version) SMT-012-120VDHV2 (1.0 version)
|
SMT-024-120VDH (1.0 version) SMT-024-120VDHV2 (1.0 version)
|
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±2%
|
|
|
|
Rated current |
10.00A |
5.00A |
|
|
Rated power |
120W |
120W |
|
Input |
Voltage Range |
100-277VAC |
|
|
|
Frequency Range |
47-63Hz |
|
|
|
Power Factor(Typ.)@ full load |
0.98@120VAC 0.95@277VAC |
|
|
|
THD（Typ.）@ full load |
<20% |
|
|
|
Efficiency(Typ.)@ full load |
83% @120Vac 86%@277Vac 79% |
|
|
|
AC Current（Max.） |
1.3A@100VAC |
|
|
|
Inrush Current（Typ.） |
20A, 50%, 1.6ms |
|
|
|
Leakage current |
<0.50mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
|
|
|
Working Humidity |
20～90%RH, non-condensing |
|
|
|
Storage TEMP. Humidity |
-40～+80℃,10~95%RH |
|
|
|
TEMP .coefficient |
±0.03%/℃(0~50℃) |
|
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC Part 15 B |
|
|
Others |
Weight |
1.37Kg (1.0 version) |
|
|
|
Size |
1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 260*105*45mm |
|
|
|
packing |
10PCS/ctn |
|
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
||
