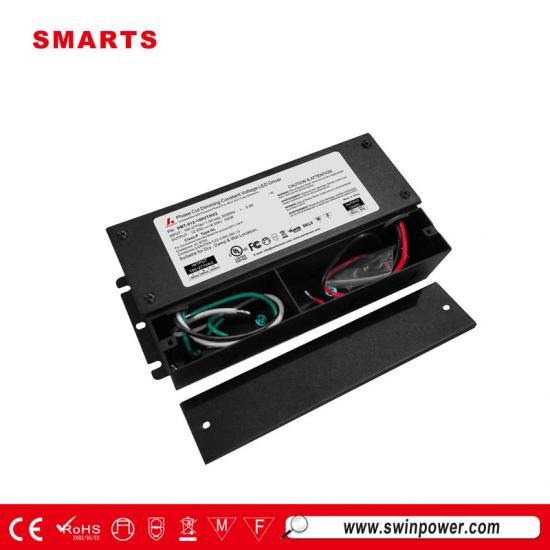

UL listed Triac dimming 12v 100w led power supply waterproof for LED light bar

Smarts triac 100W 12v led power supply waterproof has high PF up to 0.98 and was promised a seven-year warranty.Built with junction box and showed good water resistance, this  item is more safer than other led power supply.It could be used for Nilight LED Light Bar.
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-100VTHV2
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC
  • Output Current:

    8.3A
  • Working Mode:

    constant voltage
  • Dimming mode:

    triac dimming
  • Size:

    220*94.5*40mm
  • Certification:

    UL
Products description

UL listed Triac dimming 12v 100w led power supply waterproof for LED light bar


12V 100w phase dimmable led driver can work with leading edge and trailing edge triac dimmers. 100-277VAC, UL approval and waterproof mental housing drive it become a hot product. SMT-012-100VTHV2 can work well with LUTRON dimmer TG-600PR-LA.


  Specification



model

SMT-012-100VTH (1.0 version)

SMT-012-100VTHV2 (2.0 version)

SMT-024-096VTH  (1.0 version)

SMT-024-100VTHV2 (2.0 version)

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

8.3A

4.0A (class 2 type)

Rated power

100W

96W

Input

Voltage Range

100~277V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.98/110V ,PF≧0.95/277V

Full Load Efficiency(Typ.)

>84%

>84%

>85%

>85%

AC Current(Typ.)

1.3A @110VAC

Leakage current

﹤0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

≦140VAC(90~135V) ,≦270VAC(170~265V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

1.3Kg

Size

1.0 version:220*93*41mm (L*W*H); 2.0 version:220*94.5*40mm (L*W*H)

packing

10PCS/CTN

385*335*200mm     20PCS/CTN

Notes

1.  All parameters NOT specially mentioned are measured at 120VAC & 277vacinput , rated load and 25℃of ambient temperature.

2.  Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  ■ Mechanical Specification:



100w phase dimmable led driver

1.0 version:  SMT-012-100VTH , SMT-024-096VTH



100w phase dimmable led driver

2.0 version:  SMT-012-100VTHV2,  SMT-024-096VTHV2

※Input power cord: AC (L), (N), and earth wire (G)

※Output Red is(DIM+),Black is(DIM-)



  ■Dimming Operation


1) The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.

2) Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.

3) lease try to use dimmers with power at least 1.5 times as the output power of the driver.



  ■Derating Curve


100w phase dimmable led driver

※Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.



  ■ Simple Connection Diagram


100w phase dimmable led driver


  ■Connecting Diagram


100w phase dimmable led driver



 100w phase dimmable led driver





100w phase dimmable led driver



  ■ Instruction:


※This driver should be installed by qualified and professional person;

※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

※Ensure that wiring is correct before test in order to avoid light and power supply damage;

※If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us:sales9@smartselectronics.com  Or take a phone call: 86 18016688251



Welcome to login our Official website:www.smarts-electronics.com  ,www.swinpower.com




  Compatible Dimmer Type


 SMT-012-100VTHV2 has extra long  quality assurance up to 7 years,which is longer than most products on the market With the triac dimming mode,driver led 12v 100w is suitable for  LED Light Bar, such as Nilight 17" LED light bar 40003C-A as below:
