slimline 277v 120v to 12v high efficiency UL led driver 0-10v dimming 30w
SMT-012-030VDSP is 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 Dimmable slimline led driver 12v 30w, a 3cm width and 2cm height makes drivers able to work with strict size limited , like PLANAR led display, led mirrors. 7 years warranty period, compatiable with 0-10v pwm dimmer dimming system.
Datasheet
|
model |
SMT-012-030VDSP |
SMT-024-030VDSP |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.98/277V |
||
|
Full Load Efficiency（Typ.） |
>79% |
>81% |
|
|
THD(Typ. ) @ full load |
<10%@120VAC <15%@277VAC |
||
|
AC Current（Typ.） |
0.5A |
||
|
Inrush Current（Typ.） |
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC |
||
|
Leakage current |
﹤0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～95%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13 |
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.20Kg |
|
|
Size |
260*32*20mm (L*W*H) |
||
|
packing |
290*270*160mm , 50PCS/CTN
|
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
| Label |
 |
||
 |
 |
 |
 |
 |
 |

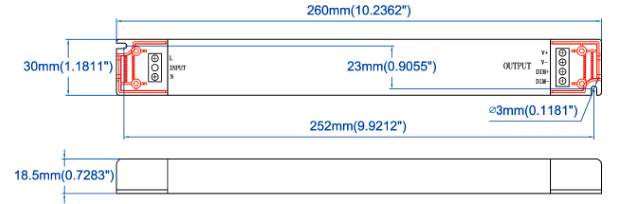

Dimension
Input terminals "Black" and "White" to connect to AC L and N.
- Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
- Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
- Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
- Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Recommend dimmer list for 0-10v dimmable led driver
