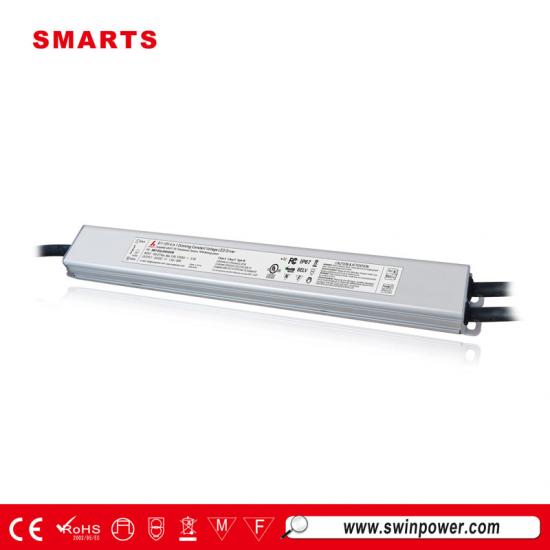

24v 1.25amp 30w 0-10v/pwm dimmable led driver
Smarts 0-10v dimmable 24v power supply SMT-024-030VDSW could work well with your CLIPSAL 0-10v dimmer. and we do 12v 24v 30w 36w 60w 96w class power supply.
|
Feture |
|
|
·Output constant voltage ·Input voltage range 100-277VAC ·UL, cUL listed, Class 2, Class P approval ·Built-in PFC function / Efficiency > 84% / PF> 0.99 ·Dimming range: 0~100% ·Protections:short circuit/over voltage/over heat ·IP67 design for indoor dry,wet or damp environment installations ·Cooling by free air convection ·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 ·Full protection aluminum housing, for dry, damp, wet location ·Strong compatibility, flicker-free dimming ·Suitable for LED lighting and moving sign applications ·Compliance to worldwide safety regulations for lighting ·7 years warranty |
|
Specification
|
model |
SMT-012-030VDSW |
SMT-024-030VDSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
PF>0.99/110V ; PF>0.98/277V |
||
|
THD(Typ. ) @ full load |
<10%@120VAC <15%@277VAC |
||
|
Full Load Efficiency(Typ.) |
>84% |
>85% |
|
|
AC Current(Typ.) |
0.5A |
||
|
Inrush Current(Typ.) |
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC |
||
|
Leakage current |
<0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover aftercooling. |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13 |
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11,Alight industry level |
||
|
Others |
Weight |
0.35Kg |
|
|
Size |
260*32*20mm (L*W*H) |
||
|
packing |
290*270*160mm , 50PCS/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
