230v 240v brightness triac trailing edge touch dimmer switch UK
SMT250-T1 is a triac dimmer with trailing edge, use the touch dimmer to load 12w ~ 250w LED driver and have the Memory function of remember the last brightness when turn on, have over current protection, input voltage 100-265vac , used in EU market like Germany, UK france, etc..
Features:
- Supply voltage : AC100-265V
- Frequency: 50/60Hz
- Output power: 12w~ 250w
- Working temperature: -20℃-40℃
- Product dimension: 86*86*38mm(L*W*H)
- Net weight: 170g
- Only connect L(LIVE).
- Dimming operation: Touch pannel with one touch botton
- Phase-cut model: trailing edge dimming
Wire diagram:
Operations:
1. When dimmer is off, short press to turn on it and reach the pervious brightness level.
2. When dimmer is on, short press to turn off.
3. When dimmer is on, long press to incress the brightness level.
4. When dimmer is off, long press to turn on and incress the brightness level.

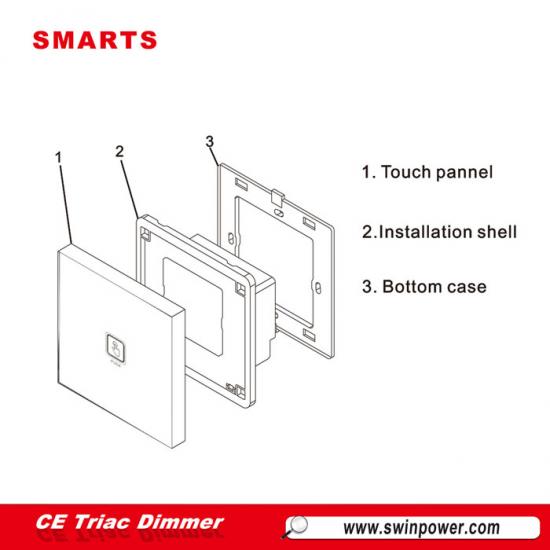

Instruction installation:
How to select a correct triac dimmer for LED applications?
Leading edge dimmers are typically used only on leading edge dimmable led driver and trailing edge dimmers are typically used only on trailing edge dimming power supplies. hence, Whether the leading or trailing edge dimmer can be adapted to a dimmable led driver, it depends on the power supply, not the dimmer. So, pls use trialing edge dimmer to a trailing edge dimmable driver and leading edge dimmer to a leading edge dimmable driver. If the LED driver you are using is able to work with both leading edge & trialing edge, then choose any one of them is suitable.
Forced to use the leading edge dimmer to adjust the power supply that can only use the trailing edge dimming may have flicker incompatibility problem, the worst incompatibility is the dimmer or dimmable driver would damage.
More questions about the comeptiable with dimmer & dimmable drivers, let us know.
