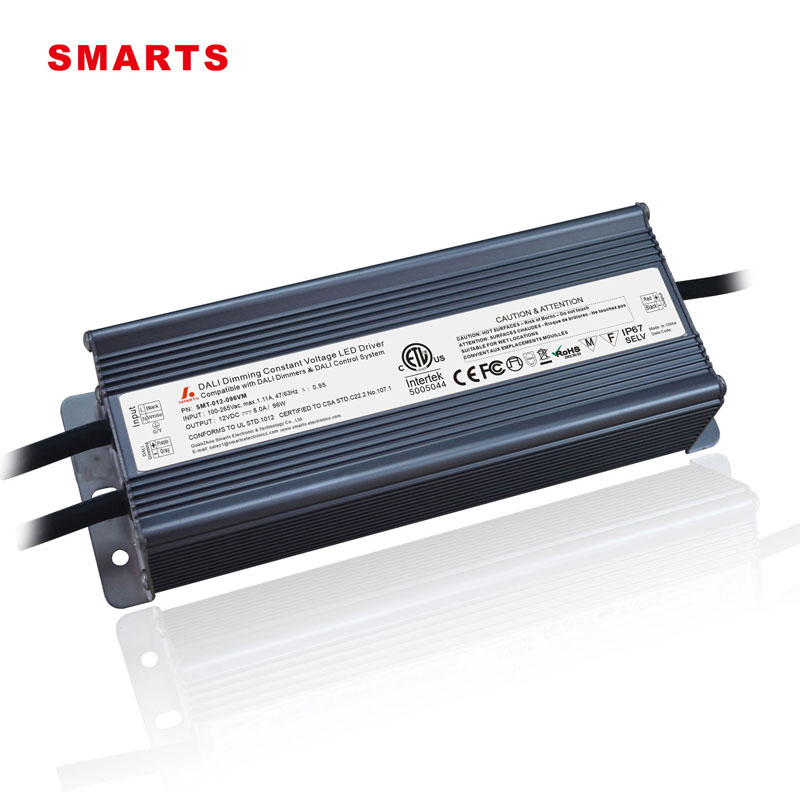

dali dimmable waterproof led power supply 12v 200w for led flood light
Smarts electronics are trying to be a best led driver manufacturers since 1998, we are developing triac dimmable, 0-10v dimmable and dali dimmable, din rail 0-10v+ dali dimmable led driver in thses years, they are quite widely used in many areas,can replace MOSO 200w LED power supply to install in humid place
Specification
Model
SMT-012-200VM
SMT-024-200VM
SMT-036-200VM
Output
DC Voltage
12VDC
24VDC
36VDC
Voltage Accuracy
±0.5V
Rated current
0～16.67A
0～8.33A
0～5.55A
Rated power
200W
200W
200W
Input
Voltage Range
100-265VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.90/100V, PF≧0.90/220V
Full Load Efficiency（Typ.）
>88%/110, 220V
>88%/110, 220V
AC Current（Typ.）
2.30A/110VAC
1.15A@220VAC
Leakage current
﹤0.72mA/110VAC, ﹤0.74mA/220VAC
Protection
Short Circuit
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Current
≦1.4*I out
Over temperature
100℃±10℃ shut down o/p voltage, re-power on to recover
Environment
Working TEMP.
-40～+50℃
Working Humidity
20～95%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 IP67
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
Others
Weight
1.8Kg
Size
250*79*52mm（L*W*H）
packing
355*215*215mm/10pcs/CTN / 240*70*50 mm for inner box
Noteses
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
label
Mechanical Specification
Compatible with the led flood lights
The led flood lights connect waterproof led power supply 12v signal cable with DALI dimmers, then dim after controller scan and assign address.
