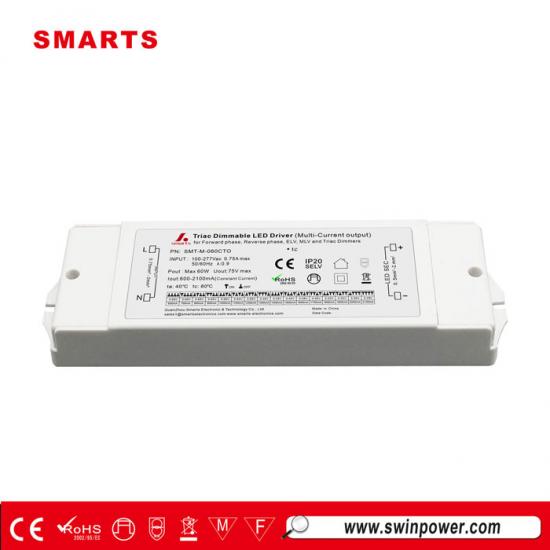

CE ROHS listed 50 watt 60watt constant current triac dimmable led driver

The smart led transformer is used for Significant Energy Saving of up to 80%. Simple Plug & Play Retrofit Installation. Reduced Energy and Maintenance Cost.
  • Brand:

    SMARTS
  • Item No.:

    SMT-M-060CTO
  • Input Voltage:

    200-240vac
  • Output Voltage:

    3~65v
  • Output Current:

    600~2100mA
  • Working Mode:

    Constant current
  • Dimming mode:

    triac dimming
  • Size:

    192.5*62*24mm
  • Certification:

    CE ROHS
Products description

CE ROHS listed 50 watt 60watt constant current triac dimmable led driver


The 50 watt constant current led driver are light weight and low-profile, available in ability to select different output voltage.


  Specification


Model

SMT-M-060CTO

Output

Rated current (A)

0.6

0.7

0.8

0.9

1.0

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

2.0

2.1

DIP Code

































DIP Code

































Current Tolerance

±5%

DC Voltage (V)

3-65V

3-60

3-55

3-50

3-46

3-43

3-40

3-38

3-35

3-33

3-32

3-30

3-39

Rated power (W)

39

45.5

52

58.5

60

Input

Rated

Input Voltage

200-240VAC

Rated Frequency

47-63HZ

Power Factor

Full loading  ≥0.98@230VAC;

Efficiency (Typ.)

Full loading  ≥83%@230VAC;

AC Current (Max.)

0.45A

Inrush

Current (Typ.)

30.4A, 37us @ 50% Ipeak at 230VAC

Leakage current

<0.50mA

Protec-

tion

Short Circuit

Constant current mode, recovers automatically after fault condition is removed

Over load

Hiccup mode, recovers automatically after fault condition is removed

Output No-Load Voltage

75V max.

Over temperature

Ambient temp. over 50±5℃, output current will be reduced to 50%;

Ambient temp. over 60±5℃, output will be off; recovers automatically after temp. drops.

Protection Class:

II



Environ-

ment

Working TEMP.

-40-+60℃

Working Humidity

20-90%RH, non-condensing

Storage

TEMP. Humidity

-40-+80℃,10-95%RH

TEMP. coefficient

±0.03%/℃ (0-50℃)

Vibration

10-500Hz, 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes



Safety



Safety standards

EN61347-1  EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

Others

Weight

0.30Kg

Size

192.5x62x24mm(L*W*H)

packing

290*215*140mm (20PCS/CTN )

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


100ma constant current led driver


Ø Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)

Ø Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

Ø Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.



  Connection diagram  ani

constant current led driver 250ma


  Compatible with LED light bulb Type

Making them ideal for illuminating offices, retail or hospitality areas.  provides power and regulates the variable needs of LEDs by providing constant amount of power as the properties of it change with temperature.

Constant current LED drivers rectify higher voltage alternating current to low voltage.

Constant current LED drivers
