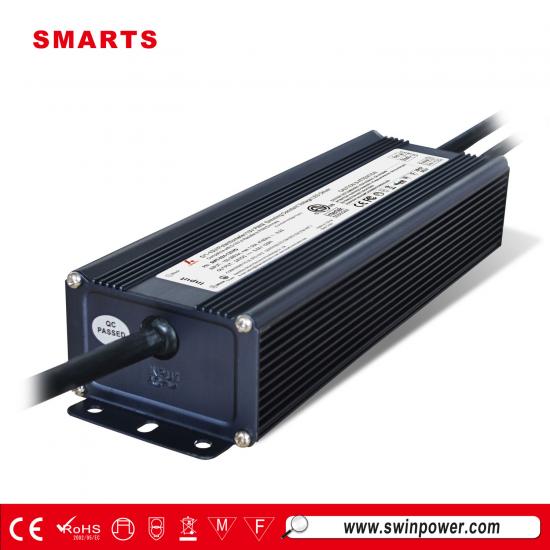

0-10v dimable led driver 24 volt 120w for striplite gold coast
Features
·working mode: constant voltage type
·output voltage range :100-130VAC，170-265VAC
·Built-in PFC function
·Efficiency >88% / PF>0.9
·Protections:short circuit/over current/over voltage/over temperature
·Cooling by free air convection
·IP67 design for indoor or outdoor installations .
·Dimming function:0-10V/ 1-10V/ 10VPWM signal or resistance .
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Suitable for dry/damp/wet locations
·3 years warranty
Specification
|
Model |
SMT-012-120VD |
SMT-024-120VD |
SMT-036-120VD |
|||
|
Output |
DC Voltage |
12V |
24V |
36V |
||
|
Voltage Accuracy |
±0.5V |
|||||
|
Rated current |
0-1.0A |
0-5.0A |
0-3.33A |
|||
|
Rated power |
120W |
120W |
120W |
|||
|
Ripple&noise Max. |
200mVp-p 350mVp-p |
250mVp-p 400mVp-p |
290mVp-p |
|||
|
Input |
Voltage Range |
100-130VAC，170-265VAC |
||||
|
Frequency Range |
47～63HZ |
|
||||
|
Power Factor ( Typ.） |
>0.90@110V ,220VAC |
>0.90@110V,220V |
||||
|
Full Load Efficiency（Typ.） |
>88% 86% 87% |
>88% 88% |
||||
|
AC Current（Typ.） |
1.263A/120VAC 0.891A/170VAC 0.689A/220VAC 0.572A/265VAC |
|||||
|
Leakage current |
﹤0.25mA/110V,220VAC |
|
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
|
Over voltage |
≦315VAC |
|||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||||
|
Environment |
Working TEMP. |
-40～+60℃ |
||||
|
Working Humidity |
20～95%RH,non-condensing |
|||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|||||
|
Safety&EMC |
Safety standards |
EN61347-2-13. IP67 |
||||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
|||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level （surge4KV） |
|||||
|
Others |
Weight |
1.32Kg |
||||
|
Size |
230*68.5*43mm（L*W*H） |
|||||
|
packing |
329*279*176mm/10pcs |
|||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||
Mechanical Specification
Input 18AWG*3C，the green/yellow cable connect with (FG)，Brown with AC (L),Blue with AC(N)
Signal 18AWG*2C，Red is（DIM+）,Black is（DIM-）
Output 18AWG*2C，Blown is output（V+）,Blue is output（V-）
