Waterproof Dimmable 12V 180W 200W LED Driver Manufactures for Outdoor LED Lighting

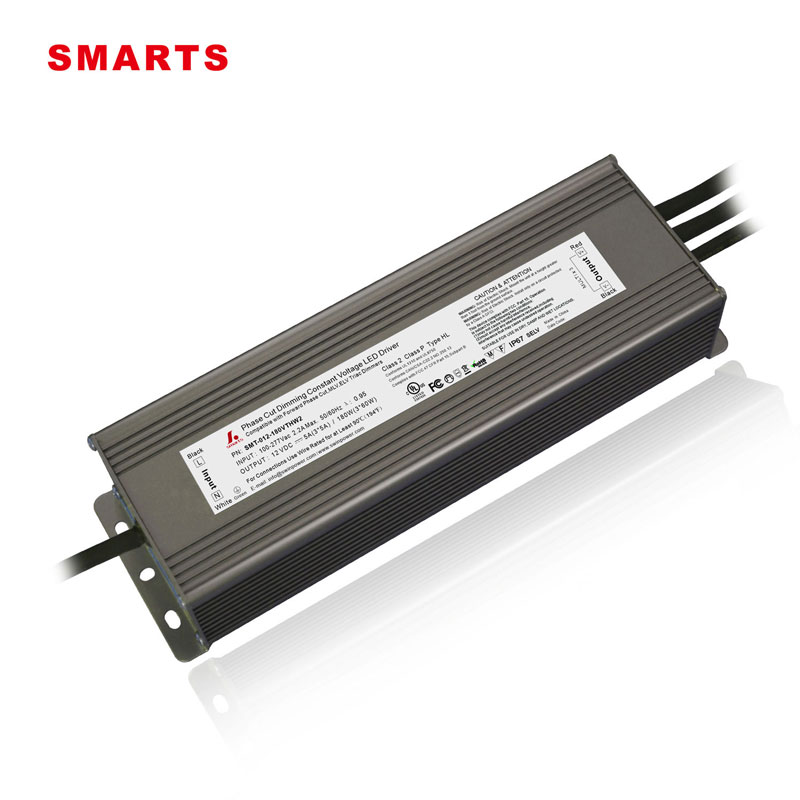

New Multi-Dim waterproof 12v driver 180 Watt (3 x 5A) Class 2 features outstanding LED dimming performance. 180W (3 x 60W) 12VDC Class 2 Dimmable LED Driver uses Pulse-Width Modulation (PWM) dimming for smooth dimming. 12VDC Dimmable driver is compatible with wide range of dimmers. Compatible with Forward phase, Magnetic low voltage, ELV, Triac Dimmers. FS-2835-2400-120-24-NS from lightsandparts can totally matched with our SMT-012-180VTHJV2 180w 200w dimmable led driver.
|
Model |
SMT-012-180VTHJ (1.0 version) SMT-012-180VTHJV2 (2.0 version) SMT-012-180VTHJWV2 (3.0 version) |
SMT-024-192VTHJ (1.0 version) SMT-024-192VTHJV2 (2.0 version) SMT-024-192VTHJWV2 (3.0 version) |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Voltage Tolerance |
±0.5V |
|||
|
Load Regulation |
±1% ±1% |
±1%
|
||
|
Rated current |
3*5A |
2*4A |
||
|
Rated power |
180W(3*60W) |
192W (2*96W) |
||
|
Input |
Voltage Range |
100-277VAC |
||
|
Frequency Range |
47～63HZ |
|||
|
Power Factor(Typ.)@full load |
0.99@120VAC 0.94@277VAC |
0.99@120VAC 0.94@277VAC |
||
|
THD(Typ.)@full load |
<20% |
|||
|
Inrush Current(Typ.) |
15A, 50%, 1.4ms |
|||
|
Full Load Efficiency（Typ.） |
86%@120VAC , 88%@277VAC |
87%@120VAC , 89%@277VAC |
||
|
AC Current（Typ.） |
2.2A@100VAC |
2.3A@100VAC |
||
|
Inrush Current (Typ.) |
19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC |
19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC |
||
|
Leakage current |
<0.50mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
||
|
Over loading |
≤120% constant current limiting, auto-recovery |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
|
Over Current |
≤1.4*I out |
|||
|
Environment |
Working TEMP. |
-40～+60℃ |
||
|
Working Humidity |
20～90%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz 2G 10min./1 cycle，period for 60min.each along X, Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
||
|
Withstand voltage |
I/P-O/P: 1.88KVAC |
|||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC Part 15 B |
|||
|
Others |
Weight |
2.3Kg |
||
|
Size |
1.0version: 278*108*46mm / 2.0version: 278*110*45mm / 3.0version: 278*130*45mm (L*W*H) |
|||
|
packaging |
340*210*245mm/8pcs /CTN G.W.:19.50KG/CTN (1.0 version)
385*335*200mm 20PCS/CTN |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation. |
|||
 |
 |
 |
 |
Mechanical Specification
1.0 version: SMT-012-180VTHJ , SMT-024-1920VTHJ
2.0 version : SMT-012-180VTHJV2 / SMT-024-192VTHJV2
3.0 version : SMT-012-180VTHJWV2 / SMT-024-192VTHJWV2
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output wire: 16AWG , Red is（DIM+）,Black is（DIM-）
※Class 2 standard output terminal. Three groups of cables for SMT-012-180VTHJ / SMT-012-
180VTHJV2 / SMT-012-180VTHJWV2 ; two groups for SMT-024-192VTHJ / SMT-024-288VTHJV2 / SMT-024-288VTHJWV2
Dimming Operation
※The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.
※Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
※To extend their life, please refer to the Derating Curve and derate according to the temperature.
Simple Connection Diagram
Compatible Dimmer Type
SMARTS's outdoor led lighting driver have been tested with DVWCL-153PH-LA fromLUTRON brnad. Dimmer Switch Single Pole/3 Way CFL/LED Diva C.L LED & CFL dimmable switch White Finish & Cover. This dimmer will run upto 150W of LED lights or 600W of incandescents/halogens.
 |
 |
Related Products
|
|
Swinpower is the most versatile and efficient dimmable led driver manufactures for single color output LED strips. This driver has a high power factor of up to 0.99, a universal input and perfect compatibility with a wide range of dimmers for flicker free lighting.
Mode：SMT-012-180VTHW2 intput voltage：100~277V AC Efficiency > 86% Size：455*87*60mm （L*W*H） Weight：1.5Kg/pcs |
