Home |Dimmer |

0-10v Dimmer

 |Wall Dimmer Switch 220v input PWM dimmer for 0-10v 1-10v

0-10v dimmer
0-10v dimmer 0-10v dimmer 0-10v dimmer 0-10v dimmer 0-10v dimmer

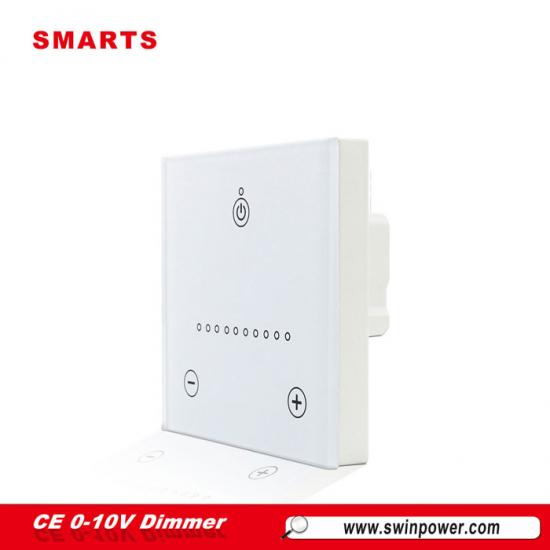

Wall Dimmer Switch 220v input PWM dimmer for 0-10v 1-10v

0-10v dimmer with white color cover, output current 50ma SMT50-T1 work with LED 0/1-10V DIM led driver.

  • Brand:

    SMARTS

  • Item No.:

    SMT50-D1

  • Input Voltage:

    100-265v

  • Output Voltage:

    0-10v

  • Output Current:

    50ma

  • Size:

    86*86*38mm

  • Certification:

    ce rohs
Inquiry now
Products description

Wall Dimmer Switch 220v input PWM dimmer for 0-10v 1-10v


Supply voltage : AC100-265V, Frequency: 50/60Hz, Product dimension: L86*W86*H38mm Wall Dimmer Switch



 Whai is the led driver quantity can load with one 0-10v dimmer?




Wall Dimmer Switch 220v
 If the led driver needs to absorb 0.5mA, then theoretically the 0-10v dimmer can control max. 100 at the same time. actually, we don't suggest to connect with such high quantity,  because the output voltage of this dimmer switch is constant 10Vdc. The voltage and length of sginal wires will cause voltage drop problem.
Click Send Email for Details
 Click skpye 24 hours Online Reply
 Scan to start our communication
Back to top



 Function Description


0-10v dimmer


Input Interface:AC100-265V input,supply power for the controller it takes.



Output Interface:DC0-10V output can control LED 0/1-10V DIM driver



 Typical Application


0-10v dimmer


 Installation Instruction


dimmer 230v




Leave a message
To know more our LED drivers/power supplies/LED transformers, pl. send email to us, we will reaply you soon.
