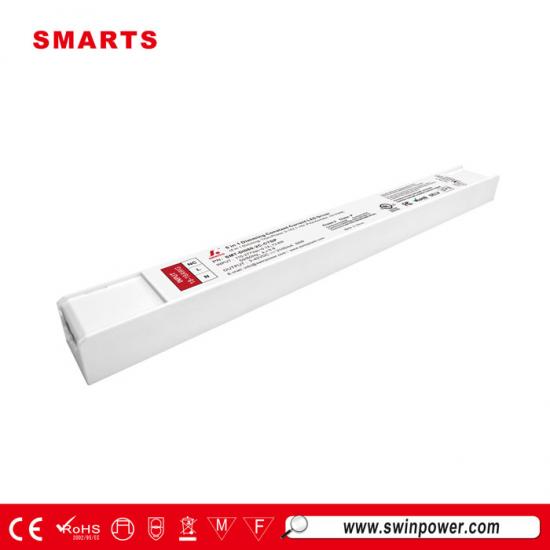

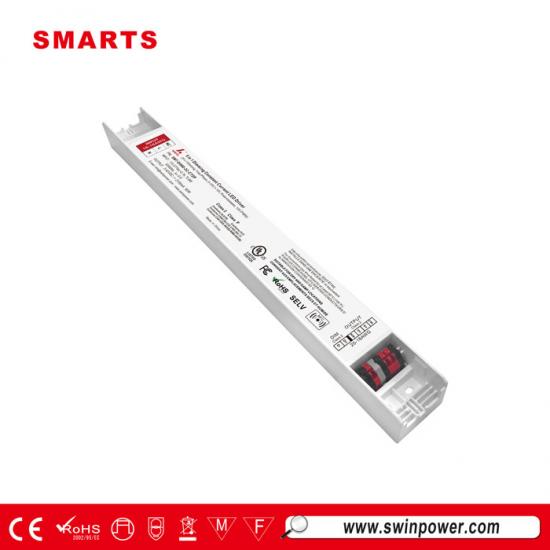

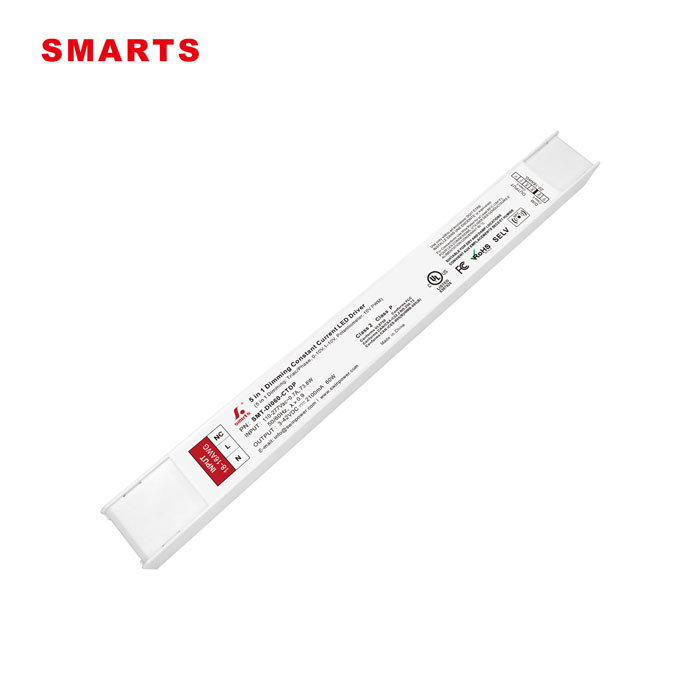

Ultra-thin triac & 0 10V dimmable LED driver uses constant current operation. Efficiency is up to 83%. The plastic housing is IP20 waterproof and suitable for indoor, dry environment lighting projects. Backed by a 7-year warranty.
Specification
| Model | SMT-DI060-2C-CTDP | |
| Certificate | UL / cUL / FCC / Class P | |
| Output | DC Voltage | 3-42V |
| Current Regulation | ±2% | |
| Current Ripple | <4% | |
| Overshoot Current | <0.1% | |
| Rated current | 500-2100mA(The output current can be adjusted arbitrarily within this range using NFC) | |
| Rated power | 60W | |
| Input | Voltage Range | 110-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) @ full load | >0.98@120VAC >0.92@277VAC | |
| THD(Typ. ) @ full load | ≤12%@120VAC ≤22%@277VAC | |
| Efficiency(Typ.) @ full load | >82%@120VAC >83%@277VAC | |
| AC Current (Max.) | 0.7A | |
| Inrush Current (Typ.) | 7.5A, 50%, 28us @120VAC; 14.5A, 50%, 60us @277VAC | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Constant current mode, can automatically recover after abnormal elimination |
| Over Load | ≤110% Hiccup mode,recovers automatically after fault condition is removed | |
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; Ambient temperature over 60℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; |
|
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) |
| Working Humidity | 20 - 90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10-500Hz, 2G 12 minutes/cycle, X, Y, Z axes each 72 minutes | |
| Safety & EMC | Safety standards | UL8750 CAN/CSA-C22.2 No.250.13 (US);E495946 |
| Withstand voltage | I/P-O/P: 3.75KVac | |
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | |
| Surge Immunity Test | AC Power Line:Differential Mode 2KV | |
| EMC Emission | FCC 47 CFR Part 15, Subpart B (US) | |
| Others | Net Weight | 0.3KG |
| Dimension | 324.7*34.8*24.1mm(L*W*H) | |
| Packing | 340*270*195mm 50pcs /CTN | |
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | |
| 2. Tolerance: includes set up tolerance and load regulation . | ||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||
|
|
 |
 |
 |

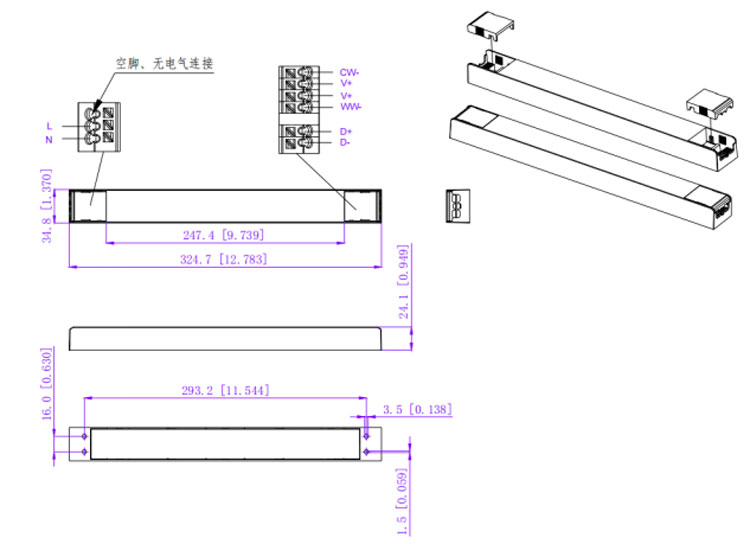

Mechanical Specification
| American wire gauge | |
| LD30 | |

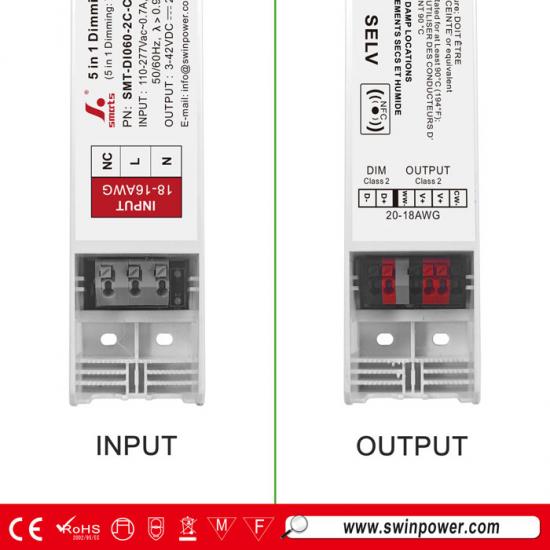

| Input wire (connecting terminal) | Cables with cross-sectional area of 18AWG can be used |
| Output wire (connecting terminal) | Cables with cross sectional areas of 20AWG can be used |
| Dimming wire (connecting terminal) | Cables with cross sectional areas of 20AWG can be used |
| Remarks: | |
Warm tips:
Recommended Max. Carrying Current (A) = wire diameter(mm2) x 10A/mm2.
For example: 1mm2output cable, Recommended Max. Carrying Current (A) = 1mm2 x 10A/mm2=10A

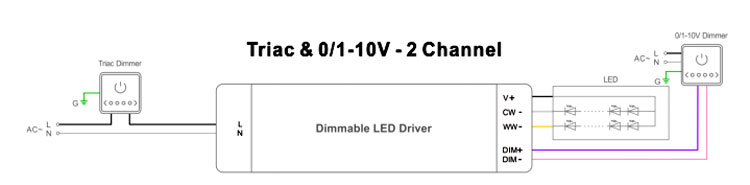

Dimming Connecting Diagram

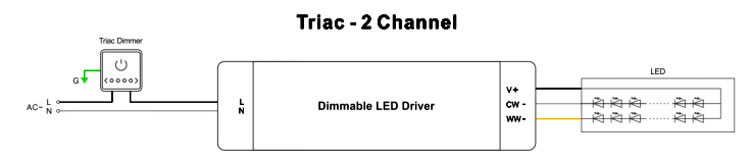

Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
Please try to use dimmers with power at least 2 times as the output power of the driver.
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3. Please try to use dimmers with power at least 2 times as the output power of the driver.

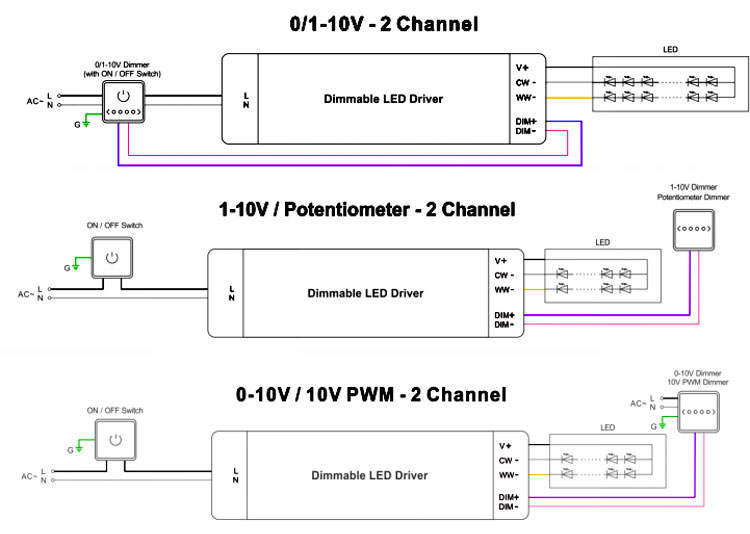

Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
NFC function：
For detailed operation, please refer to ProNFC app manual that request from the sales representative from Smarts Electronics.
1. Scan below QR code to download the ProNFC APP
Download Methods for ios device:
＊ ios users can download through the QRcode link (Figure 1)
＊ Search for the app name ProNFC in the App Store (Figure 2)
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Related Products
|
This plastic-encased 60W triac & 0-10V dimmable LED power supply operates in constant current mode. It's ideal for indoor LED lighting projects in small spaces. It complies with global safety lighting regulations and comes with a 7-year warranty.
Model: SMT-DI060-CTDP Input Voltage: 100-277Vac
Dimming Mode: triac & 0 10v dimmable
|
