UL constant voltage triac dimmable led driver 0 10v power supply 12v 100w price

SMT-CV12100-VTDHV3 100W dimmable led power supply is specially designed with a paddle to select the dimming mode Push up: PWM output mode, Push middle: CW output mode, Push down: Voltage reduce mode, it can be well connected with the ustellar led strip to achieve no flickering Dimming
  • Brand:

    SMARTS
  • Item No.:

    SMT-CV12100-VTDHV3
  • Input Voltage:

    100-277Vac
  • Dimming Mode:

    CCT & 5 in 1(Triac 0-10V 1-10V Registor 10V PWM) Dimmable
  • Output:

    Dual channel (2 colors)
  • Working Mode:

    Constnat Voltage LED Driver
  • Shape & Size:

    J-BOX Driver
  • Size:

    226.5*117.5*42.5mm
  • Weight:

    1kg
  • Certification:

    UL
  • Warranty:

    7 Years
Products description


UL constant voltage triac dimmable led driver 0 10v power supply 12v 100w price


smarts Triac/0-10V/1-10V/10V PWM/Potentiometer dimming led power supply is suitable for dual-channel CCT warm dimming LED strips, UL certified and passed the North American Lighting Safety Regulations, suitable for commercial lighting projects, 100W with superior lighting LED downlight is well compatible



  Specifications


Model Number SMT-CV12100-VTDHV3 SMT-CV24100-VTDHV3
OUTPUT
Rated Power 100W 100W
Rated Voltage 12V 24V
Rated Current 8.33A 4.15A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) 0.98@120VAC  0.95@277VAC  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 85%@120VAC   86%@277VAC 86% @ 120VAC  87% @277VAC
AC Current(Typ.) 1.3A
Inrush Current(Typ.) 27A, 50%, 700us @120VAC;   15A, 50% , 550us @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 226.5*117.5*42.5mm (L*W*H)
Packing 10pcs/CTN     G.W:11.2KG   SIZE:275*255*250mm
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification

  Dimming Operation

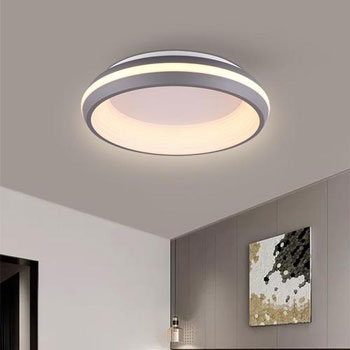

  Compatible Lighting Type

UL certified 5 in 1 (triac & 0 10v) dimmable led driver 100W 12V input voltage 100-277vac, Short-circuit, over-temperature, over-load protection safe and reliable
