96W 12 volt constant voltage triac dimmable led light strip power driver integrated junction box

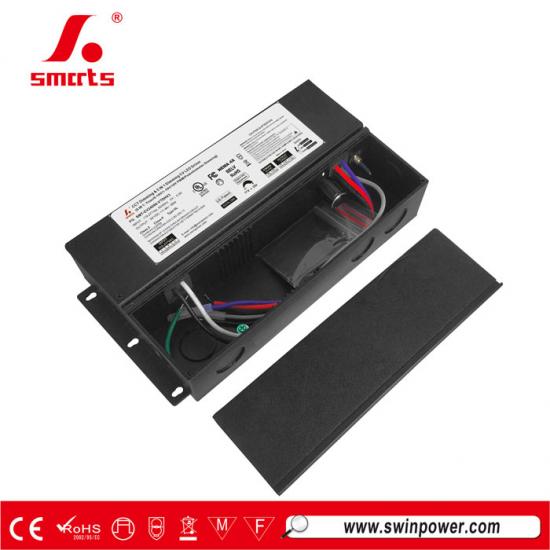

SMT-CV24096-VTDHV3 is a new 24v 96W LED Triac/0-10V/1-10V/10V PWM/Potentiometer dimming driver with Switch to PWM or Voltage Reduce output ref To Unique Selling Points, works well with Amax Lighting's LED downlight ground compatible
Specifications
| Model Number | SMT-CV24096-VTDHV3 | |
| OUTPUT | ||
| Rated Power | 96W | |
| Rated Voltage | 24V | |
| Rated Current | 4.0A | |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| INPUT | ||
| Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | |
| Power Factor(typ.) | 0.95 @120VAC 0.93 @277VAC Full load | |
| Total Harmonic Distortion | THD< 20%@120VC/277VAC; | |
| Efficiency(Typ.) | 83%@120Vac 86%@277Vac | |
| AC Current(Typ.) | 1.3A | |
| Inrush Current(Typ.) | 27A, 50%, 700us @120VAC; 15A, 50% , 550us @277VAC | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION | ||
| Short Circuit | Shut down o/p voltage, re-power on to recovery | |
| Over Load | ≤120% shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 ℃ | |
| Max. Case Temp. | Tcase=+90℃ | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||
| Dimension | 226.5*117.5*42.5mm (L*W*H) | |
| Packing | 10pcs/CTN G.W:11.2KG SIZE:275*255*250mm | |
 |
 |
 |
 |
Mechanical Specification
Dimming Operation
Compatible Lighting Type
UL certified smarts new 5 in 1 dimming led driver with flicker-free 100%-0.01% ultra-deep dimming, built-in fine-tuning voltage knob, also compatible with pwm and step-down output, complete functions to meet various needs of users
Related Products
|
|
triac dimming led driver UL certification input voltage 277vac, aluminum shell waterproof grade ip67, can effectively prevent insects and dust
Mode：SMT-024-096VTHW intput voltage：100~277V AC Certification: UL cUL Size：230*70*46（L*W*H） Weight：1.1kg/pcs |
