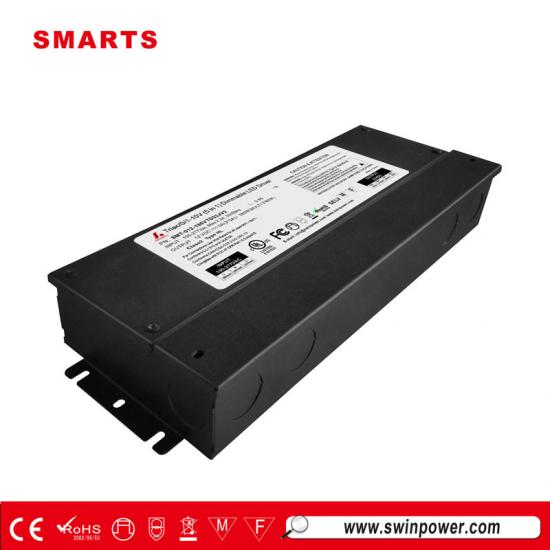

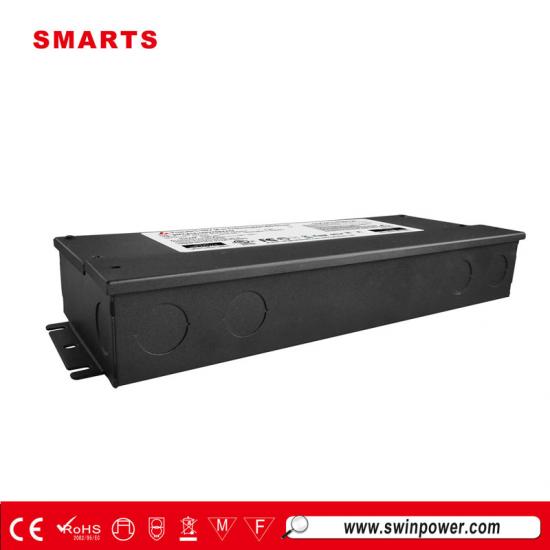

triac and 0-10v dimmable led strip light driver 180w 12v class 2 standard

5 in 1 dimmable led strip light driver are compatible with both forward phase (leading edge, triac, incandescent) and reverse phase (electronic low voltage, ELV, and trailing edge Lutron dimmer PD-6WCL-WH.

  • Brand:

    SMARTS
  • Item No.:

    SMT-012-180VTD52JV2
  • Input Voltage:

    100-277v
  • Output Voltage:

    12/24vdc
  • Output Current:

    15A
  • Working Mode:

    constant voltage
  • Dimming mode:

    5 in 1 dimming
  • Size:

    278*110*45mm (L*W*H)
  • Certification:

    UL(E507826),CE,FCC,ROHS approval
Products description

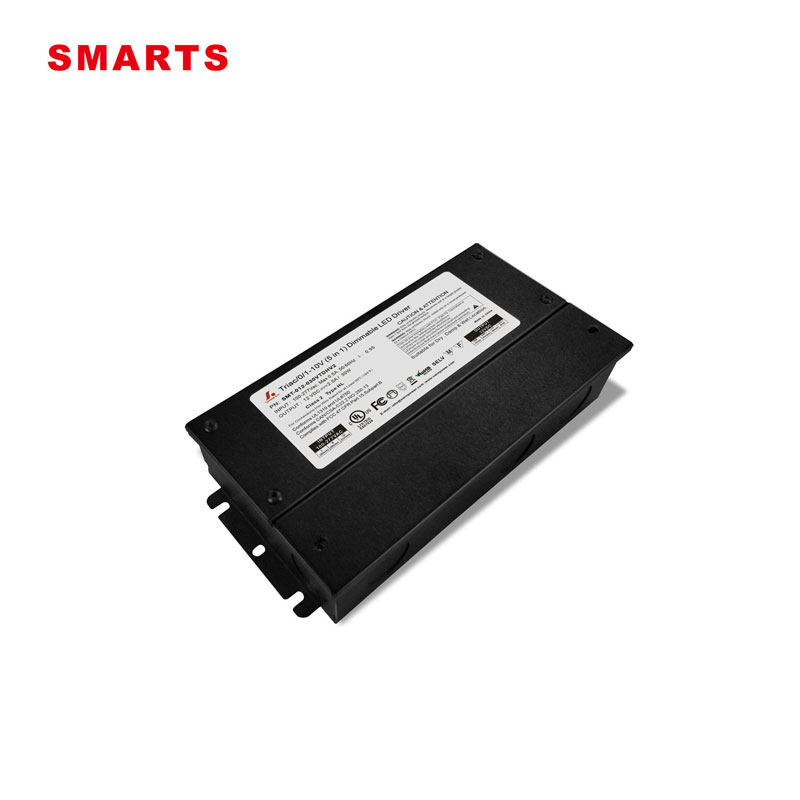

triac and 0-10v dimmable led strip light driver 180w 12v class 2 standard


Ul listed 12v power supplyis safety features include automatic shut-off in case of lighting overload, open circuit, short circuit, over-temperature or other faults; the unit will automatically restart after the fault is corrected, matching well with Lutron dimmer switch PD-6WCL-WH-R.

  Specification


Model

SMT-012-180VTD52JV2 (1.0 version)SMT-012-180VTD52JWV2 (2.0 version)

SMT-024-192VTD52JV2 (1.0 version)

SMT-024-192VTD52JWV2 (2.0 version)

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Voltage Tolerance

±0.5V



Load Regulation

±1%

±1%

±1%





Rated current

3*5A

2*4A



Rated power

180W(3*60W)

192W (2*96W)

Input

Voltage Range

100-277VAC



Frequency Range

4763HZ



Power Factor(Typ.)@full load

0.99@120VAC  0.94@277VAC

0.99@120VAC  0.94@277VAC



THD(Typ.)@full load

<20%



Inrush Current(Typ.)

15A, 50%, 1.4ms



Full Load

EfficiencyTyp.

86%@120VAC , 88%@277VAC

87%@120VAC , 89%@277VAC



AC CurrentTyp.

2.2A@100VAC

2.3A@100VAC



Inrush Current (Typ.)

19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC

19A (twidth=1.3ms) @120VAC ; 38A (twidth=960us) @277VAC



Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed



Over loading

≤120% constant current limiting, auto-recovery



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Over Current

≤1.4*I out

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz 2G 10min./1 cycleperiod for 60min.each along X,

Y,Z axes







Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P: 1.88KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B

Others

Weight

2.3Kg



Size

1.0version: 278*110*45mm / 2.0version: 278*130*45mm (L*W*H)



packaging

340*210*245mm/8pcs /CTN    G.W.:19.50KG/CTN (1.0 version)





385*335*200mm     20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature.

2..Tolerance:includes set us tolerance,line regulation and load regulation.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

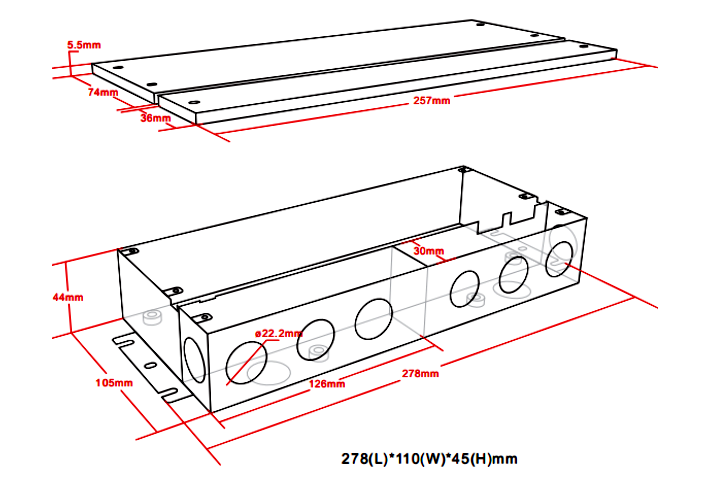

   Mechanical Specification


dimmable led strip light driver

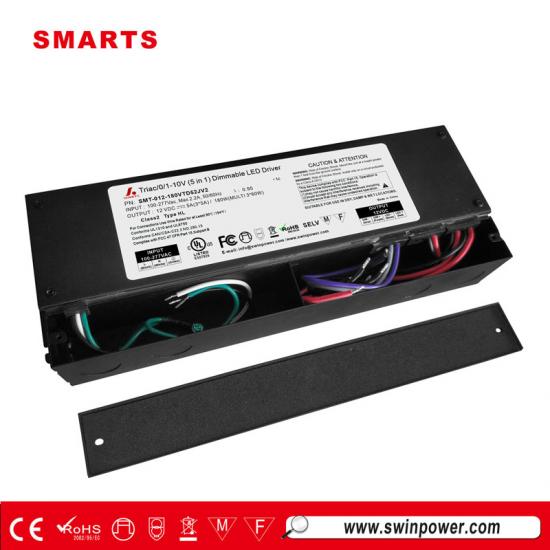

Input wire Black and White to be connected to AC L and N ,Green wire go ground,

Output wire Red to LED Positive side (+) , Black  to LED Negative side (-).

Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)


  Compatible Dimmer Type

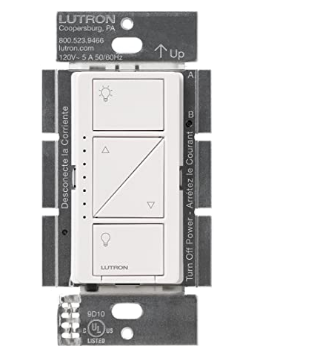

Lutron Caseta Wireless dimmer switch PD-6WCL-WH-R and remote control suite for wall and ceiling lights, available with SMT-012-180VTD52JV2 constant voltage dimming driver.
