triac and 0-10v dimmable class 2 power supply for led strip lighting

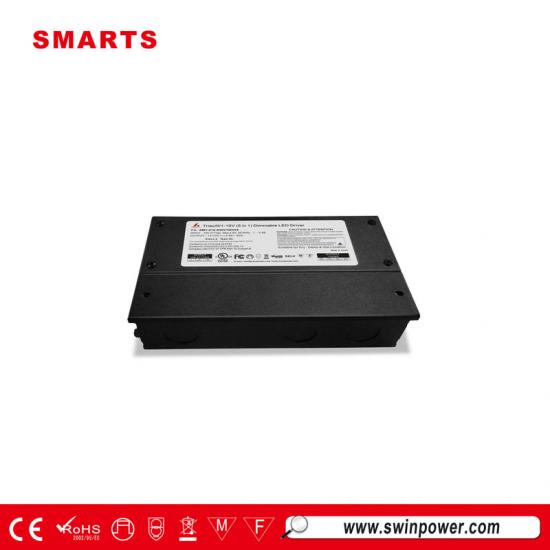

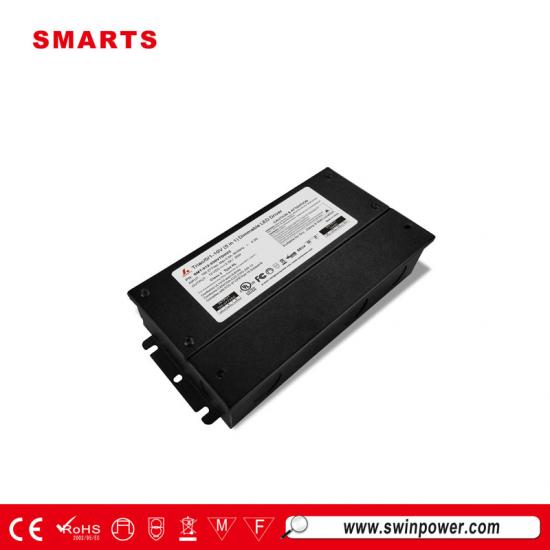

277VAC, triac/0-10V/1-10V/Potentiometer/10V PWM (5 in 1) dimmable class 2 power supply for led lighting. SMT-012-030VTDHV2 with Lutron dimmer DIVA 300w model can dim strips to the greatest extend.
Specification
|
model |
SMT-012-030VTDHV2 |
SMT-024-030VTDHV2 |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Rated current |
2.50A |
1.250A |
|
|
Voltage Tolerance |
±0.5V |
|
|
|
Load Regulation |
±1%
|
|
|
|
Rated power |
30W |
30W |
|
Input |
Voltage Range |
100-277V AC |
|
|
|
THD（Typ.）@ full load |
<20% |
|
|
|
AC Current（Max.） |
0.5A@100Vac |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Inrush Current （Typ.） |
7A, 50%, 420us @120Vac 12A, 50%, 480us @277Vac |
|
|
|
Leakage current |
<0.50mA |
|
|
|
Power Factor ( Typ.） |
0.99@120VAC 0.98@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
Full Load Efficiency（Typ.） |
79% @120Vac 80%@277Vac 79% |
79% @120Vac 80%@277Vac
|
|
protection |
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|
|
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC Part 15 B |
|
|
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level （surge4KV） |
|
|
Others |
Weight |
About 1.1Kg |
|
|
|
Size |

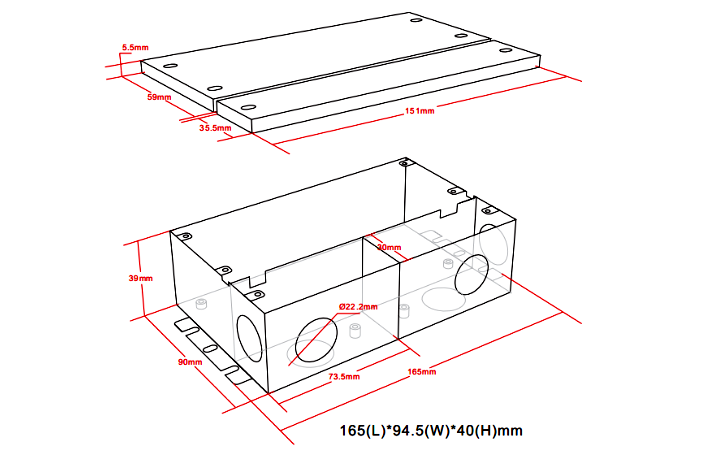

165*94.5*40mm （L*W*H） |
|
|
|
packing |
10PCS/CTN （L*W*H） |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |
Mechanical Specification

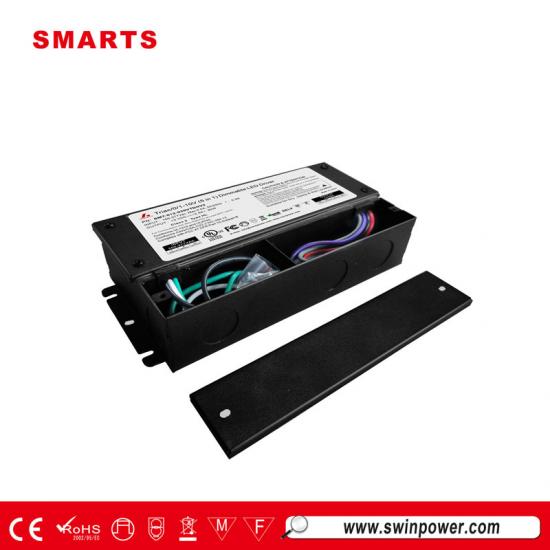

Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Compatible Dimmer Type

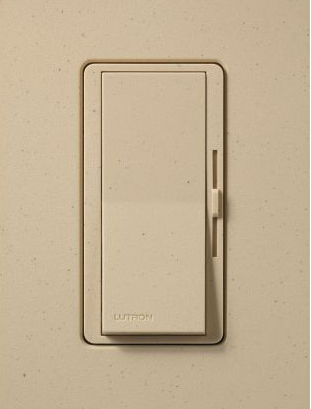

SMT-012-030VTDHV2 waterproof led power supply 12v 30w could be used well with LUTRON dimmer DVSC-600P-SW to achieve smooth dimming effect.
 |
|
Related Products
|
Connect up to 100% of the rated 30-watt maximum load – derating performance is not required class 2 power supply for led lighting.

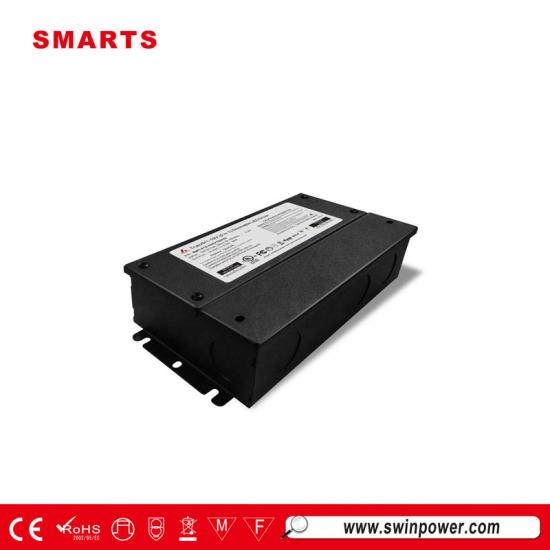

Mode：SMT-012-300VTHJWV2 (5*5A) intput voltage：100~277V AC pfc > 0.99 Size：301*140*45mm （L*W*H）
UL/cUL,FCC,RoHS approval
|
