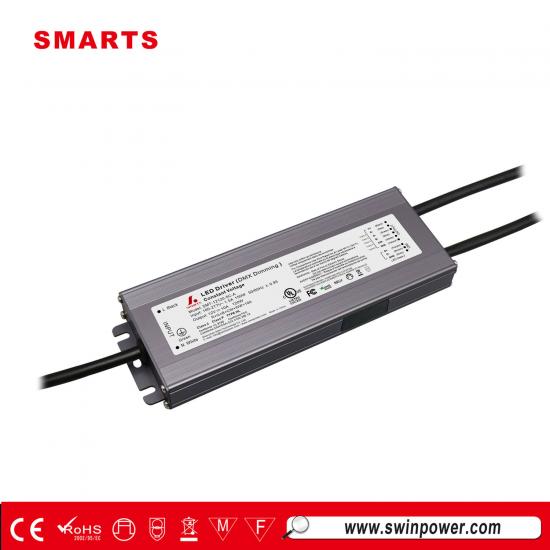

Led lamp driver 24V 120W 1-5channel choose DMX512 led driver

Model

SMT-12120-XC-A

SMT-24120-XC-A

X=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT (RGBCW)

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Rated current

CH1+CH2+CH3+CH4+CH5=10.0A

CH1+CH2+CH3+CH4+CH5=5.0A

Rated power

120W

Load Regulation

±2%

Input

Voltage Range

100-277VAC

Frequency Range

47 - 63Hz

Power Factor（Typ.@ full load

PF≥0.98/ 230VAC  (Full loading)

THD（Typ.）@ full load

<15%

Efficiency（Typ.）@ full load

89% @230VAC

89%@230VAC

AC Current（Max.）

1.3A

1.3A

Inrush Current （Typ.）

48.5A,164us@50%Ipeak

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed

Over Load

≤120% ,hiccup model, recover automatically after fault condition is removed

Over temperature

≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop

Protection Class

II

Environment

Working TEMP.

-40～+60℃ (see below derating curve)

Working Humidity

20 - 95%RH ,non-condensing

Storage TEM.,Humidity

-40 - +80℃，10 - 95%RH

TEMP.coefficient

±0.03%/℃（0 - 50℃）

Vibration

10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)

Isolation resistance

I/P-O/P：100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)

EMC Immunity

EN61000-4-2,3,4,5,6,11      EN61547

Others

Net Weight

0.80KG

Dimension

230*78*25mm (L*W*H)

packing

Carton size: 300*280*215mm;  10PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and

25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
