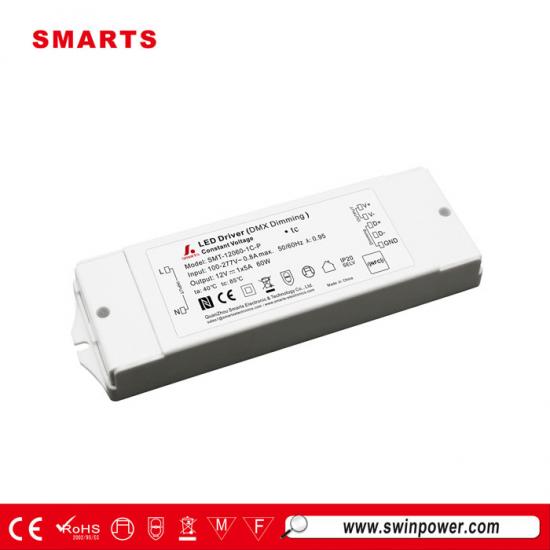

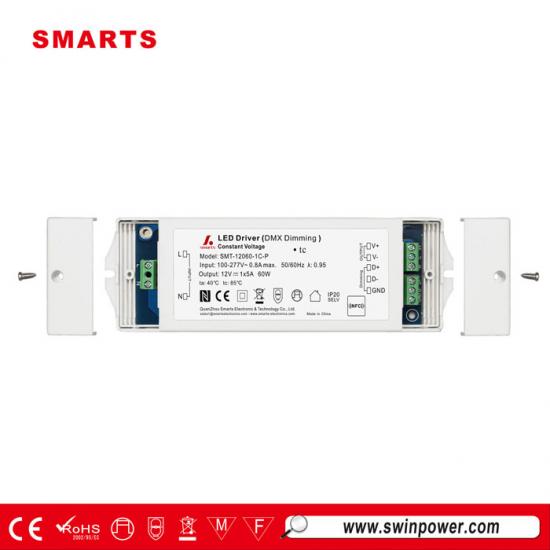

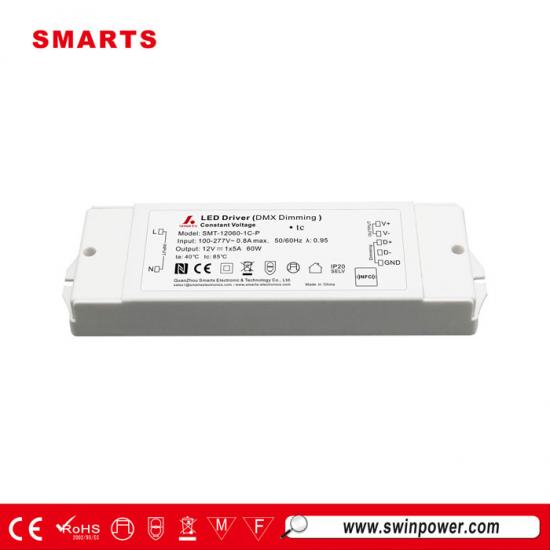

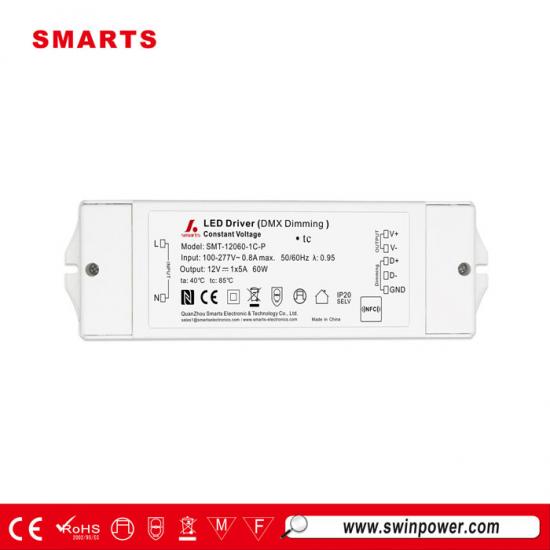

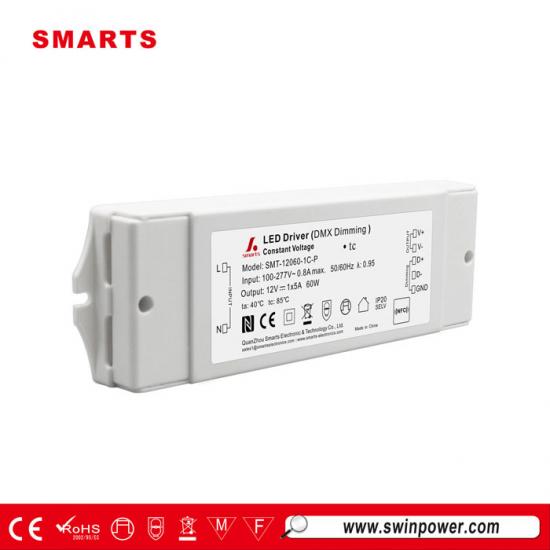

UL CE Rosh listed constant voltage DMX512 dimmable 12v 24v 60w led driver for stage light

SMT-12060-1C-P is a 12v 60w DMX512 Dimmable LED Driver which has gotten 7 years warranty and is mainly used in controling pack light, such as TORY 60W MINI BEE EYE MOVING HEAD Light.

  • Brand:

    SMARTS
  • Item No.:

    SMT-12060-1C-P
  • Input Voltage:

    100-277V
  • Output Voltage:

    12V / 24V
  • Output Current:

    5A / 2.5A
  • Working Mode:

    Constant voltage
  • Dimming mode:

    DMX512
  • Size:

    192.5*62*24mm (L*W*H)
  • Certification:

    CE UL FCC ROSH
Products description

UL CE Rosh listed constant voltage DMX512 dimmable 12v 24v 60w led driver for stage light


SMARTS manufacturer SMT-12060-1C-P This is IP20 plastic case 12v 60w dmx led drivers with one channel putput. It performs extremely well with 12v STAGELIGHT K9 PUP RGB light.


  Specification


Model

SMT-12030-1C-P

SMT-24030-1C-P

X=1,2 for DIM (DW);  CCT(TW)

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Rated current

CH1+CH2=5A

CH1+CH2=2.5A

Rated power

60W  (class 2 power units)

Load Regulation

±2%

Input

Voltage Range

100-277VAC

Frequency Range

47 - 63Hz

Power Factor(Typ.)@ full load

PF≥0.98/ 230VAC  (Full loading)

THD(Typ.)@ full load

≤15%@120VAC @230VAC @277VAC

Efficiency(Typ.)@ full load

89% @230VAC

87%@230VAC

AC Current(Max.)

0.8A

0.8A

Inrush Current (Typ.)

36.4A,164us@50%Ipeak

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed

Over Load

≤120% ,hiccup model, recover automatically after fault condition is removed

Over temperature

≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop

Protection Class

II

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20 - 90%RH ,non-condensing

Storage TEM.,Humidity

-40 - +80℃,10 - 95%RH

TEMP.coefficient

±0.03%/℃(0 - 50℃)

Vibration

10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes





Safety&EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)

Withstand voltage

I/P-O/P:3.75KVAC (EU) &  I/P-O/P:1.5KVAC (US)

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC Emission

EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)

EMC Immunity

EN61000-4-2,3,4,5,6,11      EN61547

Others

Net Weight

0.35KG

Dimension

192.5*62*24mm (L*W*H)

packing

290*215*140mm/20PCS/CTN    G.W.:8.3KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and

25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

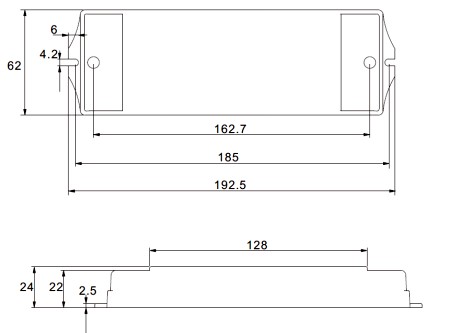

  Dimension:

24v constant voltage dimmable led driver


  Compatible RGB LED Strips Type


SMARTS SMT-12060-1C-P DMX 12v 60w LED driver can be used in construction and reconstruction of high-performance lighting systems for offices and administrative buildings, it can perform well with LEPRO 12v RGB Strip light.
