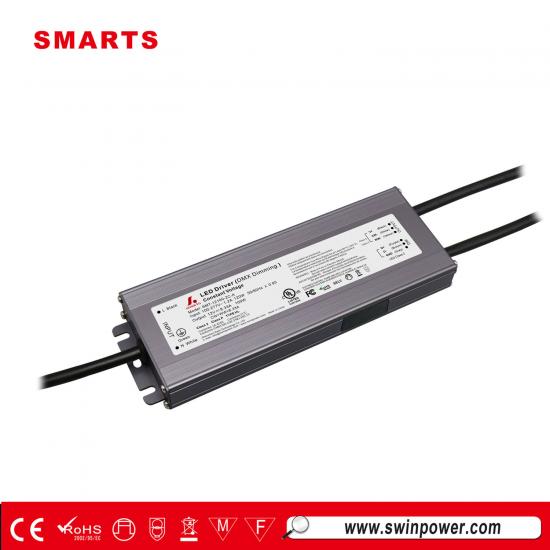

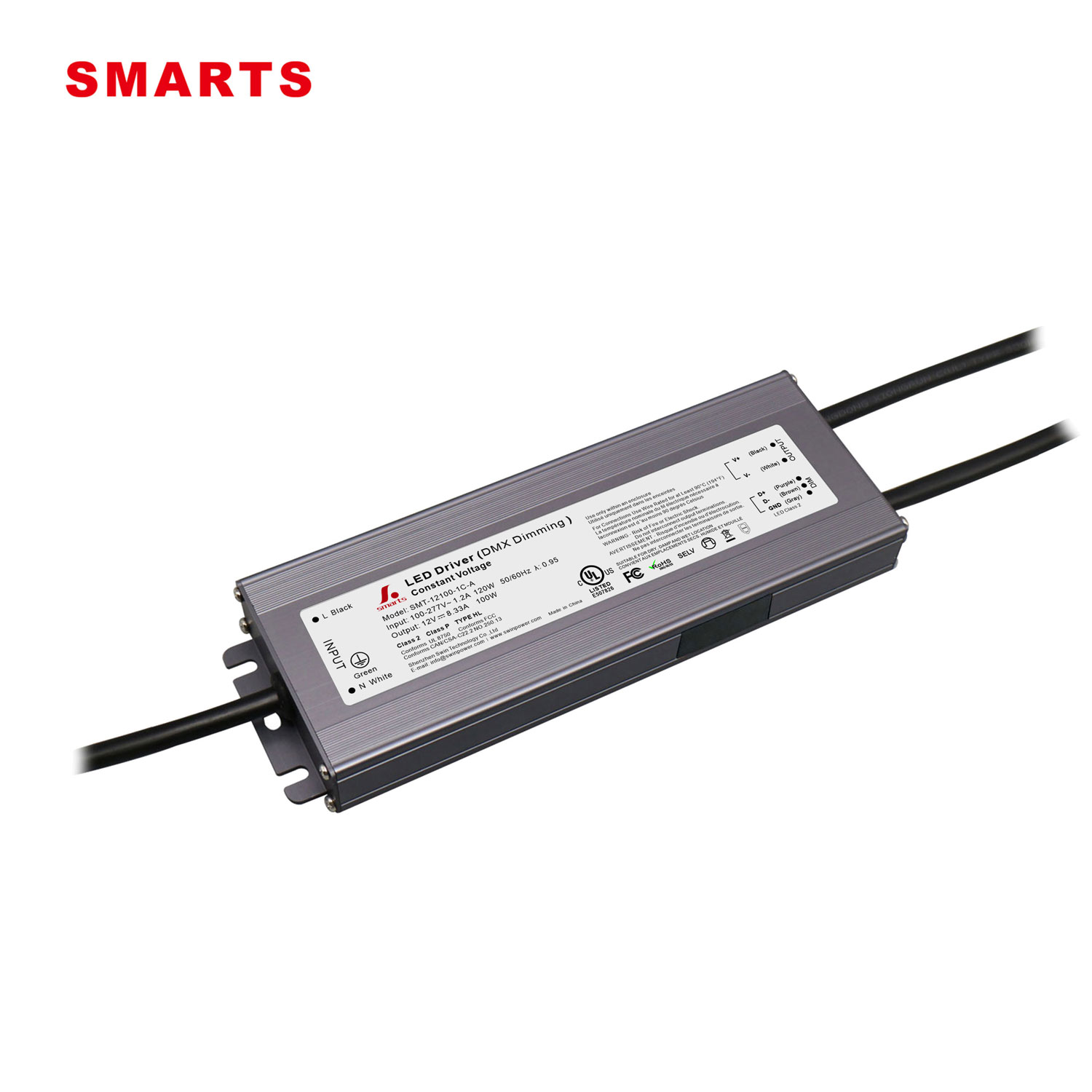

dmx driver dual output 12 volt dc power supply 100w for led lights

The Class 2 DMX led power supply 12v 100w is specifically designed to work with Luminii RGBW LineLED or modules and controls 100 watt using standard DMX512.

  • Brand:

    SMARTS
  • Item No.:

    SMT-12100-2C-A
  • Input Voltage:

    100-277v
  • Output Voltage:

    12vdc
  • Output Current:

    8.33A
  • Working Mode:

    constant voltage
  • Dimming mode:

    DMX dimming
  • Size:

    230*78*25mm (L*W*H)
  • Certification:

    UL(E507826),CE,FCC,ROHS approval
Products description

dmx driver dual output 12 volt dc power supply 100w for led lights


DMX led power supply 12v 100w with ntuitive user interface allows configuration of the number of channels, DMX settings for network mode and show, color and dim values for standalone operation. Suitable For Altman stage lighting.


  Specification

Model

SMT-12100-XC-A

SMT-24100-XC-A

X=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT (RGBCW)

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Rated current

CH1+CH2+CH3+CH4+CH5=8.3A

CH1+CH2+CH3+CH4+CH5=4.17A



Rated power

100W



Load Regulation

±2%

Input

Voltage Range

100-277VAC



Frequency Range

47 - 63Hz



Power FactorTyp.@ full load

PF0.98/ 230VAC  (Full loading)



THDTyp.@ full load

<15%



EfficiencyTyp.@ full load

89% @230VAC

89%@230VAC



AC CurrentMax.

1.3A

1.3A



Inrush Current Typ.

48.5A,164us@50%Ipeak



Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed



Over Load

≤120% ,hiccup model, recover automatically after fault condition is removed



Over temperature

≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop



Protection Class

II

Environment

Working TEMP.

-40+60℃ (see below derating curve)



Working Humidity

20 - 95%RH ,non-condensing



Storage TEM.,Humidity

-40 - +80℃10 - 95%RH



TEMP.coefficient

±0.03%/℃0 - 50℃



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)



Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC Emission

EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)



EMC Immunity

EN61000-4-2,3,4,5,6,11      EN61547

Others

Net Weight

0.80KG



Dimension

230*78*25mm (L*W*H)



packing

Carton size: 300*280*215mm;   20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and

25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


   Mechanical Specification

12 volt dc power supply for led lights

I

Input Rubber cable 3*1.0mm²(VDE approval), the Y/G cable connect with (FG) , Brown with AC (L), Blue with AC(N)  (EU)

  Input SJOW Rubber cable 3*18AWG (UL approval), the green cable connect with (FG) ,Black with AC (L), White with AC(N)  (US)



Dimming cable  Purple (D+), Brown (D-) and Gray (GND) connect to DMX dimmer / system.


DIM (DW) dimming:  Rubber cable

Black is output ( V+) Positive, White is output (V-) negative

CCT (TW) dimming:  1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative

RGB dimming:  1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative

RGBW dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative

RGB+CCT dimming:1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (CW-) and Yellow (WW-) are output (V-) negative.;


Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
