dmx dimmable led drivers ac to dc power supply 12v 100w

The DMX led driver 12v 100w used in controlling DMX LED lights, has been primarily used in theatrical or Loycco stage lighting in the past, but is also now being used more and more in architectural and other lighting uses.

  • Brand:

    SMARTS
  • Item No.:

    SMT-12100-1C-A
  • Input Voltage:

    100-277v
  • Output Voltage:

    12vdc
  • Output Current:

    8.33A
  • Working Mode:

    constant voltage
  • Dimming mode:

    DMX dimming
  • Size:

    230*78*25mm (L*W*H)
  • Certification:

    UL(E507826),CE,FCC,ROHS approval
Products description

dmx dimmable led drivers ac to dc power supply 12v 100w


DMX dimmable led drivers can now be found in everything from Christmas light strings to electronic billboards. DMX, short for Digital Multiplex, has multiple control channels, with LED drivers for Alloy LED DMX lighting being offered here featuring 2, 3 and 4 control channels.



  Specification

Model

SMT-12100-XC-A

SMT-24100-XC-A

X=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT (RGBCW)

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Rated current

CH1+CH2+CH3+CH4+CH5=8.3A

CH1+CH2+CH3+CH4+CH5=4.17A



Rated power

100W



Load Regulation

±2%

Input

Voltage Range

100-277VAC



Frequency Range

47 - 63Hz



Power FactorTyp.@ full load

PF0.98/ 230VAC  (Full loading)



THDTyp.@ full load

<15%



EfficiencyTyp.@ full load

89% @230VAC

89%@230VAC



AC CurrentMax.

1.3A

1.3A



Inrush Current Typ.

48.5A,164us@50%Ipeak



Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed



Over Load

≤120% ,hiccup model, recover automatically after fault condition is removed



Over temperature

≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop



Protection Class

II

Environment

Working TEMP.

-40+60℃ (see below derating curve)



Working Humidity

20 - 95%RH ,non-condensing



Storage TEM.,Humidity

-40 - +80℃10 - 95%RH



TEMP.coefficient

±0.03%/℃0 - 50℃



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)



Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC Emission

EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)



EMC Immunity

EN61000-4-2,3,4,5,6,11      EN61547

Others

Net Weight

0.80KG



Dimension

230*78*25mm (L*W*H)



packing

Carton size: 300*280*215mm;   20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and

25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

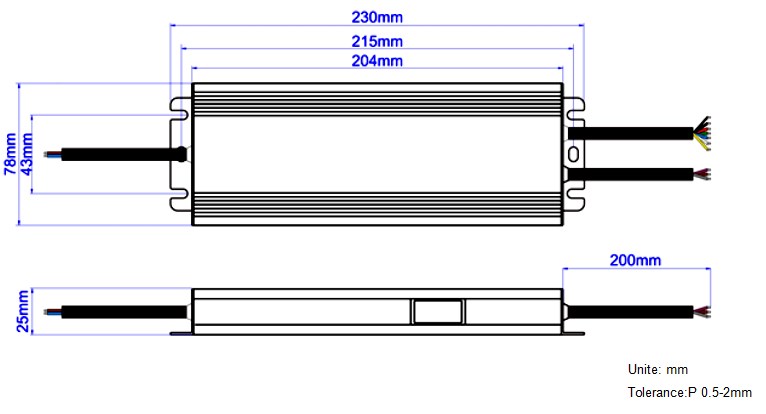

   Mechanical Specification


dimmable led drivers


Input Rubber cable 3*1.0mm²(VDE approval), the Y/G cable connect with (FG) , Brown with AC (L), Blue with AC(N)  (EU)

Input SJOW Rubber cable 3*18AWG (UL approval), the green cable connect with (FG) ,Black with AC (L), White with AC(N)  (US)



Dimming cable  Purple (D+), Brown (D-) and Gray (GND) connect to DMX dimmer / system.


Output cable to be connected to LED Light;

DIM (DW) dimming:  Rubber cable

Black is output ( V+) Positive, White is output (V-) negative

CCT (TW) dimming:  1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative

RGB dimming:  1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative

RGBW dimming:1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative

RGB+CCT dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (CW-) and Yellow (WW-) are output (V-) negative.;



Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.



  Compatible Tape Light Type


Colorbeamlighting smart led strip lights waterproof used grade silicone material, it is corrosion and weather-resistant, waterproof. It's flexible and freely bendy, you can safely install them with adhesive 3M tape on any surfaces, dimmed by DMX dimmable led drivers make a brighter illumination.


dimmable led drivers


  Related Products


dimmable led drivers l

100-277VAC wide input voltage,

RDM (Remote Device Management) function, NFC function dimmable led drivers, controlled by mobile APP or special NFC device.




Mode:SMT-12100-2C-A

intput voltage:100~277V AC

pfc > 0.98

Size:230*78*25mm   (L*W*H)

UL/cUL,FCC,RoHS approval



Leave a message
To know more our LED drivers/power supplies/LED transformers, pl. send email to us, we will reaply you soon.
