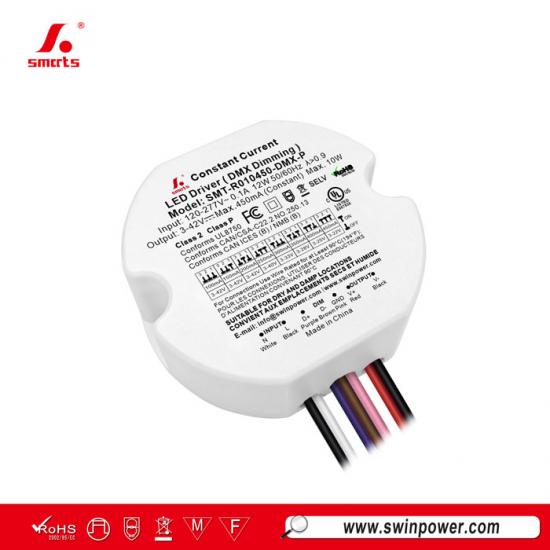

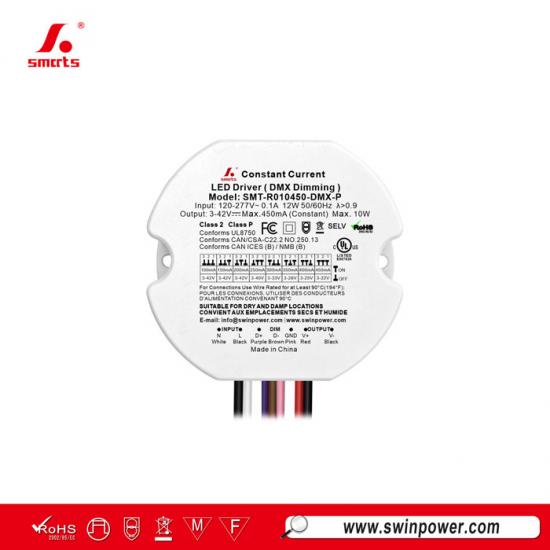

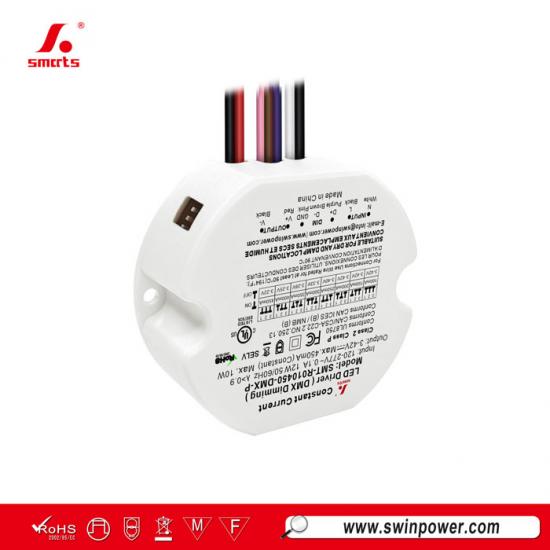

15W DMX512 Dimmable Constant Current Round LED Driver for led lighting
This 15W DMX512-dimmable constant-current driver is perfectly suited for a wide range of applications. It features DIP switches for setting the output current between 150mA and 500mA, supports remote addressing via the RDM protocol, and enables flicker-free dimming from 1% to 100%. Housed in a compact, circular plastic enclosure, the unit allows for quick installation in both dry and damp environments; its convection-based cooling design ensures completely silent operation. A 7-year warranty is included.

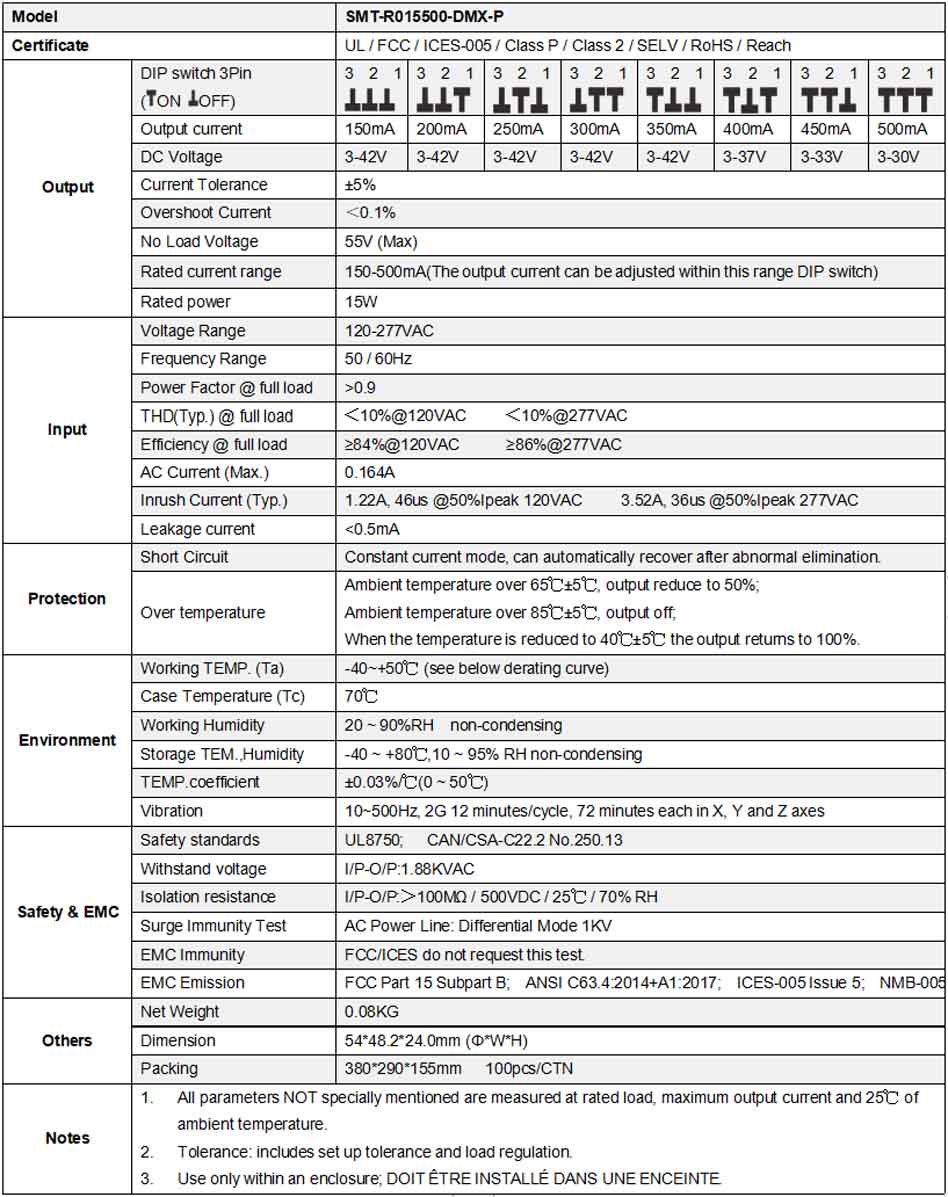

Specification
|
|
 |
 |
 |

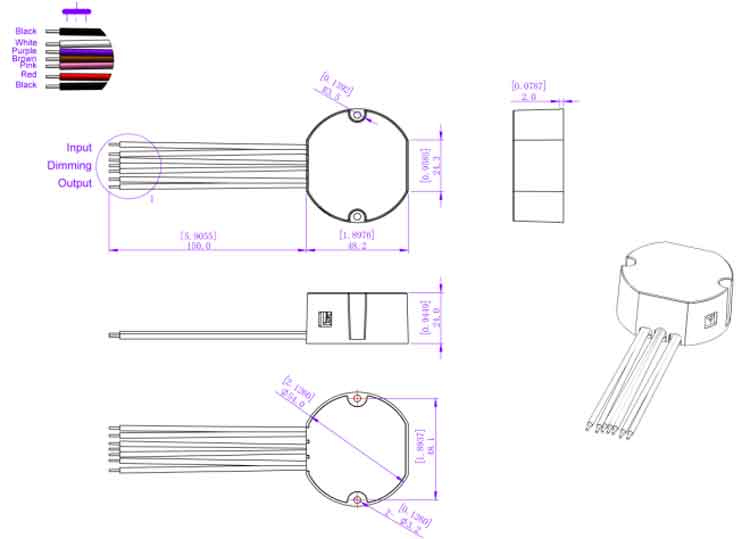

Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |

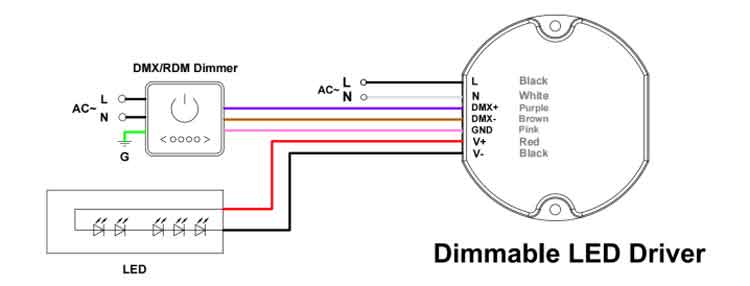

Dimming Operation
Related Products
|

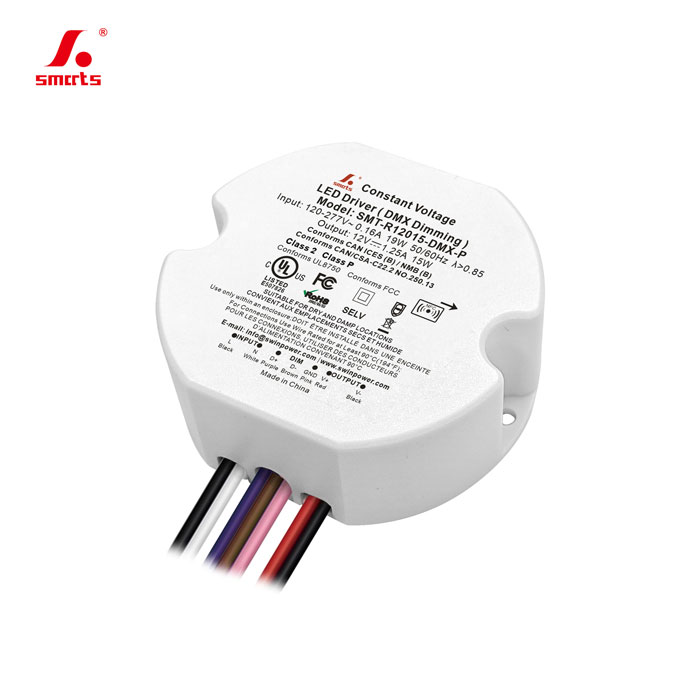

DMX512 dimming led power supply to under-cabinet runs, display cases, and small signage with the 15W constant-voltage round driver. It dims flicker-free across a 1–100% range at 1% depth, ready for scene cues and dynamic displays.
