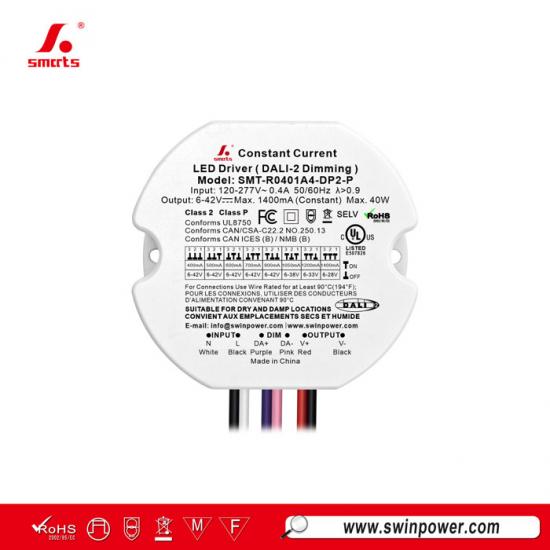

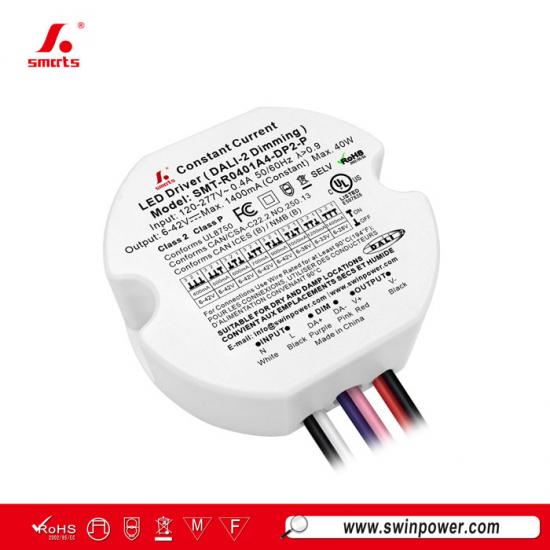

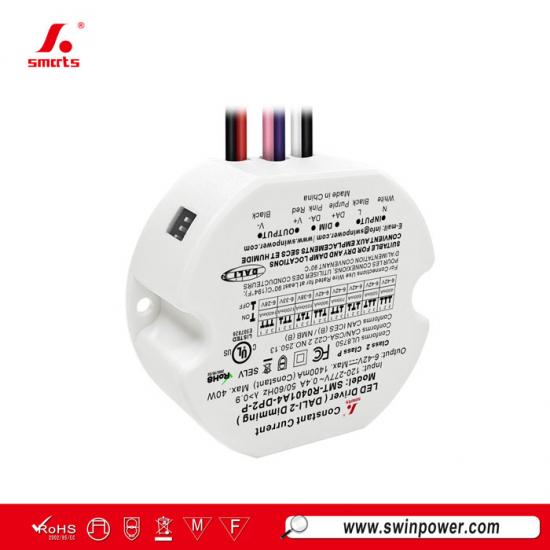

High Output 40W DALI-2 Dimmable Constant Current Round LED Driver for led lighting
the 40W constant-current driver steps in. Adjust 400–1400mA by DIP switch to match the load, then dim flicker-free from 1% to 100% for showrooms, lobbies, and retail displays. The compact plastic housing fits where bulky units can't, rated for dry and damp locations. Silent convection cooling, no fans to fail — 7-year warranty.

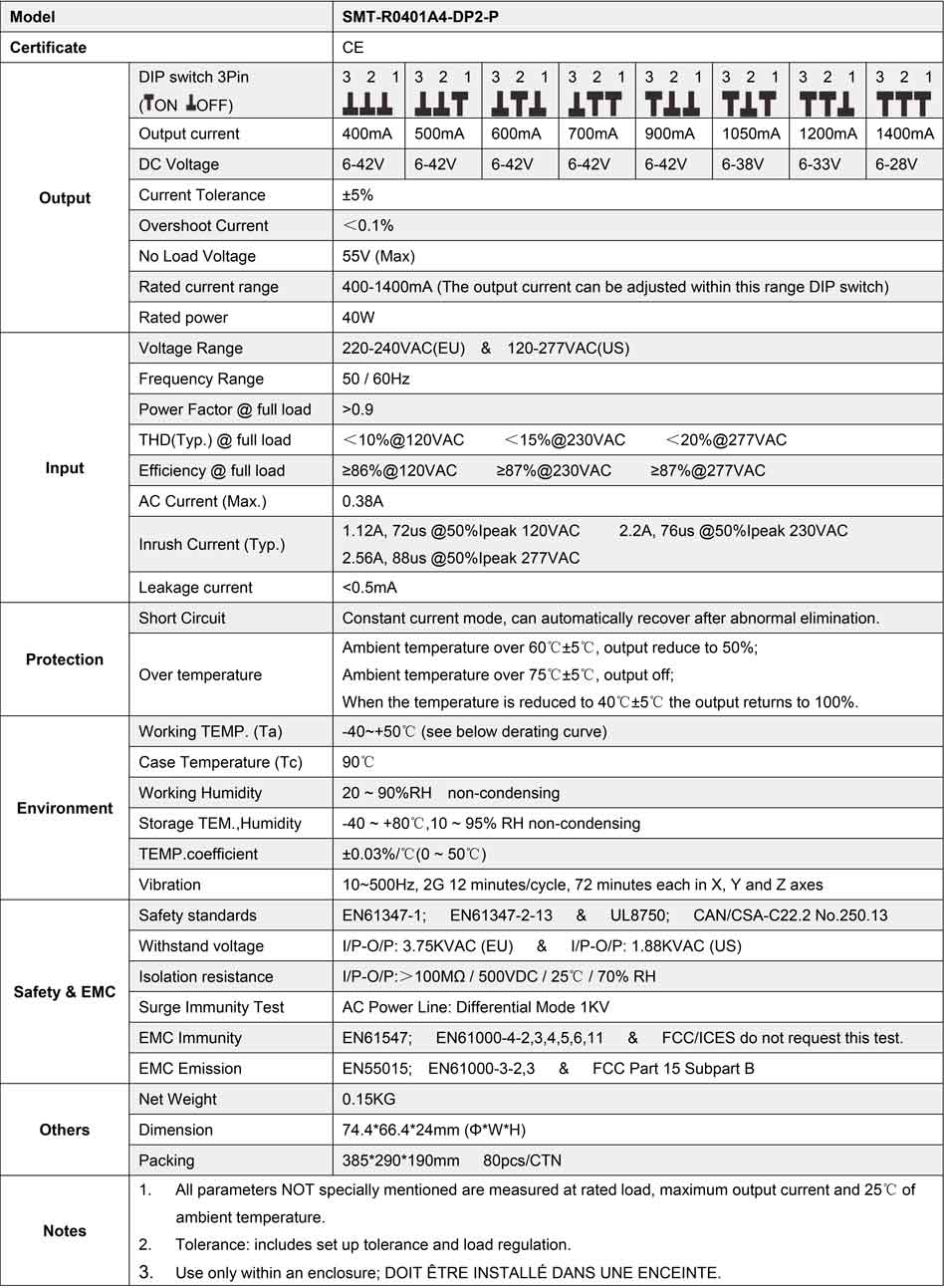

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
Dimming Operation
Connection Diagram for DALI Dimmer:
