CE ROHS ac dc 24v triac dimming led strip driver with dimmer
SMT-024-030VTSPH is 24v led driver. It is ultra thin triac dimmable led driver. Compatible with CLIPSAL leading edge and trailing edge dimmers. Slim line plastic case led driver for some projects with narrow space for led drivers. Acceptable to customized input and output cord.
Specification of 24v led driver :
|
model |
SMT-012-030VTSPH |
SMT-024-030VTSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±1% ±1% |
|
|
Input |
Voltage Range |
200-240 VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.98/277V |
|
|
|
Full Load Efficiency（Typ.） |
>79% |
>81% |
|
|
AC Current（Typ.） |
0.5A/100VAC / 0.13A/277VAC |
|
|
|
Inrush Current（Typ.） |
7A, 50%, 420us |
|
|
|
Leakage current |
<0.27mA/110VAC; ﹤0.25mA/277VAC |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
CE |
|
|
|
Withstand voltage |
I/P-O/P:2KVAC |
|
|
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC Part 15 B |
|
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
|
|
Others |
Weight |
0.35Kg |
|
|
|
Size |
260*32*20mm (L*W*H) |
|
|
|
packing |
50PCS/CTN
|
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| label |
 |
||
Our Services
1.All inquiries will be replied within 24 hours
2.Professional manufacturer,welcom to visit our website
3.OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification;
4.After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
5.High efficiency,long life span,reasonable&competetative price,fast lead time;
6.We have our engineer team, if you have any question about your LED applications, let us know freely.
Compatible Dimmer Type

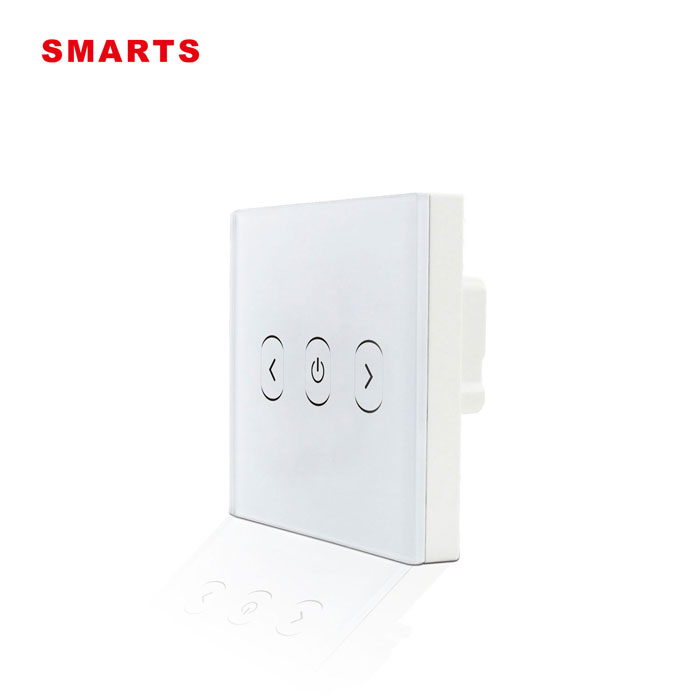

SMT250-T2 is CE triac dimmer. Input voltage 220V/240V, Frequency 50/60Hz, TRIAC dimmer with trailing edge, dimming operation: Touch pannel with three touch botton.
