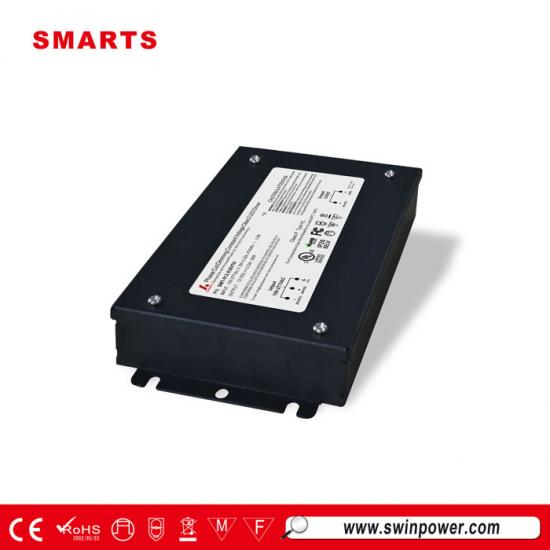

7 years warranty 30W power supply 12v 24v DC Isolated led driver for LED lighting
12v 30w led dimming driver the Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground.Output: Red is（DIM+）,Black is（DIM-）
Specification
|
model |
SMT-012-030VTH |
SMT-024-030VTH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±1% |
|
|
Input |
Voltage Range |
100-277 VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.97/277V |
|
|
|
Full Load Efficiency（Typ.） |
>82% |
>84% |
|
|
AC Current（Typ.） |
0.33A/110VAC / 0.13A/277VAC |
|
|
|
Leakage current |
<0.27mA/110VAC; ﹤0.25mA/277VAC |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|
|
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC Part 15 B |
|
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
|
|
Others |
Weight |
0.95Kg |
|
|
|
Size |
165*92*26mm (L*W*H) |
|
|
|
packing |
355*215*215mm / 10PCS/CTN |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
 |
||
 |
 |
 |
 |
Application
- 1.Indoor LED illuminating lights
- 2.LED Neon, LED urban Decoration
- 3.LED Lighting Advertising,LED Display
- 4.Safety Protection Apparatus
- 5.Telecommunications, Networks
- 6.Vehicle Lights, Controller Panels
FAQ
Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)
Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).
Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.
Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.
Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.
Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.
Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)
Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
