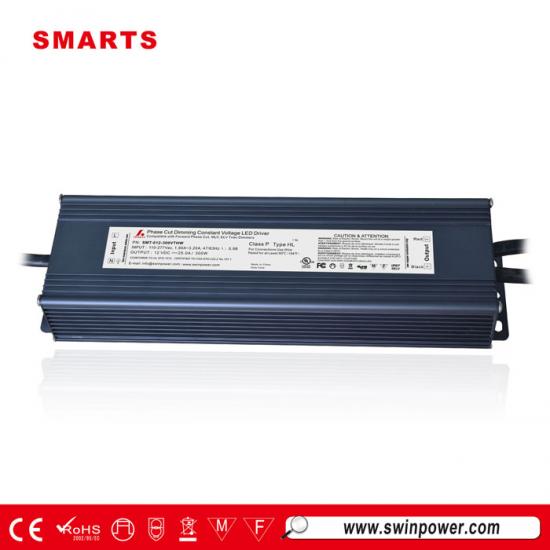

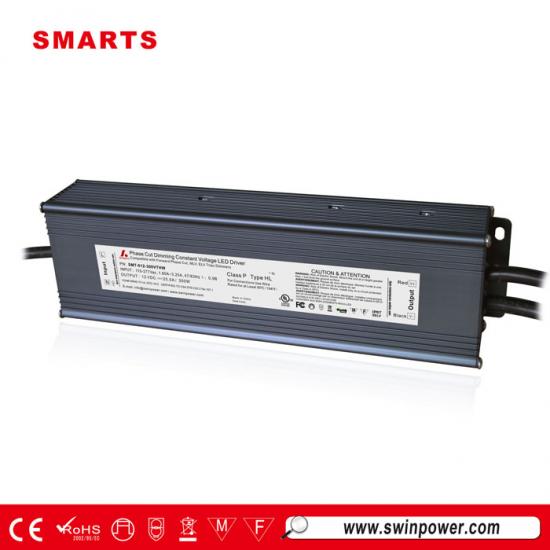

7 years warranty 300W Waterproof power supply 100V to 277V AC input Isolated led driver for LED lighting

UL listed 12v 24v 300w triac dimmable led driver ,the universal AC input:100-135vAC/170-265vAC. 277vAC dimmable led driver passed high,low temperature and waterproof testing.It can work normally in various harsh environments. It is often used in garages with SANSI LED LED floodlight

  • Brand:

    SMARTS
  • Item No.:

    SMT-012-300VTHW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12v
  • Output Current:

    25A
  • Working Mode:

    constant voltage
  • Dimming mode:

    triac dimming
  • Size:

    276*78*47mm
  • Certification:

    UL CE ROHS
Products description
7 years warranty 300W Waterproof power supply 100V to 277V AC input Isolated led driver for LED lighting


12v 24v 300w waterproof triac dimmable led driver takes about 7 years warranty,and it is have short circuit/overload temperature protection.It can protect the E26 E27 LED bulb of Rugged Grade Lighting and make it work normally.Through 100% full load burn-in test. It application with indoor & outdoor illuminating lights.


  Feture
300w waterproof dimmable led power supply
  1. Case material: plastic case
  2. Cooling by free air convection
  3. 100% full load burn-in test
  4.  High reliability
  5. Universal AC input (90~135VAC, 170~ 265VAC)
  6. designing standard: Ul1310 Class 2 power unit
  7. Cooling by nature
  8. Suitable for dry location
  9. Follow the global lighting safety regulations

  Specification



Model

SMT-012-300VTHW

SMT-024-300VTHW

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Voltage Tolerance

±0.5V



Load Regulation

±2%

±1%



Rated current

25.0A

12.5A



Rated power

300W

Input

Voltage Range

100-277VAC



Frequency Range

4763HZ



Power FactorTyp.@ full load

0.98@120VAC  0.97@277VAC

0.98@120VAC  0.97@277VAC



THDTyp.@ full load

<20%



Inrush Current Typ.

20A, 50%, 1.4ms



Full Load

EfficiencyTyp.

>83%

>83%



AC CurrentTyp.

3.4A@110VAC   1.76A    1.76A



Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed



Over load

≤120% constant current limiting, auto-recovery



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Over Current

≤1.4*I out

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz 2G 10min./1 cycleperiod for 60min.each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750



Withstand voltage

I/P-O/P: 3.00KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

Compliance to  FCC Part 15 B



EMC IMMUNITY

EN61000-4-2,3,4,5,6,11Surge 4KV

Others

Weight

1.75Kg



Size

276*78*47mm (L*W*H)



packaging

10PCS/CTN 385*335*200mm     20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated

  load and 25℃of ambient temperature.

2..Tolerance:includes set us tolerance,line regulation and load regulation.
