30w 0-10v dimmable 12volt Diode LED led drivers for led strips DI-DM-MW12V40W-0-10V
|
SMT-012-030VDHW is a range of 30W single output constant voltage dimmable 12volt led drivers, of IP20 plastic case non waterproof design for indoor use. it's also could replace Diode LED led drivers for led strips DI-DM-MW12V40W-0-10V. |
Specification
model
SMT-012-030VDHW
SMT-024-030VDHW
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
1.66Amp
0.83Amp
Rated power
30W
30W
Voltage Regulation
±0.5%
Load Regulation
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47~63HZ
Power Factor ( Typ.)
0.98@120VAC 0.98@277VAC
0.98@120VAC 0.98@277VAC
Full Load Efficiency(Typ.)
>88%
>89%
AC Current(Typ.)
0.53A/110VAC / 0.33A/277VAC
Leakage current
<0.50mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover aftercooling.
Environment
Working TEMP.
-40~+60℃
Working Humidity
20~95%RH,non-condensing
Storage TEM.,Humidity
-40~+80℃,10~95%RH
TEMP.coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z
Safety&EMC
Safety standards
Class P, Type HL, EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level (surge4KV)
Others
Weight
About 0.25Kg
Size
155*54*20mm (L*W*H)
packing
40PCS/CTN(L*W*H)
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |

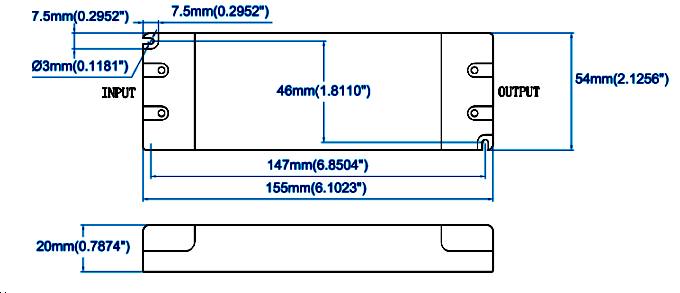

Mechanical Specification
Compatible Dimmer Type
SMARTS' dimmable class 2 driver could drive your led strip from 5-100%/9-100% dimming if you choose the 0-10v dimmer as below: Diode LED led drivers for led strips DI-DM-MW12V40W-0-10V also could match this 0-10v dimmer.
110-277V type 0-10V Dimmers recommendation
Brand
Model number (Dimmer)
Input Voltage Range
Dimming Range
Compatibility
Remark
LUTRON
DVSTV-WH
120-277VAC
9-100%
OK
Note: Dimmers with spin button (min. adjust dimming from 9-25%)
DVTV-WH
120-277VAC
9-100%
OK
Eaton
DF10P-C1
120-277VAC
5-100%
OK
Note: Dimmers with spin button
