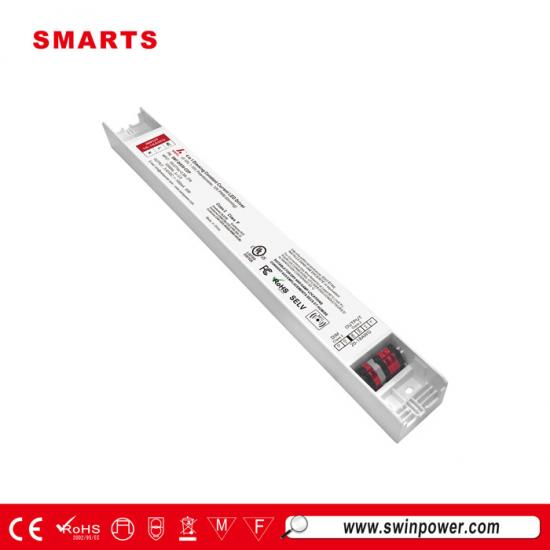

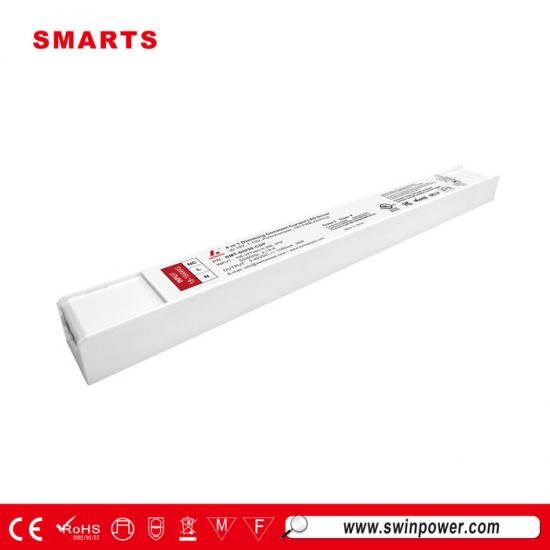

300ma-1050ma 30w dimmable constant current led driver power supply for led lights
This ultra-thin 0-10V dimmable LED driver features a built-in NFC smart programming module. Users can adjust the output current via the NFC app. Its unique push-to-connect terminal design makes installation quick and easy. It complies with global safety lighting regulations and comes with a 7-year warranty.
Specification
| Model | SMT-DI030-CDP | ||
| Certificate | ENEC / UL / cUL / FCC / SELV / CE /ROHS / Reach/ Class P / UKCA | ||
| Output | DC Voltage | 3-42V | |
| Current Regulation | ±2% | ||
| Current Ripple | <3% | ||
| Overshoot Current | <0.1% | ||
| Rated current | 300-1050mA(The output current can be adjusted arbitrarily within this range using NFC) | ||
| Rated power | 30W | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor (Typ.) @ full load | >0.98@120VAC >0.94@230VAC >0.9@277VAC | ||
| THD(Typ. ) @ full load | ≤12%@120VAC ≤14%@230VAC ≤19%@277VAC | ||
| Efficiency(Typ.) @ full load | >83%@120VAC >83%@230VAC >82%@277VAC | ||
| AC Current (Max.) | 0.39A | ||
| Inrush Current (Typ.) | 4.5A, 50%, 82us @120VAC; 9.5A, 50%, 78us @230VAC; 11.5A, 50%, 78us @277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | Constant current mode, can automatically recover after abnormal elimination | |
| Over Load | ≤110% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature |
Ambient temperature over 55℃±5℃ to reduce output to 50%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; Ambient temperature over 60℃±5℃ to reduce output to 0%; The ambient temperature drops to 45℃ ±5℃and automatically recovers; |
||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | |
| Working Humidity | 20 - 90%RH non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10-500Hz, 2G 12 minutes/cycle, X, Y, Z axes each 72 minutes | ||
| Safety & EMC | Safety standards | American regulations:UL8750 CAN/CSA-C22.2 No.250.13 (US);E495946 |
European regulations: EN61347-1 EN61347-2-13 |
| Withstand voltage | American regulations: I/P-O/P: 3.75KVac | European regulations: I/P-O/P: 3.75KVAC | |
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV | ||
| EMC Emission |
American regulations: FCC 47 CFR Part 15, Subpart B (US) |
European regulations: EN55015 EN 61000-3-3 |
|
| Others | Net Weight | 0.3KG | |
| Dimension | 324.7*34.8*24.1mm(L*W*H) | ||
| Packing | 340*270*195mm 50pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance and load regulation . | |||
|
|
 |
 |
 |

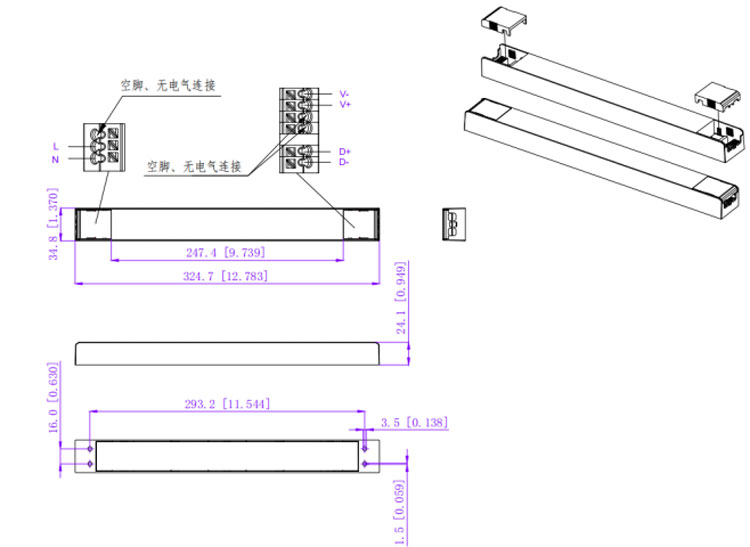

Mechanical Specification
| Note | LD30 | |
| American regulations | European regulations | |

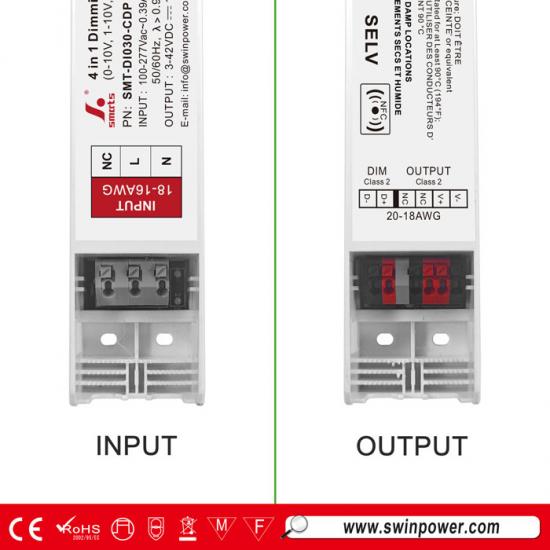

| Input wire (connecting terminal) | Cables with cross-sectional area of 18AWG can be used | Cables with cross-sectional area of 1.0mm² can be used |
| Output wire (connecting terminal) | Cables with cross sectional areas of 20AWG can be used | Cables with cross sectional areas of 0.51mm² can be used |
| Dimming wire (connecting terminal) | Cables with cross sectional areas of 20AWG can be used | Cables with cross sectional areas of 0.51mm² can be used |
| Remarks: | ||
Warm tips:
Recommended Max. Carrying Current (A) = wire diameter(mm2) x 10A/mm2.
For example: 1mm2output cable, Recommended Max. Carrying Current (A) = 1mm2 x 10A/mm2=10A
Dimming Connecting Diagram
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
NFC function：
For detailed operation, please refer to ProNFC app manual that request from the sales representative from Smarts Electronics.
1. Scan below QR code to download the ProNFC APP
Download Methods for ios device:
＊ ios users can download through the QRcode link (Figure 1)
＊ Search for the app name ProNFC in the App Store (Figure 2)
ProNFC APP
NFC Handheld devices
IOS Download
Android Download
Related Products
|
30W ultra-thin 0 10V dimmable LED power supply with constant current operation and built-in NFC smart programming module. Aluminum housing design for excellent heat dissipation. Suitable for outdoor installation in damp spaces. Backed by a 7-year warranty.
Model: SMT-DI030-CDA Input Voltage: 100-277Vac
Dimming Mode: triac dimmable
|
