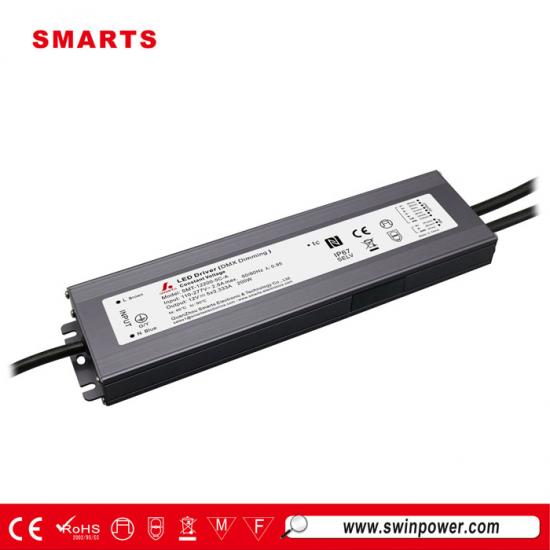

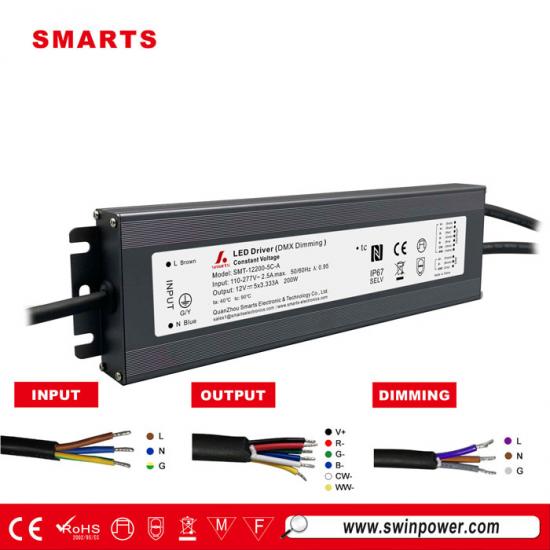

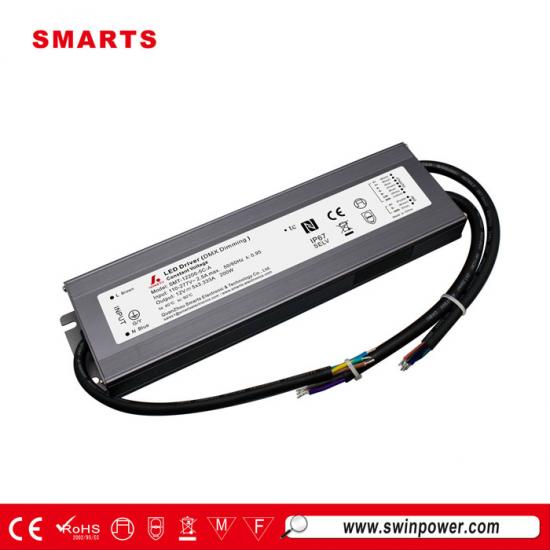

200W DMX512 1-5channel constant voltage led driver for strip light transformer
Our product power supply constant voltage dimmable led power supply are suitable for powering RGB color changing led light ribbons.
DMX512 dimmable led driver can choose 1-5 channel,besides, it can be used by dry, damp and wet location.
Specification
|
Model |
SMT-12200-XC-A |
SMT-24200-XC-A |
||
|
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW) |
||||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Rated current |
CH1+CH2+CH3+CH4+CH5=16.66A |
CH1+CH2+CH3+CH4+CH5=8.33A |
||
|
Rated power |
200W |
|||
|
Load Regulation |
±1% ±1% |
|||
|
Input |
Voltage Range |
110-277VAC |
||
|
Frequency Range |
47-63Hz |
|||
|
Power Factor（Typ.）@ full load |
PF≥0.98@230VAC |
|||
|
THD（Typ.）@ full load |
≤10% |
|||
|
Efficiency（Typ.）@ full load |
91.5%@230VAC 79% |
93%@230VAC
|
||
|
AC Current（Max.） |
2.5A |
2.5A |
||
|
Inrush Current （Typ.） |
48.5A (Twidth 164us measured at 50% I peak, COLD START, 230VAC) |
|||
|
Leakage current |
<0.50mA |
|||
|
Protection |
Short Circuit |
Hiccup mode ,recovers automatically after fault condition is removed |
||
|
Over Loading |
≤120% Hiccup mode ,recovers automatically after fault condition is removed |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
|
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
||
|
Working Humidity |
20~95%RH, non-condensing |
|||
|
Storage TEMP. Humidity |
-40~+80℃,10~95%RH |
|||
|
TEMP .coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) |
||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US) |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
EN55015 EN61000-3-2 ,3-3 (EU) & FCC Part 15 B (US) (≥60% loading) |
|||
|
EMC Immunity |
EN61000-4-2,3,4,5,6,11, EN61547 |
|||
|
Others |
Net Weight |
0.9KG |
||
|
Dimension |
277x78x25mm (LxWxH) |
|||
|
packing |
Carton size: 300*280*215mm; 20PCS/CTN |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
|||
 |
 |
 |
 |

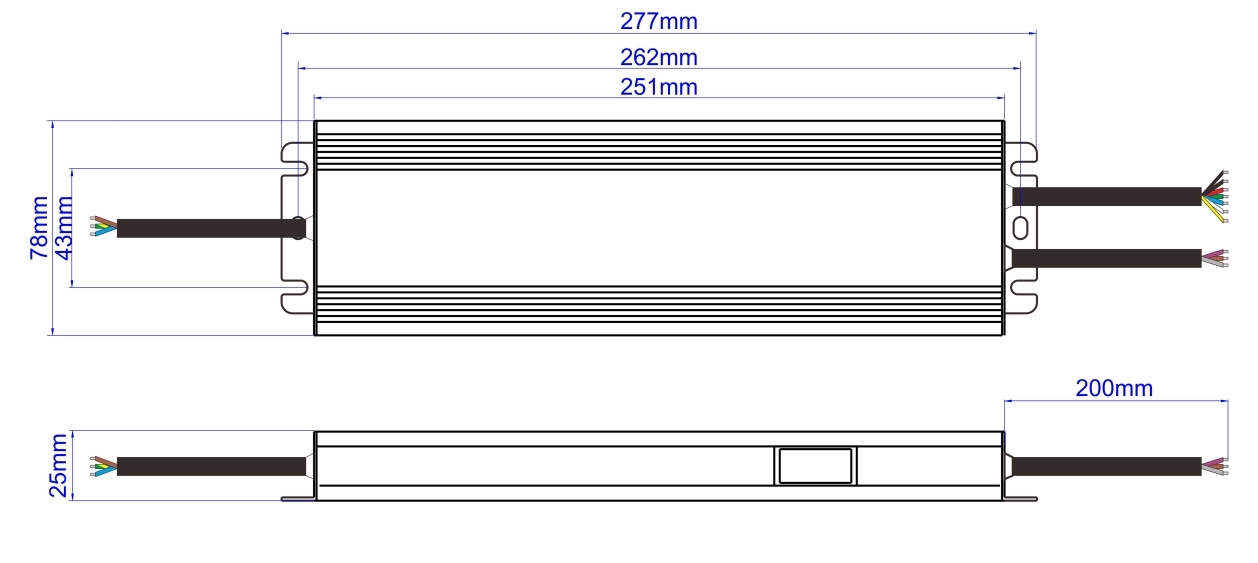

Mechanical Specification

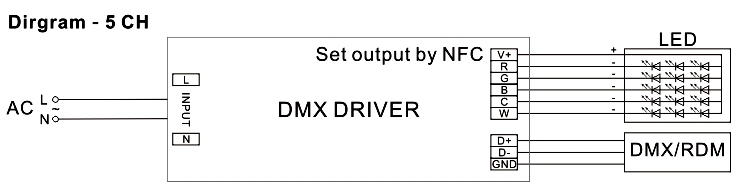

Connection Diagram
Compatible Lighting Type
Smart's strip light transformer is one with the UL FCC CE ROHS SAA Pending approved dimmable led driver.
They can matched well with ustellar 40ft 12M hand wave activated 6000K daylight white strip lights, best choice for your under cabinet lighting.
Related Products
|
|

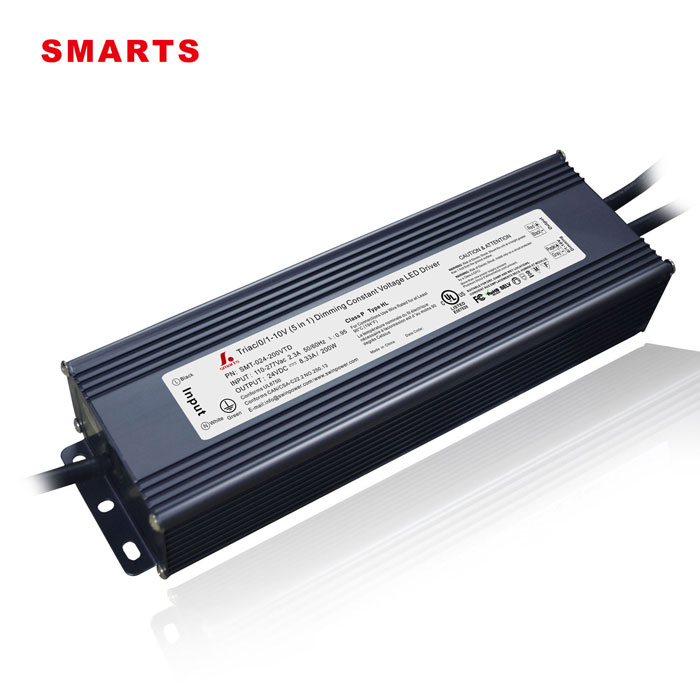

SMT-024-200VTD uses 5 in 1 technology for dimming light. Power supply constant voltage are dimmable constant voltage which can matched with light strips.
Input Voltage:100-277VAC
Output Voltage:12VDC 24VDC
Output Current: 16.67A; 8.33A
Working Mode: constant voltage
Dimming Mode: triac + 0-10v dimming Certification: UL cUL
|
|
|
|
