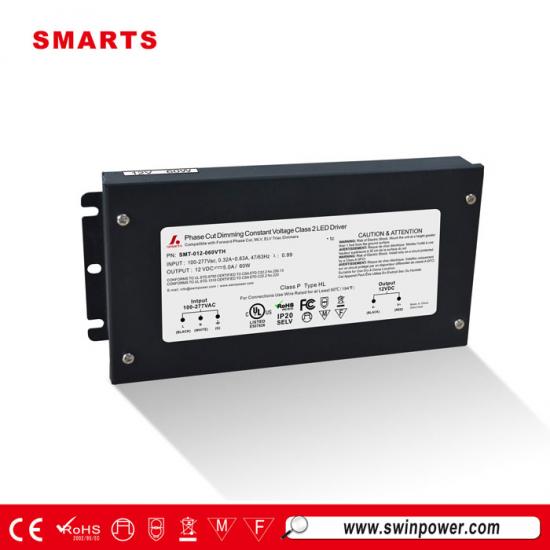

12v 60w mini triac dimmable led lighting power supply

12v 60w mini triac dimmable led driver belongs to the thin series of products, which can be matched with the LED modules of ledwatcher in lighting projects restricted by space.
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-060VTH
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12v dc
  • Output Current:

    5A
  • Working Mode:

    Constant voltage
  • Dimming mode:

    triac dimmable
  • Size:

    188*90*26mm
  • Certification:

    CE UL ROHS listed
Products description

12v 60w mini triac dimmable led lighting power supply


This triac dimmable led driver 12v is class-2 rated and has a maximum load of 60 watts. The 12-volt constant voltage driver has 7 years warranty for easy wire access and is encased in a durable, vented aluminum enclosure. Compatible with Lutron TRIAC dimmers.


  Specification


model

SMT-012-060VTH

SMT-024-060VTH

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Rated current

5.00A

2.50A

Load Regulation

±1%

Rated power

60W

60W

Input

Voltage Range

100-277V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.98@120VAC  0.95@277VAC

0.98@120VAC  0.95@277VAC



Full Load Efficiency(Typ.)

>83%

>83%

AC Current(Typ.)

0.9A/110VAC

Inrush Current (Typ.)

14A, 50%, 780us

Leakage current

<0.50mA

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over voltage

≦140VAC(90~135V) , ≦285VAC(170~277V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV)

Others

Weight

About 1.1Kg

Size

188*92*26mm(L*W*H)

packing

10PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

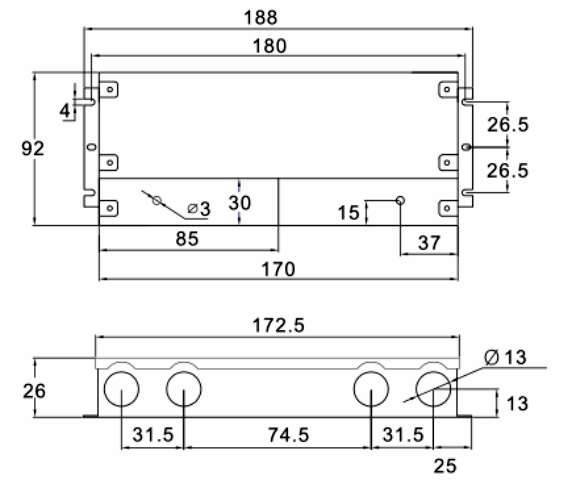

  Product size

mini led power supply


Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is(DIM+),Black is(DIM-)
Note: Any other requests we can customized.


  Dimming Operation


The 12v lighting power supply output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Connecting diagram


UL led driver 26w dimmable

  FAQ

1.  Is there a Tc point on the driver? And do you have a lifetime derating curve for case temperature? At 60 Watt load we are seeing a case temperature of 60°C.


Answer:  The TC point is right above on the led transformer when you test it. So far, we didn't show it on the lables. If it is necessary for you, we will show TC point on the next orders, ok?Enclosed please find the picture of  derating curve for your reference.


2. What is the wire gauge that fits into the ETL Triac Dimmable LED Driver?
Answer: 14-26 AWG

3. What is the difference between the 20w/45w UL and 24w/48w ETL model?
Answer:
-- when you install a 20w/45w UL led driver in your led light you should consider abbot min. 55% load limtation. If it less than 55%, the led light will have flick problem.  But the 20w/45w ETL model is no load limitation. You can load it in the led light 1-48w.
-- the height of 24w(20mm)/48w(24mm) is lower than 20w(28mm)/45w(34mm).


4. Just to confirm the drivers are Three In One Dimming Function Compatible With Leading-edge/Trailing-edge Dimmer, No Flicker? No Min load?
Answer: Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.


5. What is new about your SMT-012-060VTH compared to the one we currently sell at the same voltage?
Answer:
-- VTH series is the 7 years warranty Triac dimmable led driver with high PF>0.95, high effeciency>87%. Junction box is paired with led driver.
-- VTH series are full electric segment(100-277vac) which can used in North America, Europe and also for USA industrial voltage.
-- size of our SMT-012-060VTH(188*90*26mm) is smaller than the one SMT-012-060VT/MD-012-060VT(350*77*37mm) you current sell.

Leave a message
To know more our LED drivers/power supplies/LED transformers, pl. send email to us, we will reaply you soon.
