120VAC 277VAC 150W 180W LED Power Supply Manufacturers for Christmas Tree
Swinpower is the 180w led power supply manufacturers who offers a highly affordable and reliable hard wired driver.

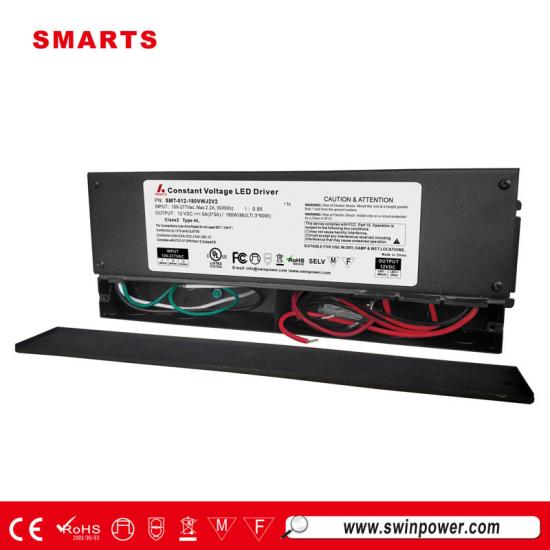

150w 180w constant voltage led power supply that you can safely put outdoors! It is your best option to power any LED Lights with its robust cover and waterproof connections and cables! It also includes an installation bracket on each side to allow screwing it to a wall for a sturdier installation.
|
Model |
SMT-012-180VWJ2 (1.0 version) SMT-012-180VWJ2V2 (2.0 version) SMT-012-180VWJ2WV2 (3.0 version) |
SMT-024-192VWJ2 (1.0 version) SMT-024-192VWJ2V2 (2.0 version) SMT-024-192VWJ2WV2 (3.0 version) |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Load Regulation |
±1% ±1% |
±1%
|
||
|
Rated current |
3*5A |
2*4A |
||
|
Rated power |
180W(3*60W) |
192W (2*96W) |
||
|
Input |
Voltage Range |
100-277VAC |
||
|
Frequency Range |
47-63Hz |
|||
|
Power Factor(Typ.)@ full load |
0.99@120VAC 0.94@277VAC |
0.99@120VAC 0.94@277VAC |
||
|
THD（Typ.）@ full load |
<20% |
<20% |
||
|
Efficiency(Typ.)@ full load |
87%@120V 89%@277VAC |
88%@120V 90%@277VAC |
||
|
AC Current（Max.） |
2.2A@100VAC |
2.3A@100VAC |
||
|
Inrush Current （Typ.） |
19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC 12.4A (twidth=430us) @277VAC |
|||
|
Leakage current |
<0.50mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
||
|
Over Loading |
≤120% Hiccup mode ,recovers automatically after fault condition is removed |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
||
|
Working Humidity |
20～90%RH, non-condensing |
|||
|
Storage TEMP. Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP .coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|||
|
Safety& EMC |
Safety standards |
UL8750+UL1310 |
||
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
|||
|
Others |
Weight |
2.0Kg (1.0 version) |
||
|
Size |
1.0 version:278*108*46mm / 2.0 version:278*110*45mm 3.0 version:278*130*45mm |
|||
|
packaging |
285*275*245mm/10pcs /CTN / G.W.:22.10KG/CTN (1.0 version) 385*335*200mm /20PCS/CTN |
|||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
|||
 |
 |
 |
 |
Mechanical Specification
1.0 version: SMT-012-180VWJ2 / SMT-024-192VWJ2
2.0 version: SMT-012-180VWJ2V2 / SMT-024-192VWJ2V2
3.0 version: SMT-012-180VWJ2WV2 / SMT-024-192VWJ2WV2
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
※Class 2 standard output terminal. Three groups of cables for SMT-012-180VWJ2, SMT-012-180VWJ2V2, SMT-012-180VWJ2WV2,; Two groups for SMT-024-192VWJ2,SMT-024-192VWJ2V2,SMT-024-192VWJ2WV2
Derating Curve
※To extend their life, please refer to the Derating Curve and derate according to the temperature.
Connecting Diagram
Compatible LED LightingType
Swinpower's led power supply 120v have been tested for compatibility dozens of Narrow Rigid LED Light Bar w/ High Power 3-Chip SMD LEDs - 690 Lumens.such as RLBN-CW30X3SMD, RLBN-NW30X3SMD and RLBN-WW30X3SMD from superbrightleds in USA.
 |
 |
