277vac 12v 24 volt 300w outdoor class 2 led light power supply led drivers for strip lights

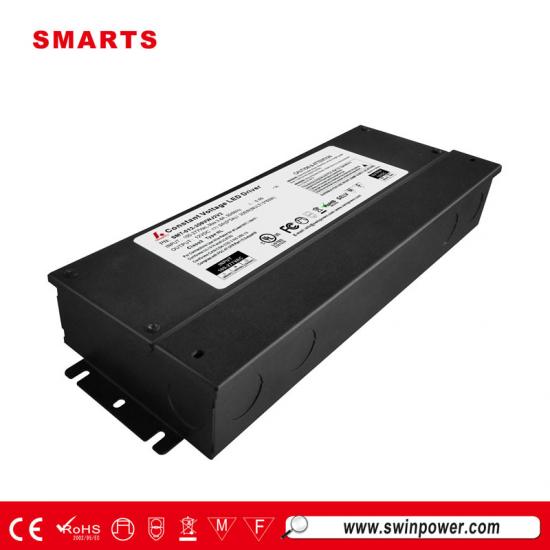

Model SMT-012-300VWJV2 is a 277vac class 2 power supply 12V 5*5A 300W, class 2 multi-output version competitive than Magnitude SKU#: T300L12DC.
Specification:
model
SMT-012-300VWJ2V2
SMT-024-288VWJ2V2
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
5*5A
3*4A
Load Regulation
±2%
Rated power
300W
288W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120V ;0.98@230V ;0.98@277V
0.99@120V ; 0.98@230V ;0.98@277V
Full Load Efficiency（Typ.）
85%@120V, 89%@230V ,89%@277V
88%@120V,92%@230V,92%@277V
AC Current（Typ.）
0.9A/110VAC
Inrush Current （Typ.）
20A,50% ,1.9ms@120V ;60A,50% 130us@230V ; 35A,50% 1.9ms@277V
Leakage current
<0.50mA
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Over voltage
≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Others
Weight
About 2.40Kg
Size
301*110*46mm (L*W*H)
packing
10PCS/CTN （L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”t wisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |
Dimension:
Compatible LED light type
This 300W led drivers for strip lights is 7 years warranty,conforms to UL8750, class 2 standard, work well with FlEXFIRELEDS Outdoor (IP65) UltraBright Accent Series LED Strip Light SKU: IP65-UB-AT1.
