US EU 12V 3A 24v1.5A wall mount adapter ac dc power supply 36w
Model SMT-012-036VP is a 36w Power supply, SMT-024-036VP is also a 24V 36W AC DC wall adapter, work well with Arquiluz led strips 12v.
Specification
model
SMT-012-036VP
SMT-024-036VP
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
3A
1.5A
Load Regulation
±1%
Rated power
36W
36W
Input
Voltage Range
100-240V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
80%@120V, 80%@230V ,89%@277V
80%@120V,80%@230V
Full Load Efficiency（Typ.）
0.7
0.7
AC Current（Typ.）
500MA MAX.
Inrush Current （Typ.）
7A, 50%, 420us @120VAC;
Ripple
<200mV
Over temperature
90℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode, recovers automatically after fault condition
Over voltage
≦265VAC
Environment
Working TEMP.
0～+40℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-20～+60℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL60950-1,EN60950-1,GB4943-2001
Withstand voltage
I/P-O/P:2KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Hi-Pot
AC3000Vrms/50Hz,5mA max
Others
Weight
About 0.12Kg
Size
93.58*46.57*33.10mm (L*W*H)
packing
100PCS/CTN （L*W*H）
is removed.
 |
 |
 |
 |

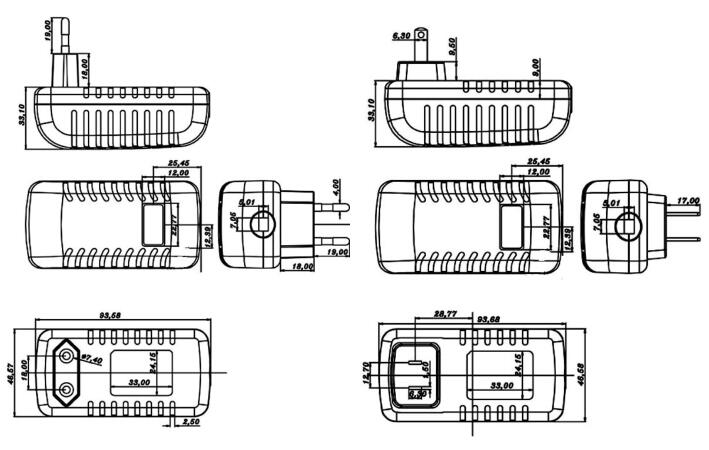

Dimension
Compatible LED light type

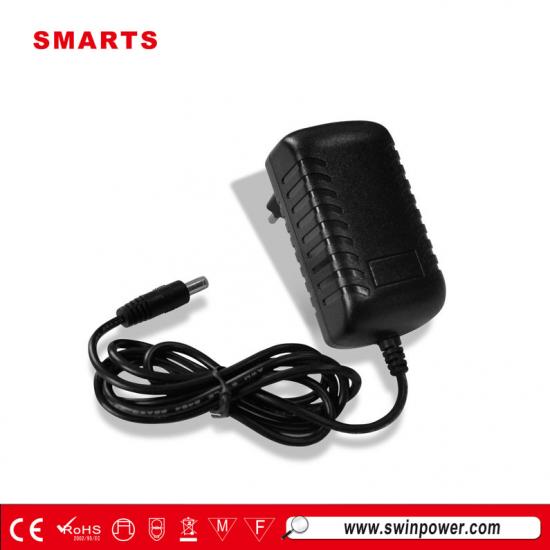

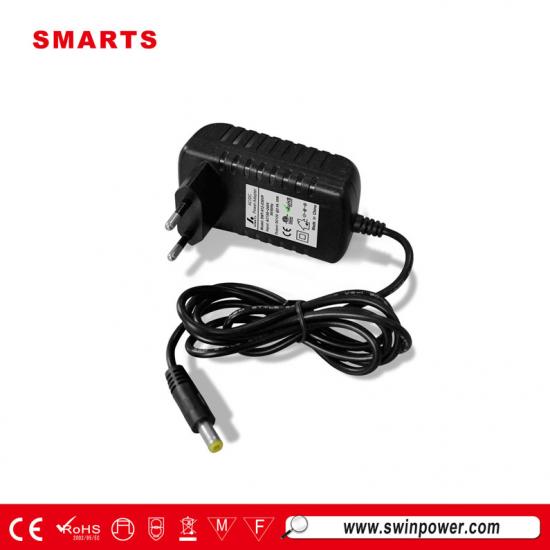

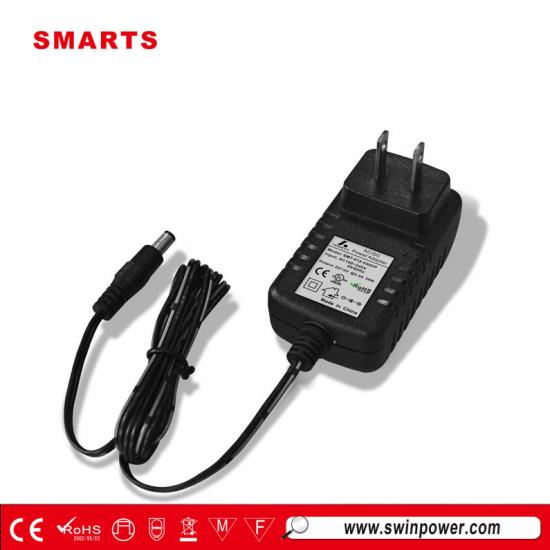

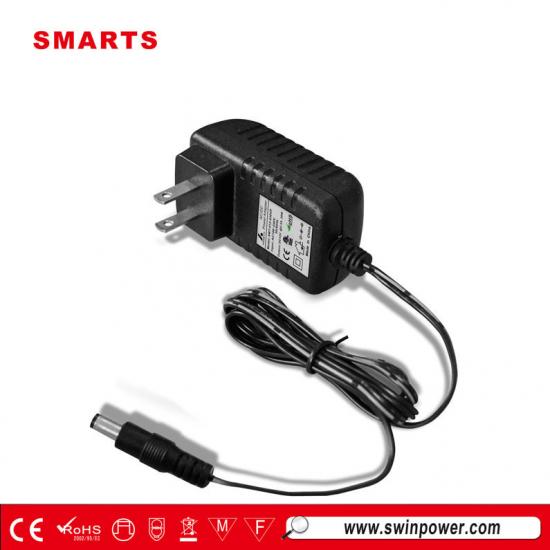

12V 3A adapter are wall mounted 100-240vac to 12vdc switching power supply, 2 years warranty,US and EU plug avaliable, work well with EOS lights led strip.
Related Products
|

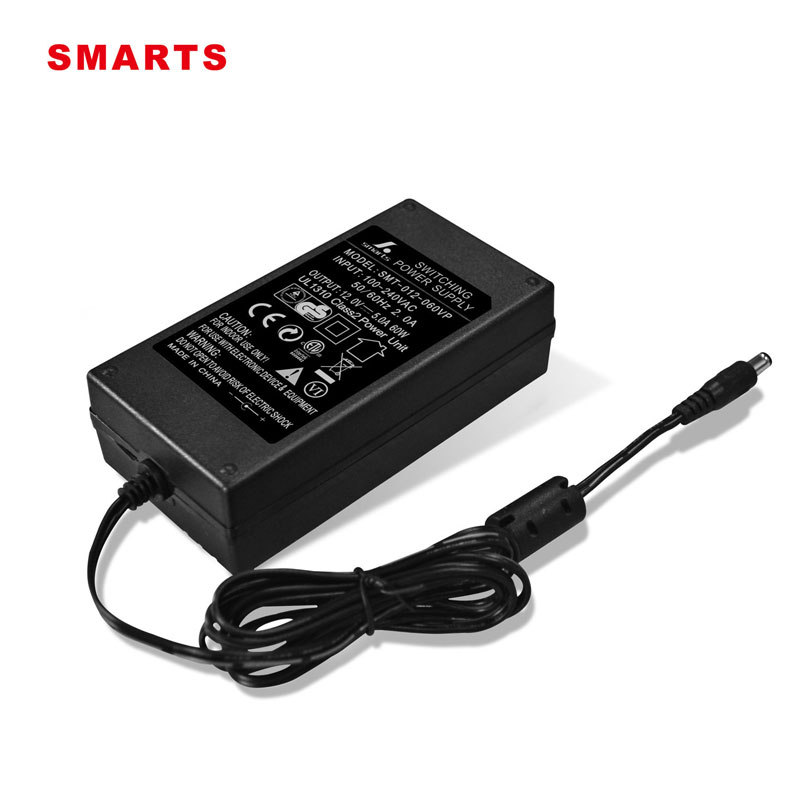

60w 12v adapter is desktop type adapter with ETL CE rohs approval, 2 pin AC plug cord.
Model：SMT-012-060VP input voltage：100~240V AC Efficiency > 80% PFC:93% Certification: ETL,CE, ROHS Weight：0.12Kg/pcs |
|
|

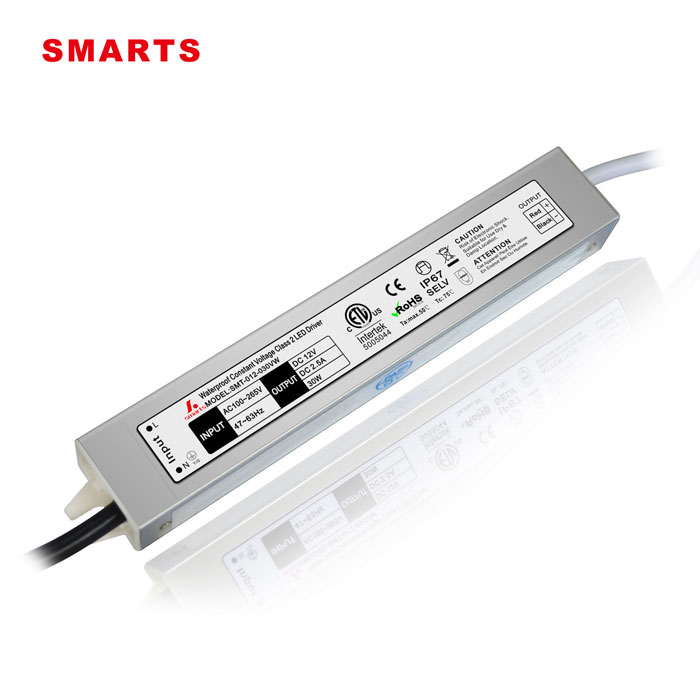

12V 36W power supply is Aluminum case IP67 waterproof, 2 years warranty, slim case design.
