class ii 36w 48w 60w 72w LED power supply 12v 24v 5a 6a manufacturer

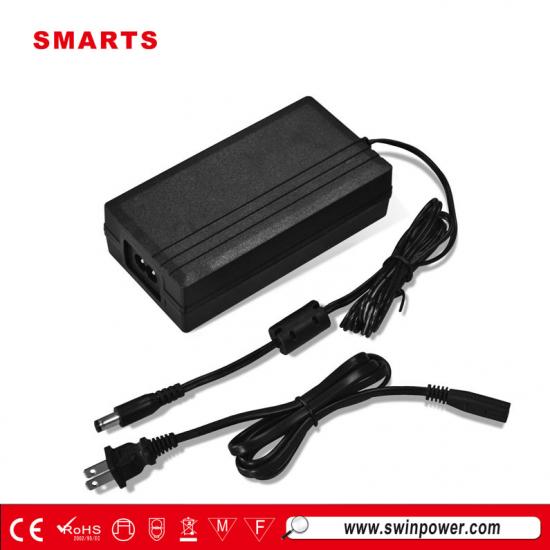

This 36w 48w 60w 72w LED power supply is specially designed to power a short length LED Strip. Use it to connect the length of LED Strip that you have remaining once your main project is completed. This power supply is compatible with both RGB and Single Color LED Strips sold at LED Montreal. Simply add a wired controller to your LED Strip in order to get an affordable extra LED lighting. Compact and easy to install, it connects directly into a standard 110V outlet and 220V outlet.
Specifications
|
model |
output voltage |
Current |
power |
Tol. |
R&N |
Effi. |
|
SMT-012-060VP |
12V |
5.0A |
60W |
±3% |
80mV |
>82% |
|
SMT-024-060VP |
24V |
2.5A |
60W |
±2% |
180mV |
>82% |
 |
 |
 |
 |
Output Requirements
** Output Voltage and Current
|
Output |
Output Regulation(V) |
No Load |
Rating Load (A) |
|
|
Voltage(V) |
Minimum |
Maximum |
Current(A) |
Continuous Current(A) |
|
12V |
11.4V |
12.6V |
0A |
5.0A |
** Output Voltage Regulation
The total output voltage regulation shall be +/-5%,including the effects of line voltage variations,load current,ripple and noise,and the AC component of the load current.
** Output Voltage Ripple
The switching power supply shall not exceed the following limits in the indicated voltage for 60Hz or 50Hz ripple,switching frequency ripple and noise measured with 20MHz width.
Ripple and Noise:50/60Hz Ripple + Switching Ripple and Noise
|
Output |
Ripple |
|
0-5.0A |
200mV |
Ripple and Noise are measured at the end of output cables which are added a
0.1uF(104) Ceramic capacitor and a 22uF Electrolytic capacitor.
Efficiency
When 120VAC line input voltage (100-240 VAC),the efficiency shall be >87% at rating load.
Insulation Resistance
Primary to secondary: 10MΩ min at 500VDC.
Protection
** Short Circuit Protection
If short circuit occurs,all the output should be protected. After the fault, the adapter automatically recovers.
** Over Shoot
The Output over shoot at turn-on shall not exceed 10% of normal voltage value with or without the load connected.
** Start-up time
The start-up time is less than 2 second.
** Burn-in
The burn-in test will be performed at least 4 hours at centigrade degrees under full load Condition.
Referenced Standard
** EMI Standards
Reference EN50082-1,EN55022-B,GB-17625.1-2003, GB-9254-1998 EN55013 EN55020
** Safety Standards
The adapter shall be meet certified with the following safety standards.
EN61347,GB4943-2001, J55013,J55020,J60065
DC Output Cable
Wire : (Optional) SPT-1 18AWG*2C L=1200mm Color: Black (.)
Plug : (Optional) 5.5 x 2.1x 10mm
Mechanical Features
** Dimension(Size)
Length: 119.5mm
Width: 62.5mm
Height: 33.5mm
** Weight
The Power Supply unit : 240±10g
Bending Test
Fix the power supply and its plug, apply a load of 200g to the other end, turn the cable by +/-60℃ carry out this process 1000 times, at the rate of 20 times per minutes. No abnormality in mechanical and electrical Characteristic and disconnection within 30% after the test.
Diagram Data:( See to attach the diagram)
** APPEARANCE DRAWING:(Unit:mm)
** NAME PLATE: (Unit:mm)
NOTE: MATERIAL:POLYESTER COATIONG:0.10+/-0.03mm
** DIMENSION OF OUTPUT PLUG & DC CORD:(Unit:mm)
Remarks:
1)SPT-1 18AWG*2C L=1200mm Color: Black (.)
2) PLUG:5.5 x 2.1 x 10mm
Compatible Lighting Type
It is very important to read the description for the LED strips you will be using with to make sure you know how many amps you need for each meter of LED strip. Overloading the power supply will damage it. LED TAPES from klusdesign can matched with our 12v led power supply 36w 48w 60w 72w
 |
 |
Related Products
|
|
Since LED lighting uses low voltage, 24VDC 72w LED power supply are an important part in many lamps and fixtures.These 24VDC switching power supply adapters plug straight into your wall, extending to the switching box that you can place on the floor or hide on top or under a desk or table.
Mode：SMT-024-072VP intput voltage：100~240VAC Efficiency > 82% Size：119.5*62.5*33.5mm （L*W*H） Weight：0.5Kg/pcs |
|
|
|
