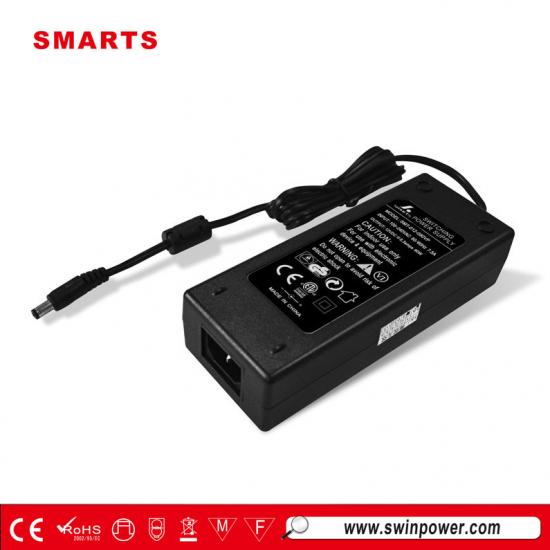

Universal Switch Mode power supply 12v 7.5A 24v 90w 3 Pin plug Power Adapter

SMT-012-090VP is 12v 90w adapter, SMT-024-090VP for 24v 3.75A power supply,  competitive than XINYUAN power adapter 12v desktop.


  • Brand:

    SMARTS
  • Item No.:

    SMT-012-090VP
  • Input Voltage:

    100-240vac
  • Output Voltage:

    12v / 24v
  • Output Current:

    7.5A / 3.75A
  • Working Mode:

    constant voltage
  • Dimming mode:

    Non dimming
  • Size:

    152.5*60*35mm (L*W*H)
  • Certification:

    ETL,CE, ROHS appr.
Products description

Universal Switch Mode power supply 12v 7.5A 24v 90w 3 Pin plug Power Adapter


Model SMT-012-090VP is a desktop 90w Power adapter,  SMT-024-090VP is also a 24V 90W switch mode power supply. work with SONY CCTV camera.


  Specification


model

SMT-012-090VP

SMT-024-090VP

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Rated current

7.5A

3.75A

Load Regulation

±1%

Rated power

90W

90W

Input

Voltage Range

100-240V AC

Frequency Range

4763HZ

Power Factor ( Typ.

80%@120V, 80%@230V ,89%@277V

80%@120V,80%@230V


Full Load EfficiencyTyp.

0.7

0.7

AC CurrentTyp.

500MA MAX.

Inrush Current Typ.

7A, 50%, 420us @120VAC;

Ripple

<200mV

Over temperature

90℃±10℃ shut down o/p voltage, automatically recover after cooling.

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode, recovers automatically after fault condition
is removed.

Over voltage

 ≦265VAC

Environment

Working TEMP.

0~+40℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-20+60℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL60950-1,EN60950-1,GB4943-2001

Withstand voltage

I/P-O/P:2KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Hi-Pot

AC3000Vrms/50Hz,5mA max

Others

Weight

About 0.40Kg

Size

152.5*60*35mm (L*W*H)

packing

48PCS/CTN L*W*H

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

  Dimension

90w Power adapter

90w Power adapter

90w Power adapter


  Compatible LED light type


Switch Mode power supply 12v are wall mounted plug in power supply, plastic IP20 version for single color leds, CCTVE camerica and some devices that are 12v, work well with AGILIGHT led module 5050.

Switch Mode power supply 12v


  Related Products


 6w 12v adapter

6w 12v adapter is switching mode power supply plug in ac dc universal use in EU, US market.


Model:SMT-012-006VP

input voltage:100~240V AC

Efficiency > 80%    PFC:93%

Certification: ETL,CE, ROHS

Weight:0.12Kg/pcs

 12V 96W power supply IP67


12V 96W power supply IP67 is PFC 0.95, efficency 88%, 3 years warranty led driver, ETL Listed.


Model:SMT-012-096VW

Dimming Mode : Non dimming

Size:180*69*43mm(L*W*H)

Weight: 0.9Kg/pcs

Certification: ETL FCC CE ROHS

Inrush Current (Typ.): 20A, 50%, 1.6ms

Leave a message
To know more our LED drivers/power supplies/LED transformers, pl. send email to us, we will reaply you soon.
Categories
Related Product
100W power supply

ETL CE ROHS approval 12v 100W power supply UL plug power adapter

Regarding the UL power adapter,the Output over shoot at turn-on shall not exceed 10% of normal voltage value with or without the load connected.The start-up time is less than 2 second.
ac/dc Power Adapter

ac/dc Power Adapter Charger UK US EU Wall Plug 12V 24V 1.5A Power Adapter

If the ac/dc Power Adapter short circuit occurs,all the output should be protected. After the fault, the adapter automatically recovers.
24w power adapter

switching power supply 12v 2A 24w power adapter with ETL CE ROHS

The switching power supply shall not exceed the following limits in the indicated voltage for 60Hz or 50Hz ripple,switching frequency ripple and noise measured with 20MHz width.
switching power adapter

UL EU UK Plug Universal 100-240VAC to 12VDC 30W switching power adapter

As for the 30w power adapter,the input requirement is: 1 Operating range: 90-264VAC 2 Rated Input Voltage :100-240VAC 3 Input Frequency Range: 50/60Hz +/-3Hz 4 Input Current: 0.22A max
power adapter 12v/24v

SMARTS power adapter 12v/24v 72W AC/DC power supply FOR 2 years warranty

As for the power adapter 12v/24v, the Input Voltage range is 100-240VAC, the Input Frequency Range is 50/60Hz +/-3Hz.

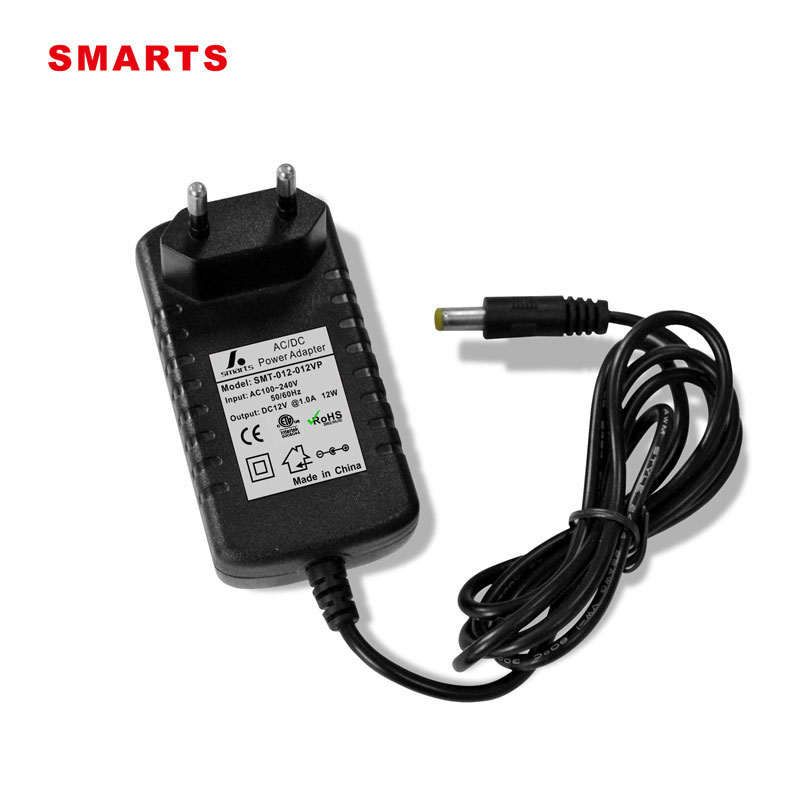

AC to DC adapter
