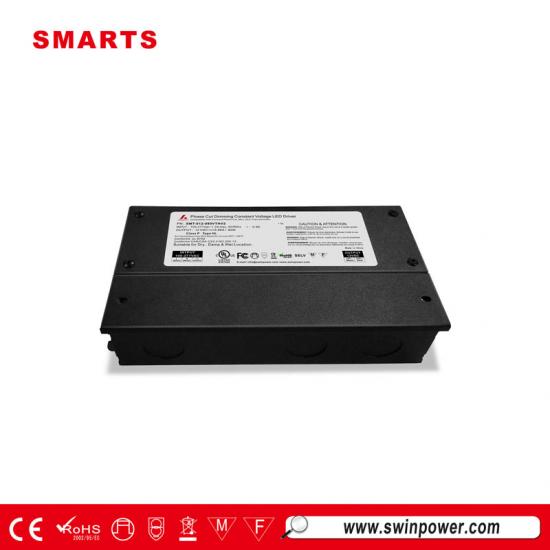

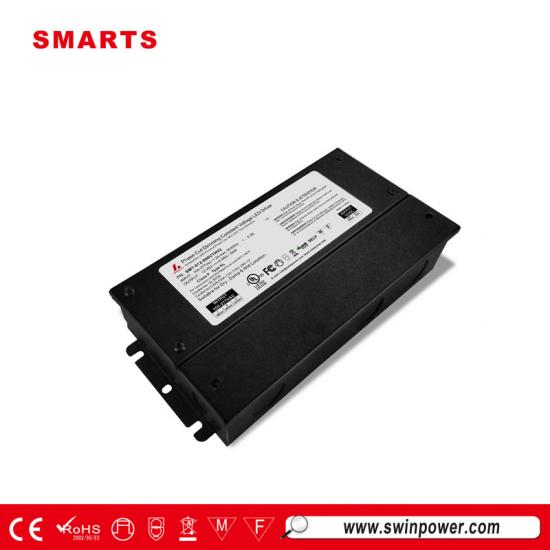

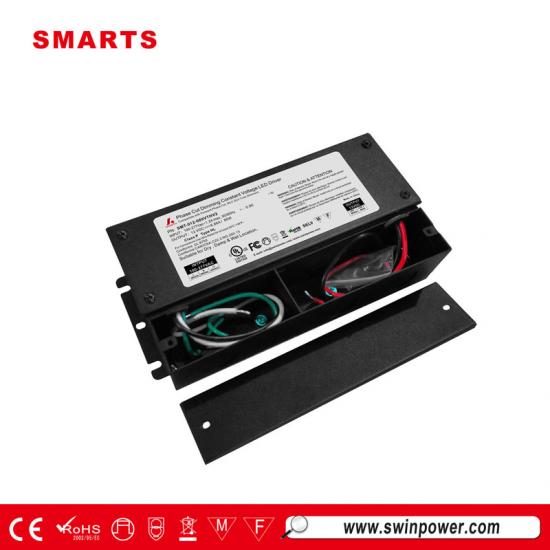

UL listed enclosure 110v 277v led strip light dimmable 12v power supply 80w
SMT-012-080VTHV2 is a 12v 80w led dimmable power supply, competiable with both leading and trialing edge dimmers, dimming range 0-100%, mininum load limitation with about 10% load, Dim well with led strips of klusdesign, RGB, Downlight etc..
Specification
|
model |
SMT-012-080VTHV2 |
SMT-024-080VTHV2 |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
6.66A |
3.33A |
|
|
Load Regulation |
±1% |
||
|
Rated power |
80W |
80W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
|
Full Load Efficiency（Typ.） |
>83% |
>83% |
|
AC Current（Typ.） |
0.9A/110VAC |
||
|
Inrush Current （Typ.） |
14A, 50%, 780us |
||
|
Leakage current |
<0.50mA |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Over voltage |
≦140VAC(90~135V) , ≦285VAC(170~277V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level （surge4KV） |
||
|
Others |
Weight |
About 1.3Kg |
|
|
Size |
2.0 version: 220*94.5*40mm(L*W*H) |
||
|
packing |
10PCS/CTN （L*W*H） |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”t wisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
 |
 |
 |
 |

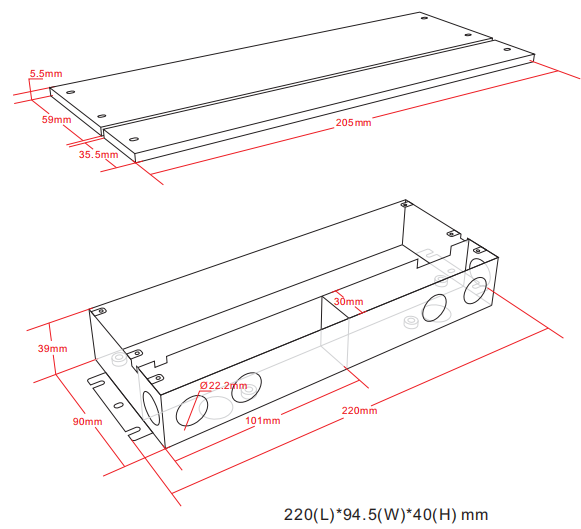

Dimension

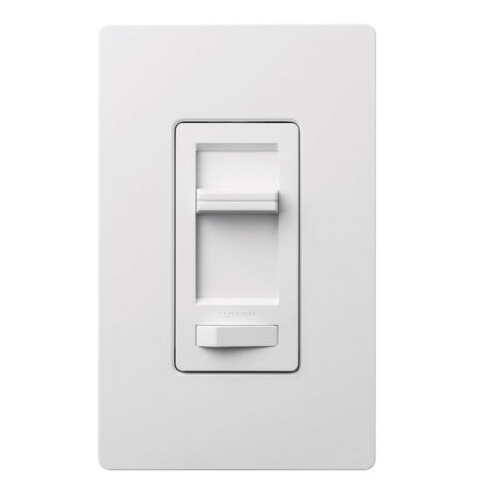

Compatible Dimmer Type
For the dimmers to compatible with our UL 12v 80w led dimmable power supply, Actually most of the dimmers in market are all able to work with our products, to select a right dimmers, kindly note the Max. wattage of the dimmers. See below our recommend dimmer list:

|
|
Related Products
|

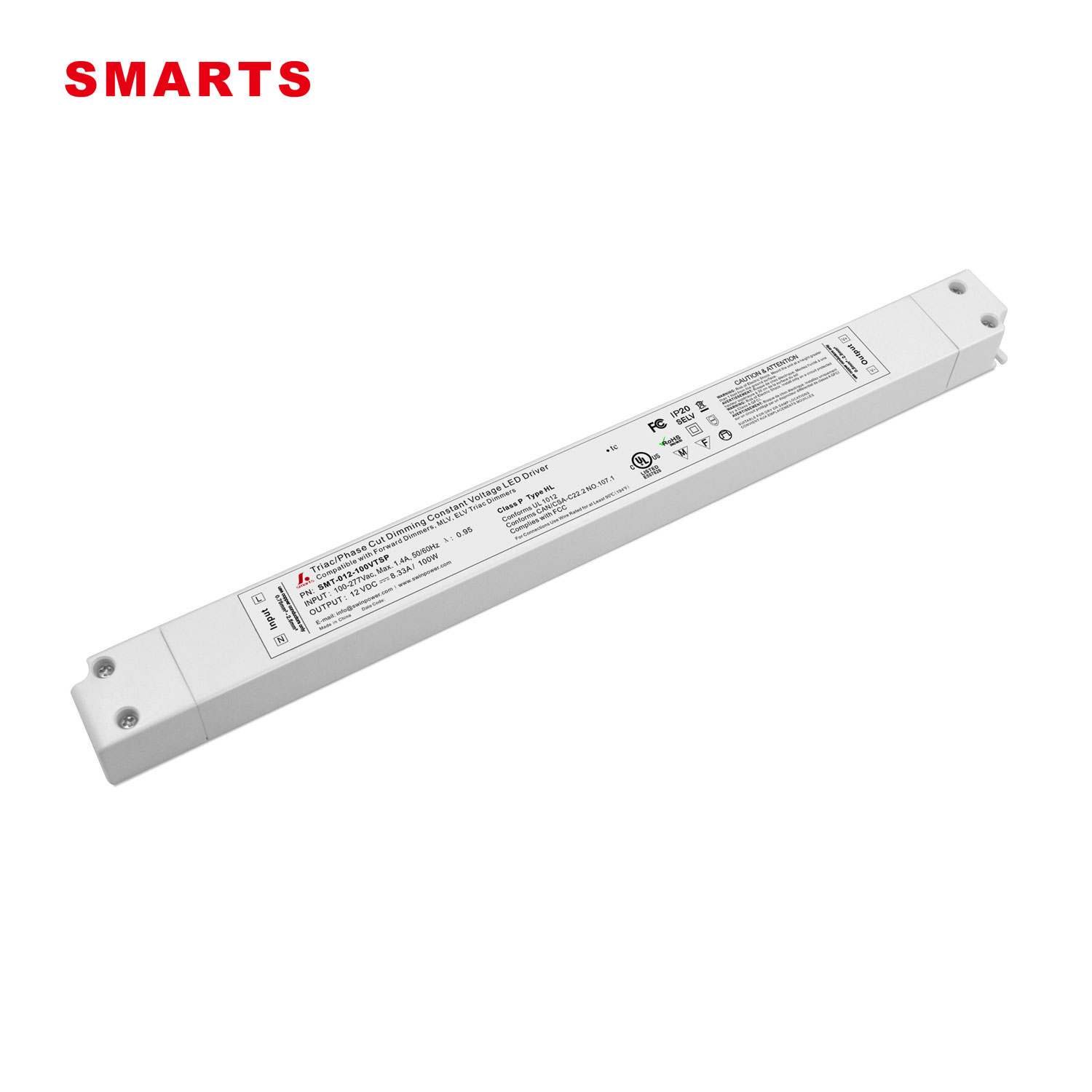

slim 12v power supply triac dimmable 100w with lastic IP20 rated, Max. height 23mm, slimline type. 7 years warranty.
Model：SMT-012-100VTSP
Dimming Mode : triac dimming intput voltage：100~277V AC Efficiency > 87% PFC:93% Size：330*32*23mm （L*W*H） Weight：0.40Kg/pcs |
|
|
|

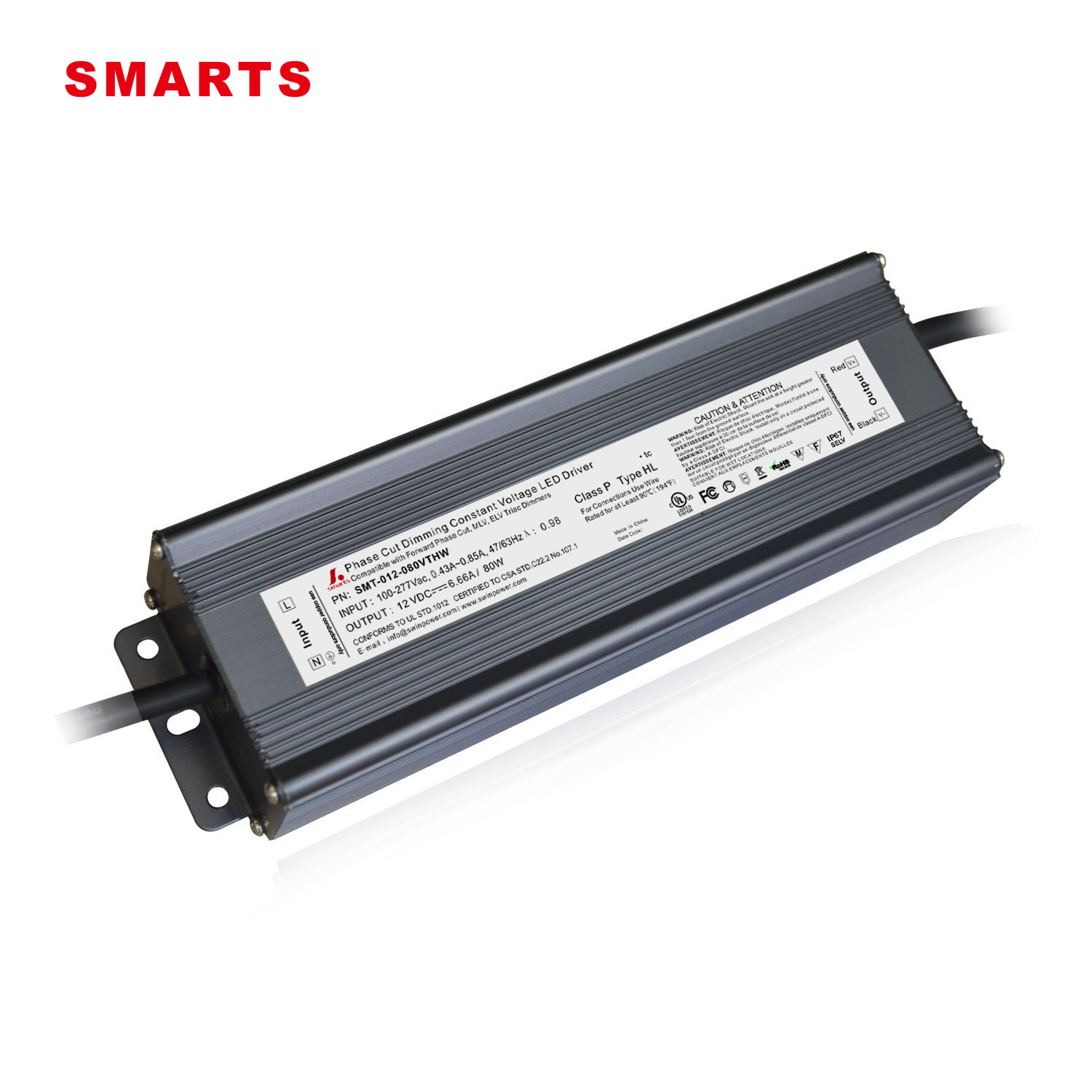

UL listed 12v power supply 80w phase cut dimming, hardwire type, without junction box, aluminum case, accept custom OEM order.
